Type U rotating screw jack with travel nut screw jacks system

Traveling Nut Design ( Rotating )

This design incorporates a lifting screw keyed to the worm gear as a single unit, forcing the lifting screw to rotate in the gearbox, but not translate. A traveling nut, running onthe rotating screw generates linear motion for the attached load. This type of jack is ideal for applications that cannot accommodate a screw protection tube.

  • Payment:

    TT
  • Product origin:

    ShanDong of China
  • Color:

    customize
  • Shipping port:

    Tianjin or Qingdao
  • Lead Time:

    25/35
follow us :
  • Product Details

  • Photo

Keyed(Anti-rotation) jacks

For machine screw jacks-A key, fixed to the jack housing and inserted into a keyway milled into the length of the lifting screw forces the lifting screw to translate without rotating( The keyway in the screw causes greater than normal wear on the internal drive sleeve).For ball screw jacks-Anti-rotation is accomplished by a square guide attached to the screw translating inside a square stem cover attached to the jack.


Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
ACME SCREW JACK SYSTEM
Worm Gear Screw Jack Lifting Platform

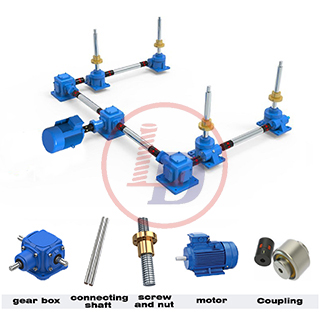

Screw jack lifting table or Platform structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shaftings.
worm screw jack lift table
High Efficiency Worm Gear Screw Jack Systems
Screw jack lift system structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shaftings.
 Automatic Screw Jack Lift System
Good Performance Screw Jack Lift System
Screw jack lift system structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shaftings.  Screw Jack System Features: 1. Heavy duty, self-locking, positioning precision, uniform lifting speed, fully synchronization, easy installation, easy operation 2. Two screw jacks system, three screw jacks system..forty screw jacks system. 3. Extremely high capacity requirements of need very precise up or down control. It's of high mechanical, they are an excellent choice when hydraulic, pneumatic or chain systems are prohibitive choices. 4. Widely used in wood working machines, plastics processing machines, textile machines, assembly equipment in the automobile and aircraft industries, food and beverage production equipment as well as packaging machines.
screw jacks with handle or electric motor
Screw Jack Systems Used in Automated Production
Screw Jack Systems offer comprehensive lifting and positioning design solutions for a wide variety of industries. Our years of application experience assures that all elements of the design process are considered.
electric worm gear screw jack lift
Two-set Linkage Screw Jack System
Two-set linkage screw jack system can be "L", I and T configuration.  It usually consists bevel gearbox, screw jack, electric motor, gear reducer, hand wheel, pillow block bearing, jaw coupling, line shafting.
acme ball screw jacks screw lift
Four-set Linkage Screw Jacks System
Four-set linkage screw jack system can be  I and T configuration, transmission efficiency can be 85% .
hand wheel screw jack motorized screw jack price
Eight-set Linkage Screw Jacks System
Eight-set linkage screw jack system can be 2H and H configuration, transmission efficiency 80%.
screw jack lifting system
Multiple Screw Jack Lifting System
Screw jack lift system structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shafts.
