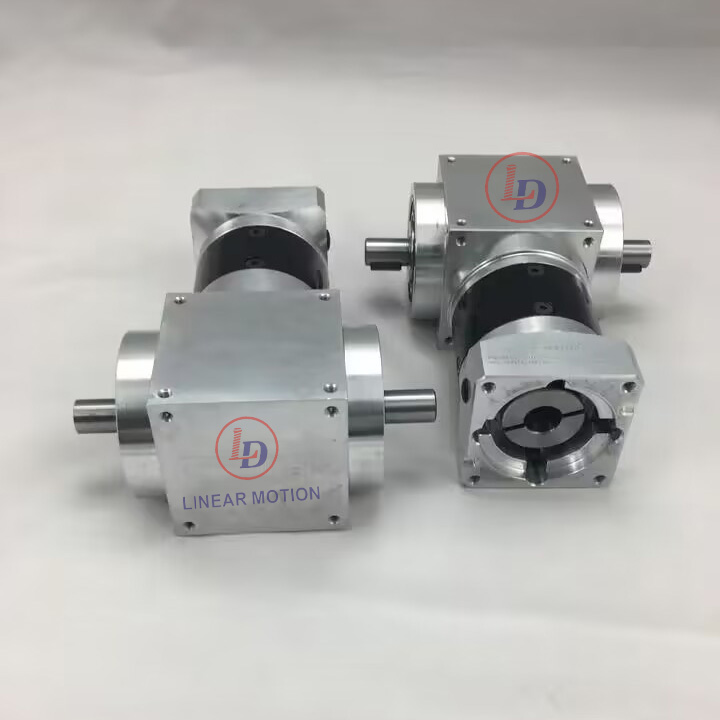

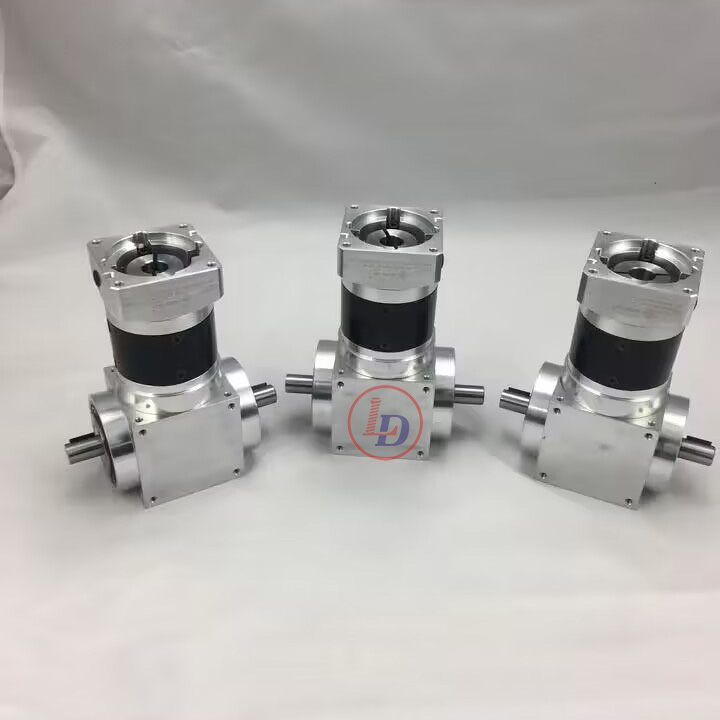

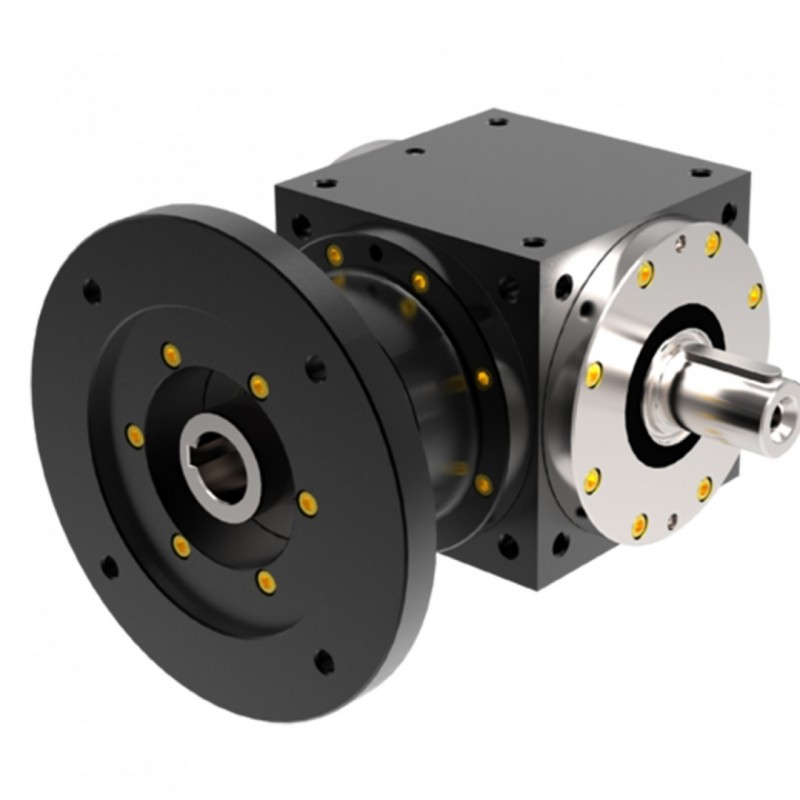

AT/ATB High Precision Spiral Bevel Gearbox

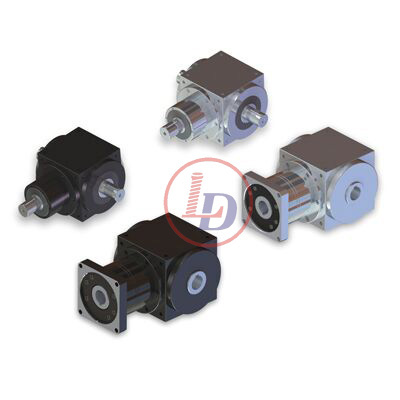

A brand new AT/ ATB series gearboxes from Lude Transmission are high precision right angle spiral bevel gearboxes with various housing design: in stainless steel (AT Series) or Carbon steel (ATB Series).




  • Brand:

    Lude
  • Payment:

    TT
  • Product origin:

    ShanDong of China
  • Color:

    customize
  • Shipping port:

    Shanghai / Tianjin /Qingdao
  • Lead Time:

    25
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

This range of gearbox supports various output options (single shaft, dual shaft or three-shafts joined) and flexible mounting dimensions (e.g. with hollow keyed output and motor flange input configuration or hollow compression connection output and input shaft configuration etc.)

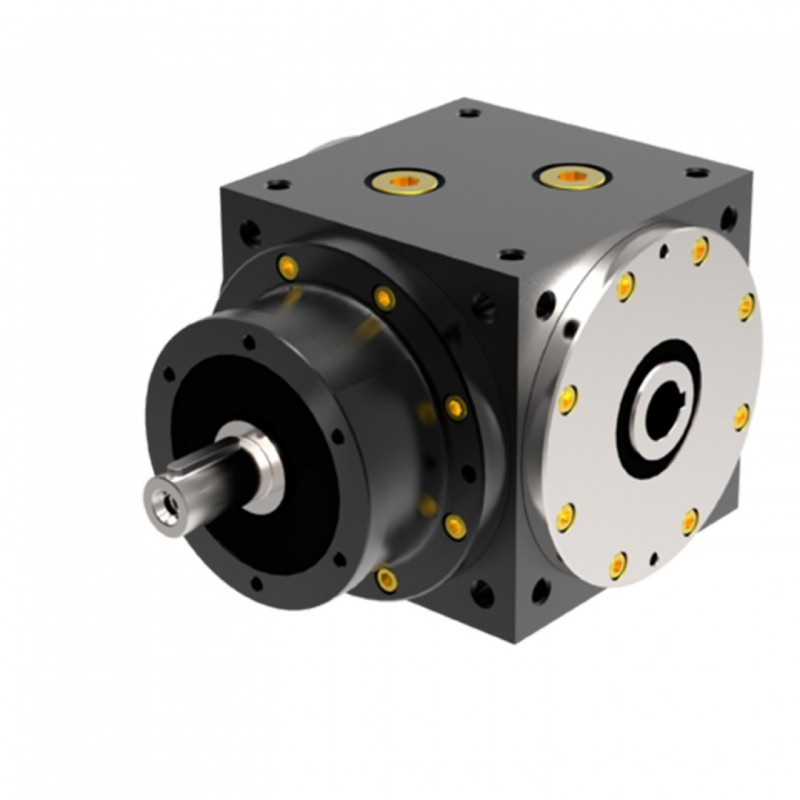

Models AT-4M spiral bevel servo grade gearbox offers 1:1 ratio, being constructed with four drive shafts and three spiral bevel gears. It is suitable for line shaft applications, single input wit three driven output shafts and dual shaft applcitions that require a manual drive option.


The Lude Transmission AT-L series is a right angle spiral bevel gearbox with dual output shafts and input shaft configuration. High radial load capacity and high precision make the AT-L series suitable for servo applications as well as power transmission solutions.




Technical Data Sheets &CAD

  • AT-ATB-High Precision Spiral Bevel Gearbox

    PDF

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products

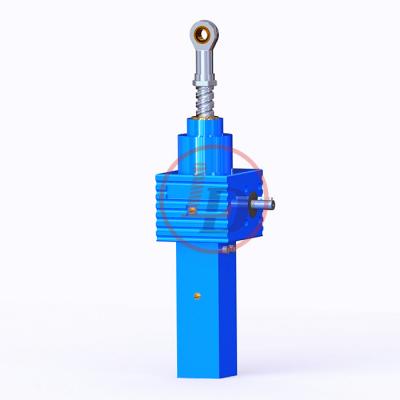

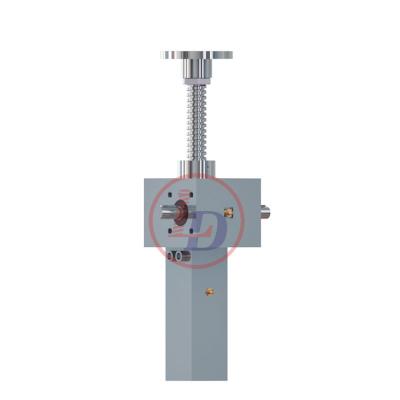

cubic worm gear screw jack of high speed
Mini size ball screw jack
SJB series screw jack is of ball screw type and has compact structure.

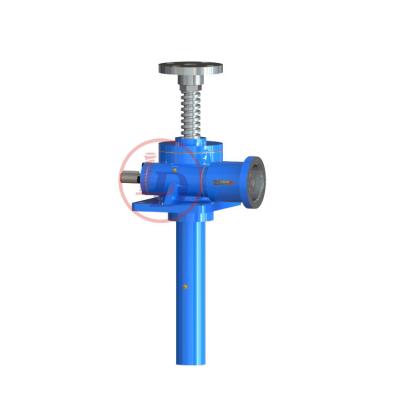

worm gear acme screw jacks

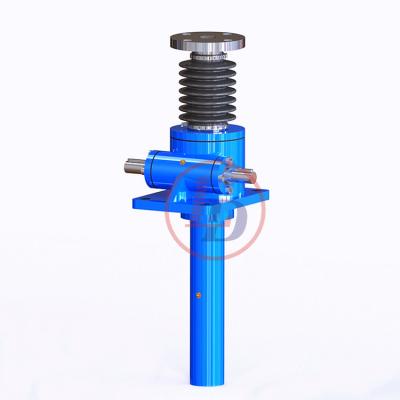

Heavy Duty Worm Gear ACME Screw Jack
Heavy Duty Worm Gear ACME Screw Jacks combine an acme screw jack, motor and gear reducer into a single compact unit.
1

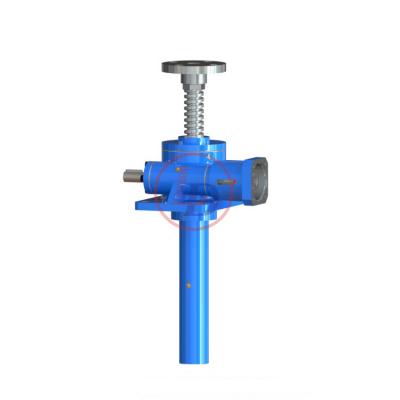

Inverted screw jack in manual screw jacks
