ARA series helical bevel gearbox straight bevel gearbox

90 Right Angle Bevel Gear Reducer
  • Brand:

    Lude
  • Payment:

    TT
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Tianjin/Shanghai
  • Lead Time:

    5 days
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

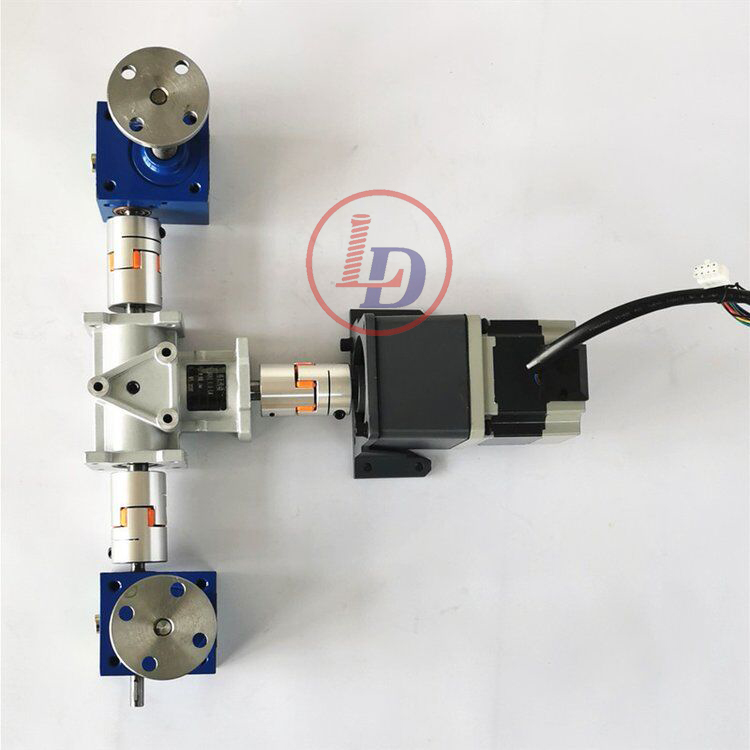

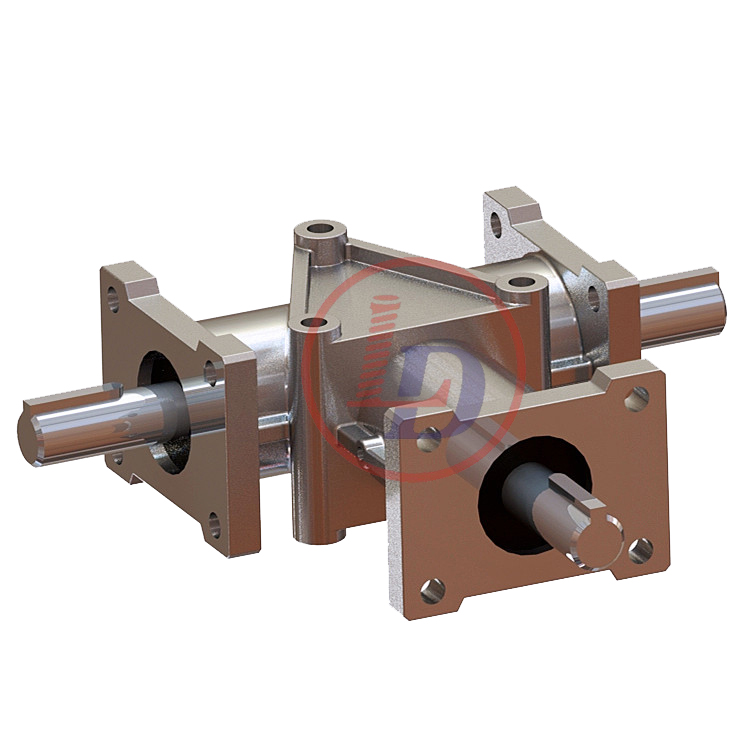

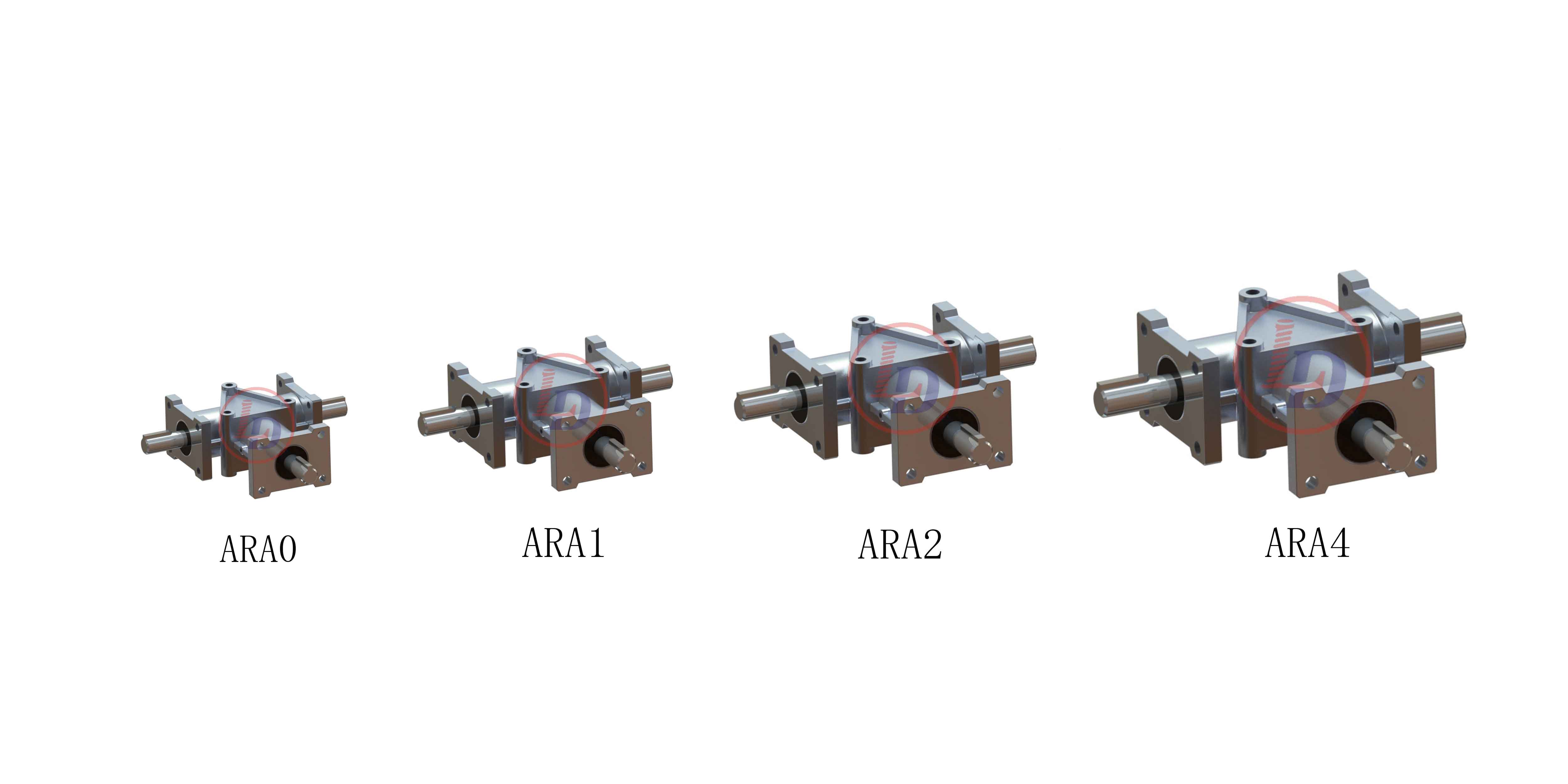

ARA series of spiral bevel gear steering box

Features:small and complete installation, light weight, aluminum alloy shell, shaft need to steel for corrosion resistance when ordering.The lubricant is added before out of factory.

ARA series modular steering box adopts scientific design, features, is indispensable to transmission equipment industry products.Excellent performance, light weight, small volume, high torque;strong case, use the high quality aluminum alloy die casting;nice appearance, reasonable design.Wide applicable scope, large torque, low noise, long service life.

Power: 0.018KW~4.94KW
Torque:6.95~46.8Nm
Speed ratio:1:1 and 2:1


Details
1.Case: High rigidity FC-25 cast iron
2.Gears: The material is high quality high purity steel alloy 20CrMnTiH with carburizing and quenching treatment and grinding process.
3.Main shaft: Adopt steel alloy to temper, high hanging load capacity
4.Bearing: Heavy load capacity taper roller bearing
5.Oil seal: The oil seal with double sealing lips, it has ability of dust proof and oil leak proof.

Technical Data Sheets &CAD

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
cubic screw jack
SJA Series cubic screw jack for lifting
SJA series screw jacks are suitable for heavy load, low speed and low frequency.
 cubic small stainless steel screw jack
Stainless Steel Worm Gear Screw Jacks
Stainless steel screw jack is suitable for corrosive and harsh environments.All the exposed surfaces and components are of stainless steel or bronze.
1
mechanical lift worm gear screw jack design screw jack for sluice

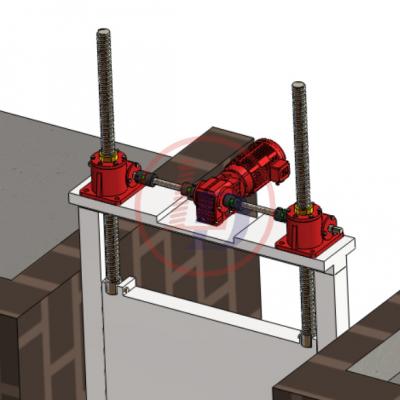

Screw Jack for Sluice Gate Worm gear screw jacks are used for rivers, canals, power station sluice gate lifting projects. The jack screw used is trapezoidal screw, because it has self-lock function. And trapezoidal screw jack is suitable for heavy load and slow speed. It can be manual or electric driven according to detailed need.
