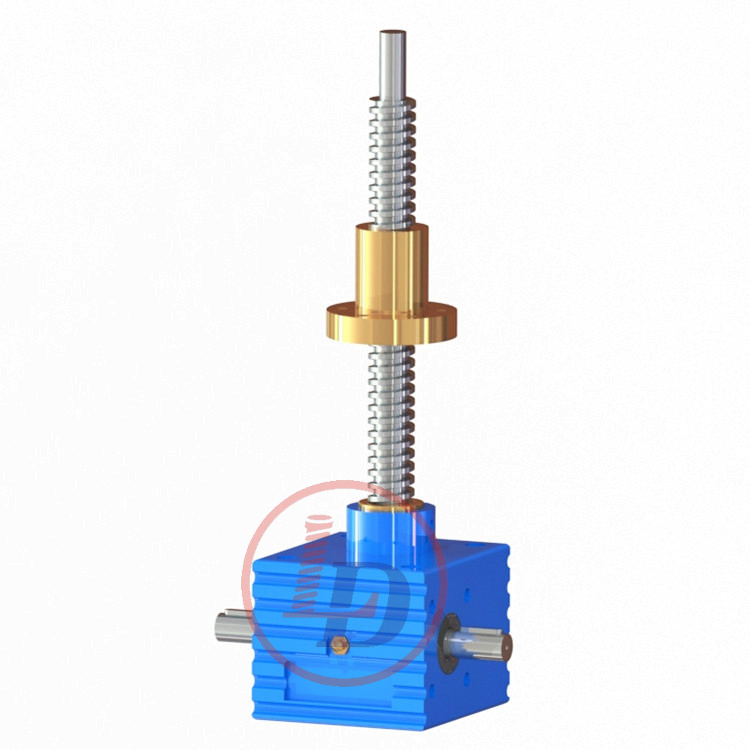

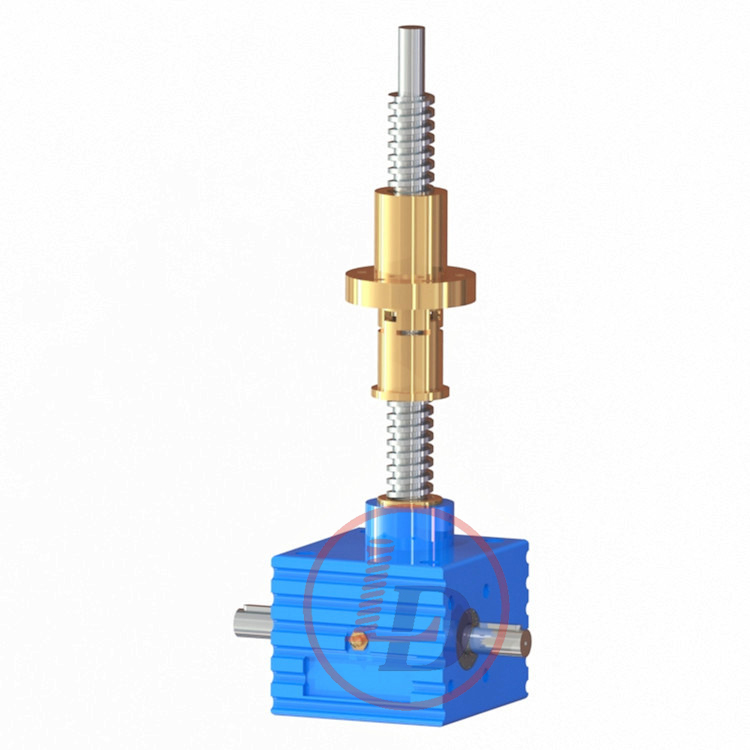

Small Cubic Rotating Screw jack 5KN

5 KN Small Screw Jacks, also called 5 kN Cubic worm gear screw jack or small worm screw jack.


  • Brand:

    Lude
  • Payment:

    T/T, L/C, Credit Card
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Qingdao/Tianjin/Shanghai
  • Lead Time:

    20-30 days after payment received
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

5 kN cubic small screw lift features:
1. Maximum lifting capacity 5 kN, 500 kg
2. The smallest gearbox 80x72x62mm
3. Lifting screw size Tr 18x4
4. The worm gear ratio is 5:1, 20:1
5. Customized lift height 10-1500mm
6. End fittings: top plate, clevis end, threaded end,plain end, fork end and rod end
7. Screw design: translation, keying, rotary screw design
8. Power: manual (handwheel) or electric (motor)
9. Single or multiple unit 5 kN cubic small screw lift system

The main components of the 5 kN  small screw jack adopt international standard materials: the main components are trapezoidal lifting screw (worm screw), with No.45 steel material, worm gear or travelling nut with bronze material, the worm shaft is heat treated No. 45 steel, thrust bearing, grease seal and gear housing  with ductile iron.



Technical Data Sheets &CAD

  • SJA Screw Jack

    PDF
