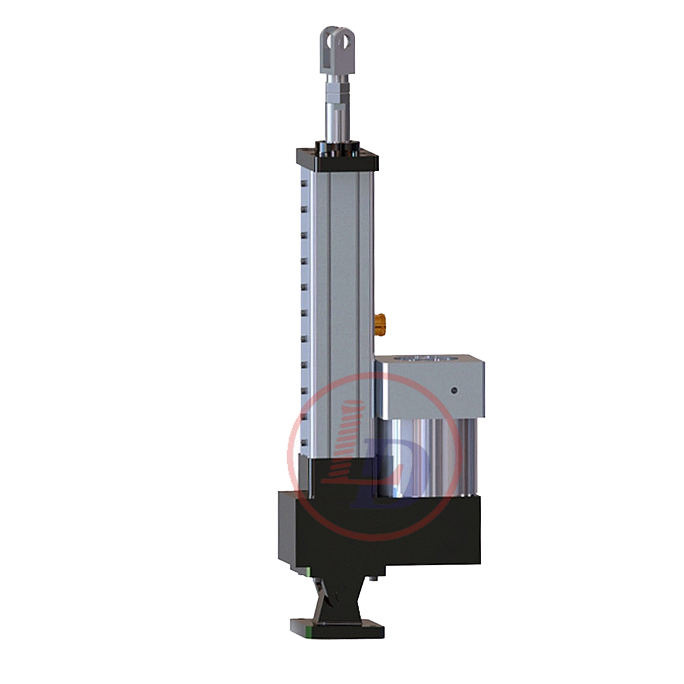

Heavy duty high speed servo ball electric cylinder

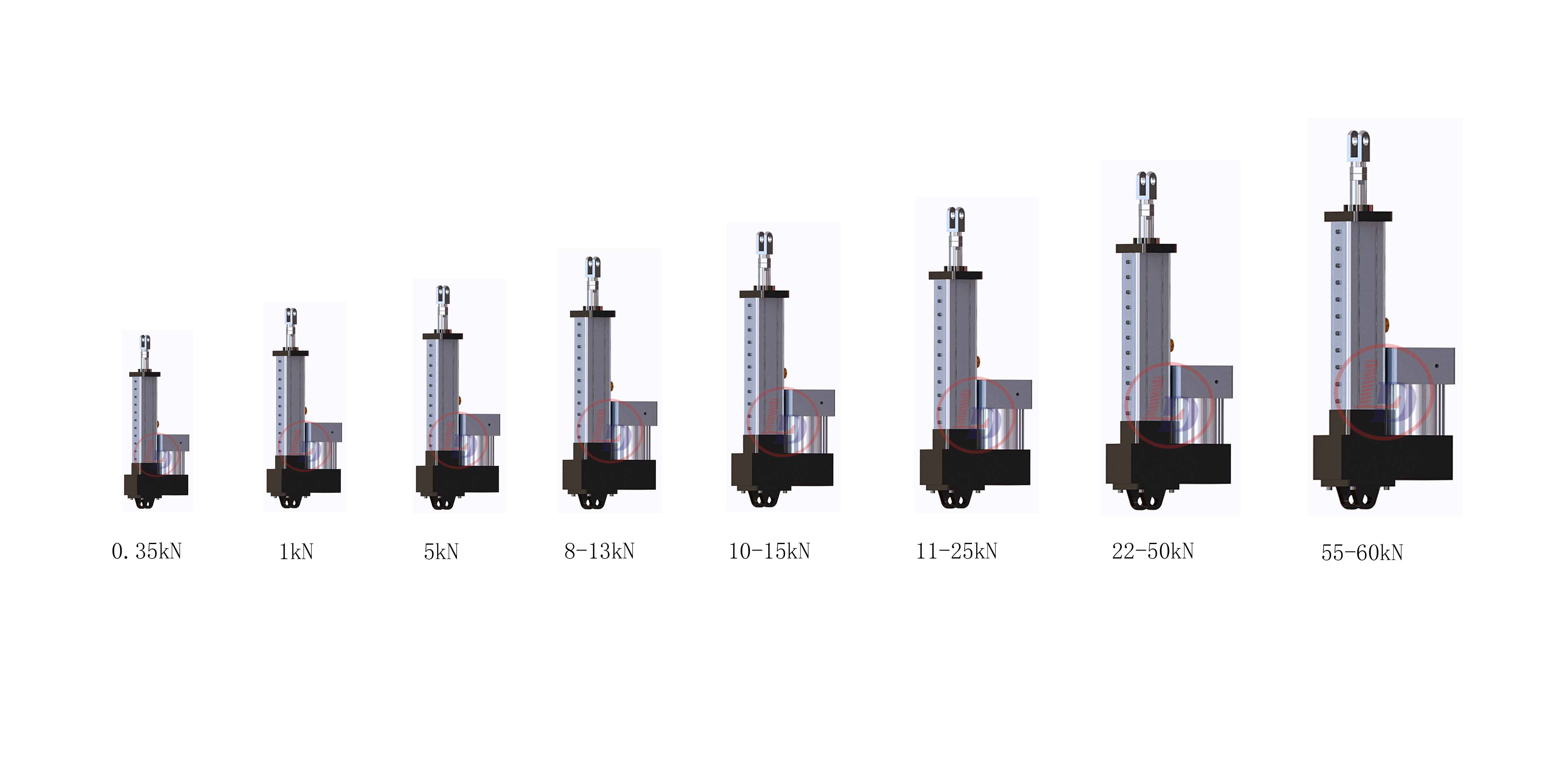

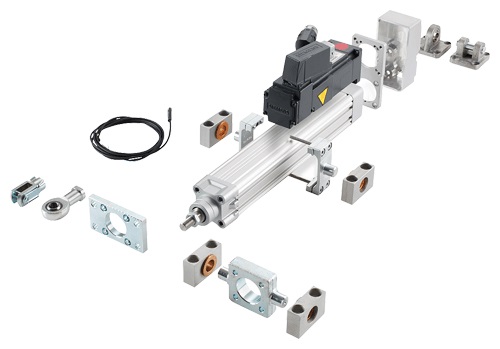

This linear servo actuator is available with ball screws , in different sizes and stroke lengths to fit a wide range of applications .

This linear servo actuator is available with ball screws , in different sizes and stroke lengths to fit a wide range of applications .

This linear servo actuator is available with ball screws , in different sizes and stroke lengths to fit a wide range of applications .

Screw jack is used in applications where linear motion is required. Lifting of any load, pushing or pulling of mechanical equipment, adjusting of tight clearances of mechanical parts can be done by screw jacks. Mechanical capacity of screw jacks is between 5kN and 2000kN, Jack screws can be used as linear motors, linear actuators, or mechanical lifts depending on type of motion. Working Principle of Screw Jacks Main components of screw jacks are: trapezoidal lifting screw, worm screw, worm gear and gear housing, Worm screw is rotated manually or by motor. Worm gear is rotated by worm screw. The lifting screw moves through the rotating worm gear. The linear motion speed of lifting screw depends on thread size and rotation ratio of worm gears.

Lifting table is an common appliance of Hand Crank Screw Jack . We offer 1ton, 2.5ton and 5ton screw jack mechanism.

The screw jack linkage design is to connect more than two sets of screw jacks together through couplings, connecting rods and with motor other accessories. The arrangement of the combined screw jacks can be customized according to needs.The common arrangements are shown in the figure below

ACME Screw Jack is widely used for industries and has the features of low cost,low frequency and heavy load.

Worm gear screw jacks not only can be used by single unit, but also can be used by multiple units. Multiple screw jacks can make up to a screw jack system together with spiral bevel gearbox,connecting shafts, couplings and motor etc.
