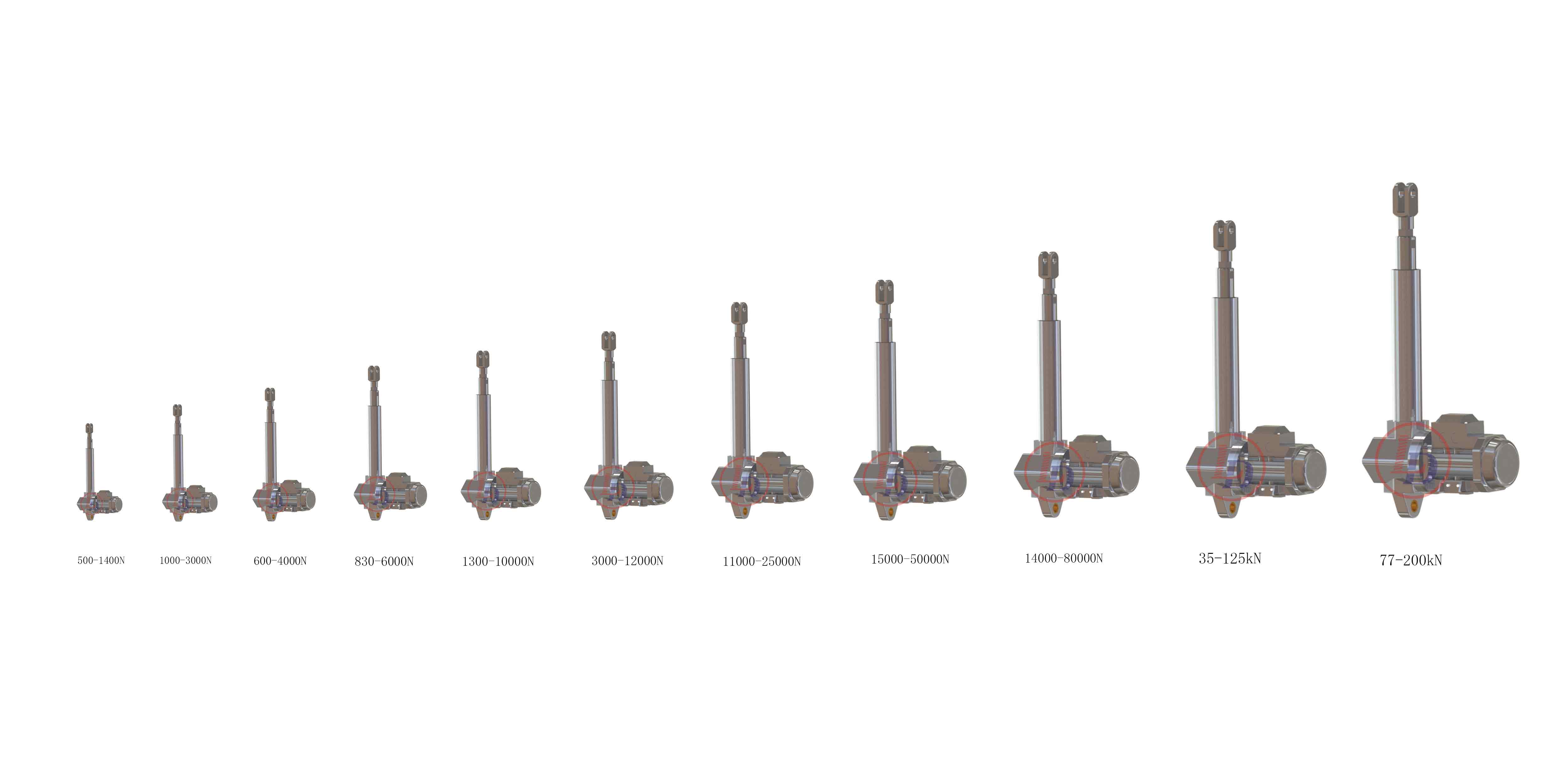

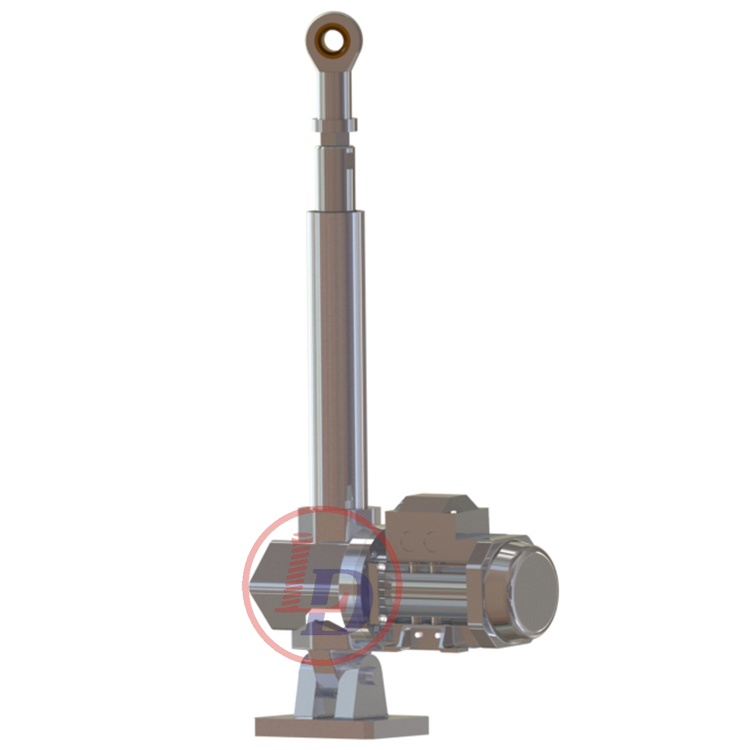

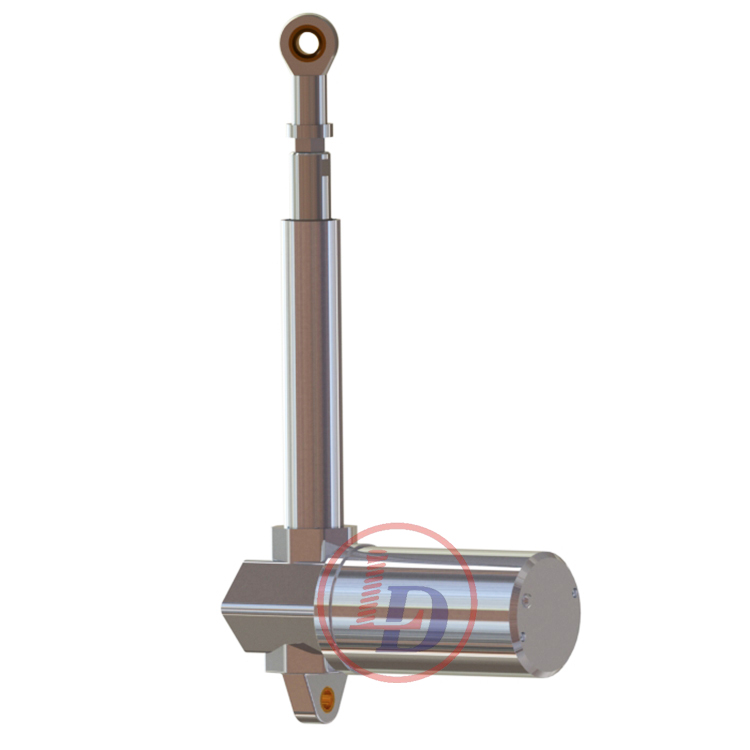

LAP Electric Linear Actuator with AC motor

The Electric Linear Actuator can be driven by DC motor 12/24/36/48V, single phase / three-phase AC motor 220/380V, stepper motor.
  • Payment:

    T/T, L/C, Credit Card
  • Product origin:

    Dezhou
  • Color:

    Blue or customized
  • Shipping port:

    Tianjin/Qingdao/Shanghai
  • Lead Time:

    20 days after order confirmed
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

The Electric Linear Actuator  features: High strength / high wear-resistant materials, high precision parts processing, shell advanced design ideas, creating a high bearing capacity, impact resistance, low noise, long life and high quality products, can work in harsh industrial environments. Configuration is divided into ordinary tooth screw electric putter (work system is 30%) and ball screw electric push rod (work system 60%), the specific use conditions need to be confirmed by both sides.


The Electric Linear Actuator  can be driven by DC motor 12/24/36/48V, single phase / three-phase AC motor 220/380V, stepper motor, servo motor, explosion-proof motor, deceleration motor and so on.
According to the self determined coefficient, self-locking performance, can realize the absolute synchronization drive multiple push configuration encoder can realize more precise positioning (position accuracy of 0.1mm, different configurations, different accessories, precision), suitable for a variety of special occasions.


Working environment temperature: 5 - 40 C, for -40 - +70 - C, consulting business engineer.
Protection grade: IP54, IP55, (IP56, IP65, IP66), insulation grade: F (class H)
Contains long life grease, maintenance free, large putter need proper filling grease,




Technical Data Sheets &CAD

  • Lude Electric Linear Actuator

    PDF

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
