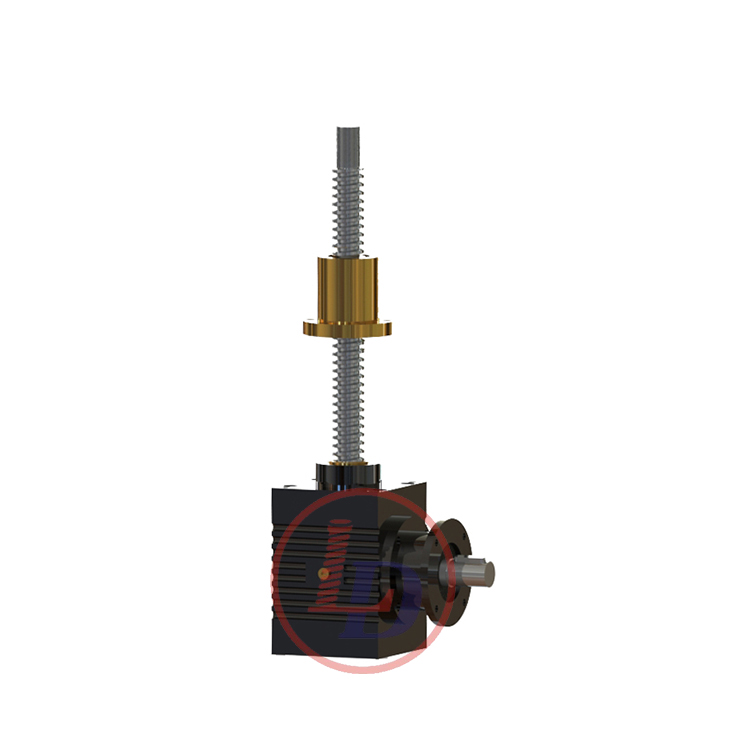

Bevel Gear Machine Rotating Screw Jack

Bevel Gear Machine Rotating Screw Jack offer higher efficiency and greater speed than other mechanical screw jacks

Brand:
Lude
Product origin:
ShanDong of China
Color:
customize
Shipping port:
Tianjin or Qingdao
Lead Time:
25

Inquiry now

follow us :

Product Details
Video
Case
Download

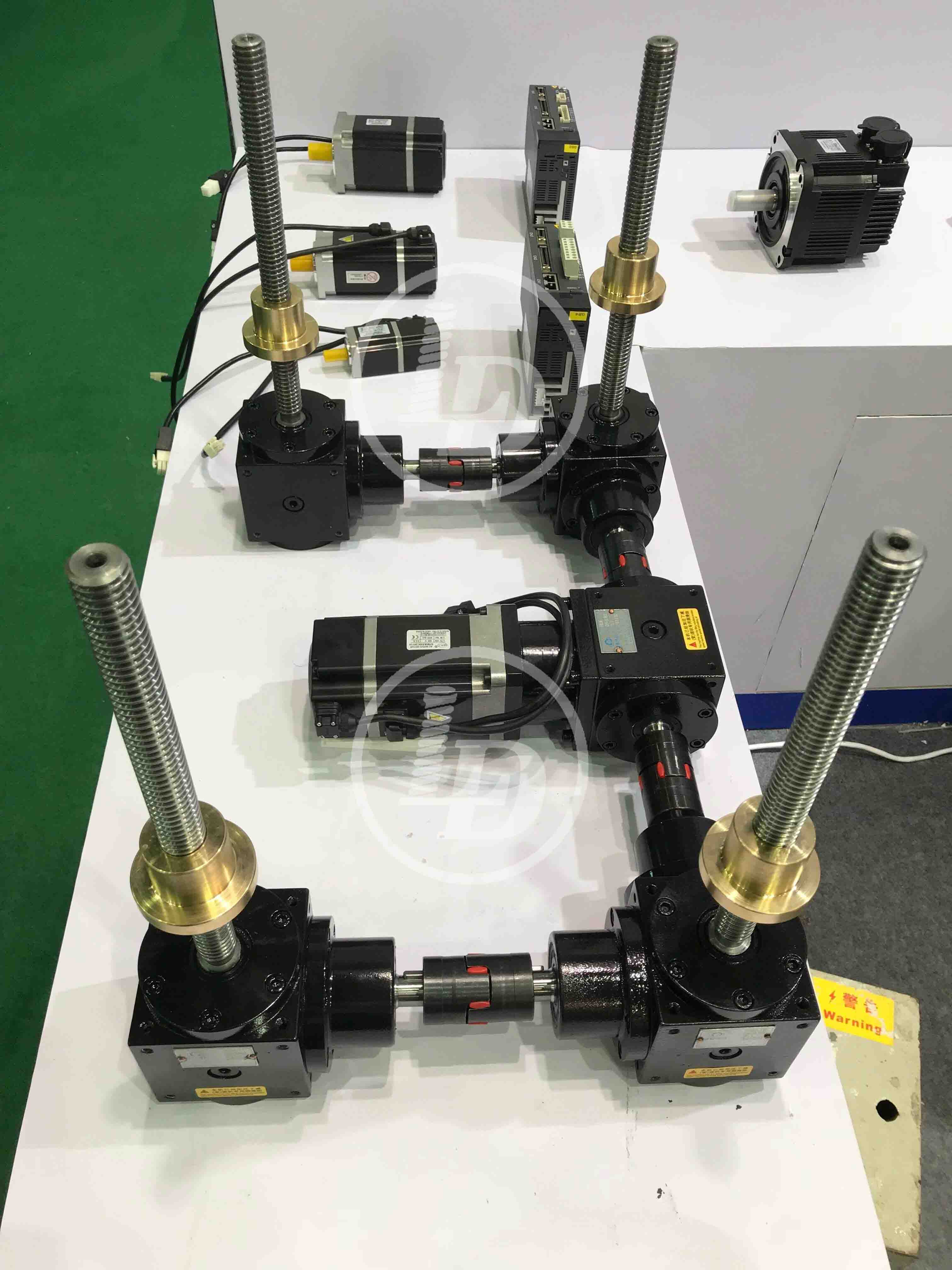

All high bevel gear screw jacks are equipped with hardened, sharpened, and spiral toothed bevel gear transmissions for high lifting speed and greater duty cycle.

Machine screw jacks incorporate the use of a trapezoidal acme screw with a low backlash between nut and screw. For applications requiring smoother motion, higher speeds or less torque, ball screw jacks are available.

Technical Data Sheets &CAD

G Series Bevel Gear Screw Jack

PDF
