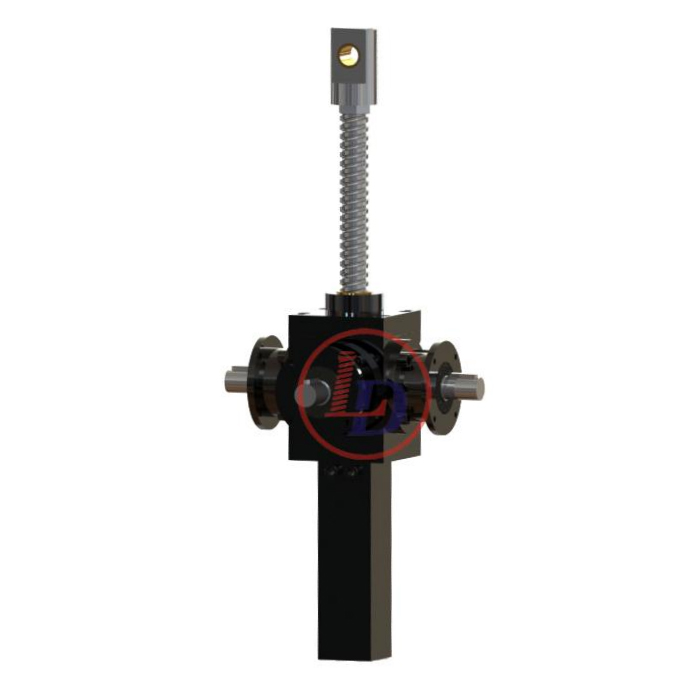

Three Shaft Configurations Bevel Gear Screw Jacks

Bevel gear jacks use the same trapezoidal or acme screws used in machined screw jacks to move the load.

  • Brand:

    Lude
  • Payment:

    TT
  • Product origin:

    ShanDong of China
  • Color:

    black or customize
  • Goods stock:

    100
  • Shipping port:

    Shanghai / Tianjin /Qingdao
  • Lead Time:

    25/35
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

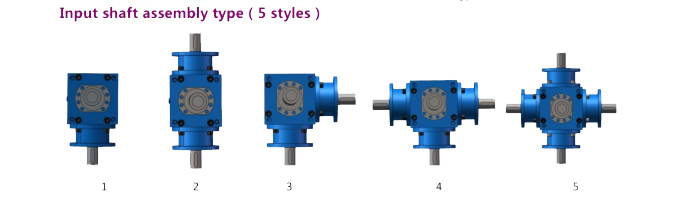

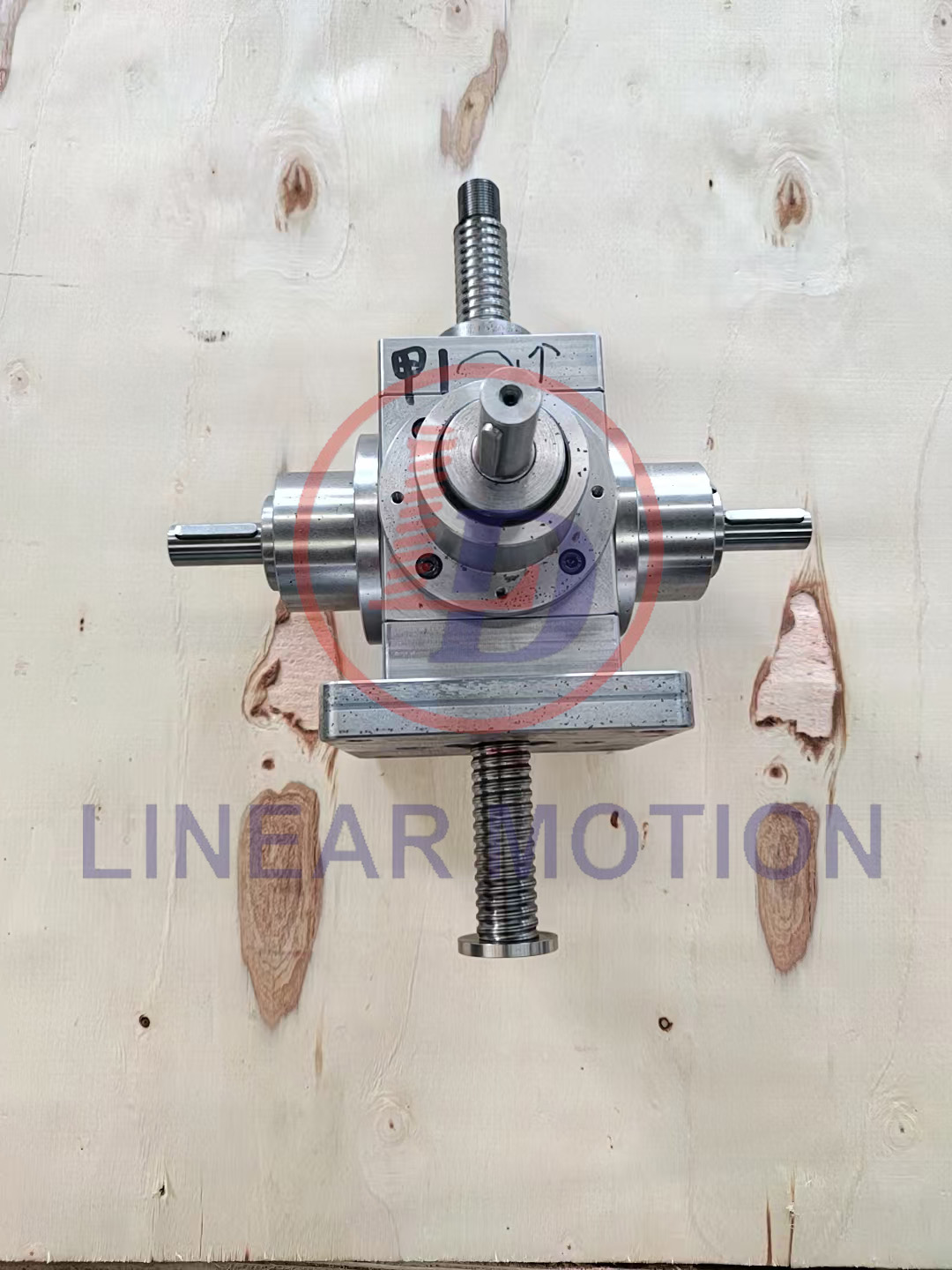

Another benefit of bevel gear jacks is their I/O shaft flexibility. They are available in single shaft, two shaft and three shaft configurations. In two and three shaft configurations the jack offers right angle characteristics with the ability to divide input power or torque, sending it equally in different directions.



Flexibility in shaft configuration makes bevel gear jacks ideal for multiple jack configurations and can eliminate the need for stand-alone right angle gearboxes used in many worm gear jack systems.

Technical Data Sheets &CAD

  • G Series Bevel Gear Screw Jack

    PDF

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
