T-series spiral bevel gearbox straight gearbox speed reduction

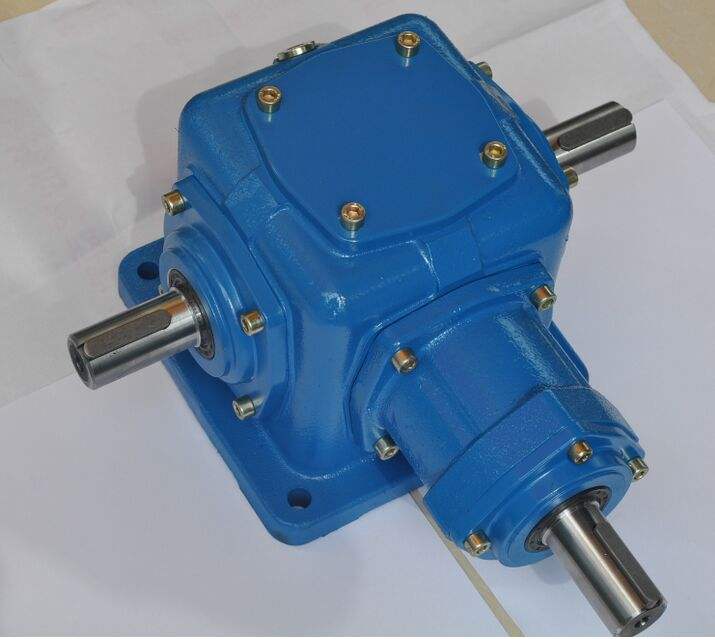

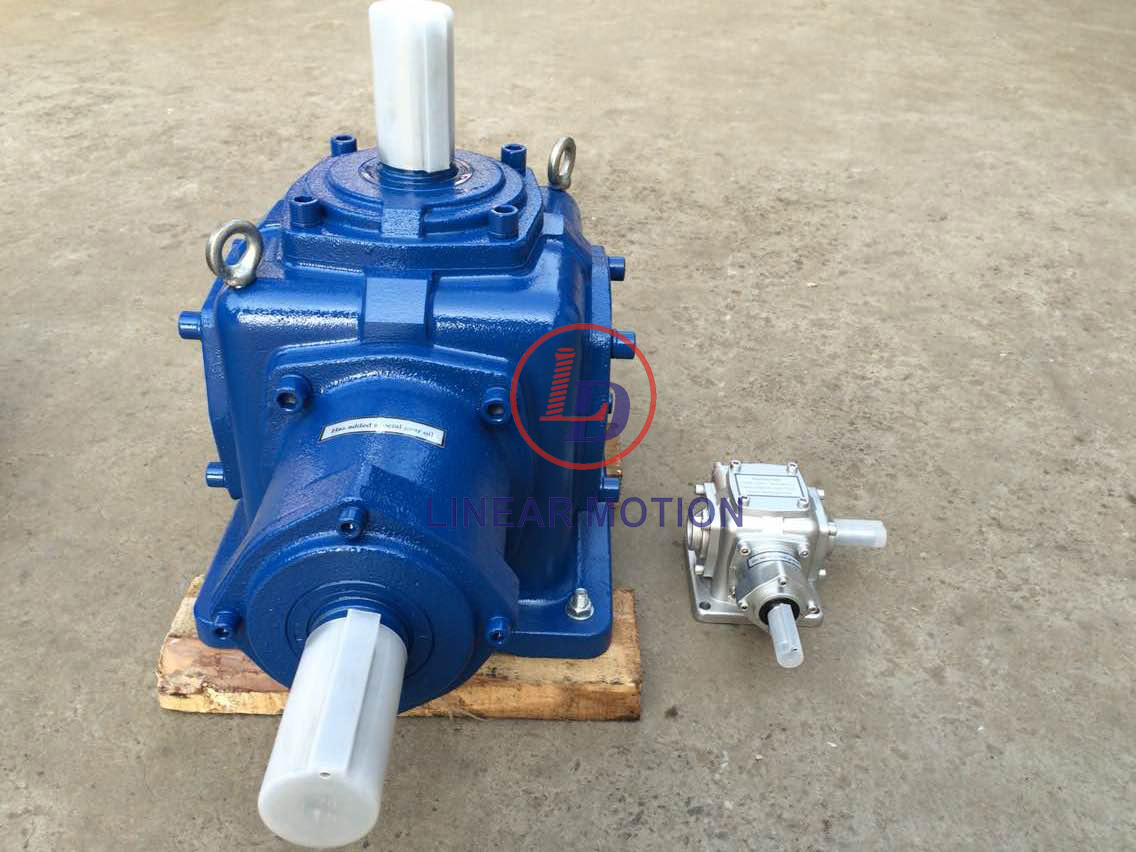

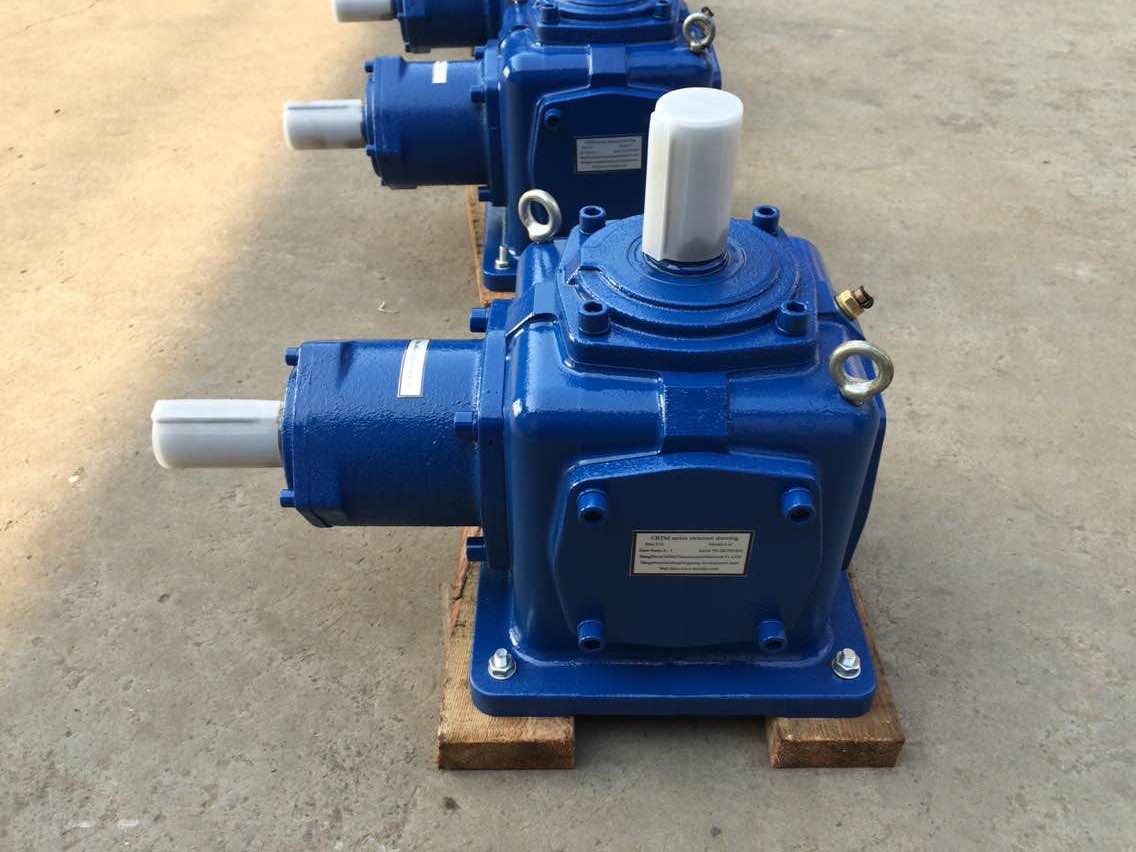

T Series Spiral bevel gear
  • Brand:

    Lude
  • Item No.:

    Bevel Gearbox
  • Payment:

    TT
  • Product origin:

    ShanDong of China
  • Color:

    blue or customize
  • Min order:

    2
  • Shipping port:

    Shanghai / Tianjin /Qingdao
  • Lead Time:

    15
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download


OVERVIEW

  • T series spiral bevel gearbox with various types are standardized,all ratio of 1:1,1.5:1,2:1,2.5:1,3:1,4:1 and 5:1 are actual ones.Average efficiency is 98%.
  • There are one input shafts,unilateral output shaft and double side output shaft.
  • Spiral bevel gear can rotate in both directions and transmit smoothly,low noise,light vibration,high performance.
  • If ratio is not 1:1,if input speed on single-extendable shaft,output speed will be reduced;if input speed on double-extendable shaft,output speed will be reduced.

FEATURE

  • Housing: high rigidity of the FC-25 cast iron casting;
  • Gear: gear with high purity alloy steel 20CrMnTiH quenched processing, carburizing quenching and grinding;
  • Main: shaft made of alloy steel quenching and tempering process, with the heavy load capacity;
  • Bearing: tapered roller bearing with heavy load capacity;
  • Oil seal: with oil seal lip, ability has dustproof and oil leak-proof high;

ADVANTAGE


  • Self-locking ability
  • Can be driven directly by motor or other power or manual
  • Can be customized according user's demand
  • Compact configuration, small size, lightweight
  • Convenient installation, flexible operation
  • High reliability and stability
  • Long service life
  • More connection form etc.



Technical Data Sheets &CAD

  • T Seires Gearbox

    PDF

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
T series gearbox
T Series 90 degree right angle spiral bevel gearbox
T Series Spiral bevel gear units

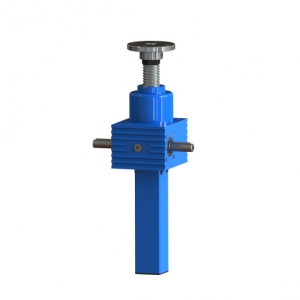

small worm gear screw jack
Cubic Acme Screw Jack of Compact Constructure
Screw jack is a basis jack-up part, accomplish the functions such as lifting, drop, push  and inverting through  worm gear drives screw.
1

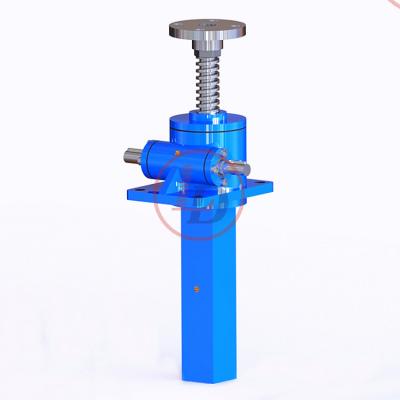

JWB series high-efficiency worm gear ball screw jack
JWB type (ordinary ball screw type) is suitable for high-speed, high-frequency and high-performance devices. The main components are precision ball screw pair and high-precision worm gear pair.
1
The best selling high precision linear actuator servo inline electric cylinder
This linear servo actuator is available with ball screws , in different sizes and stroke lengths to fit a wide range of applications .

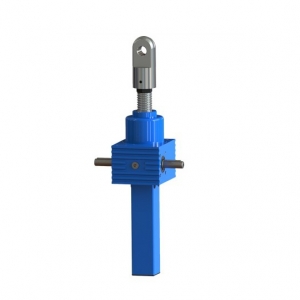

translating screw jacks with anti-rotation
