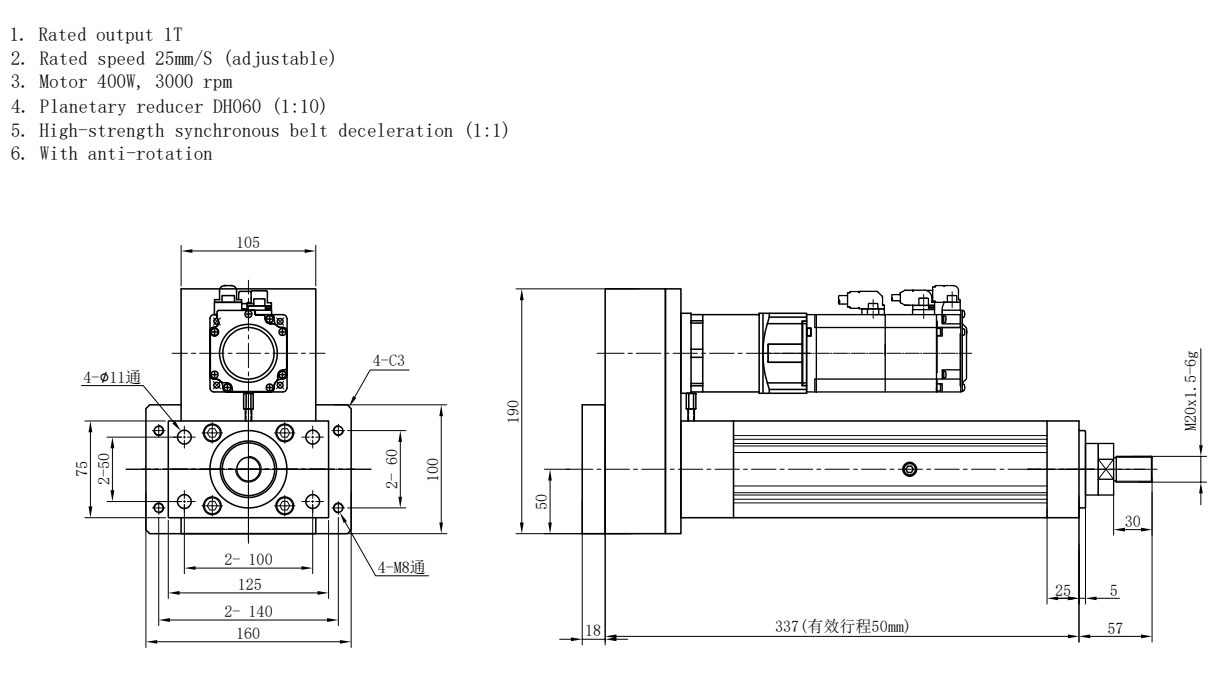

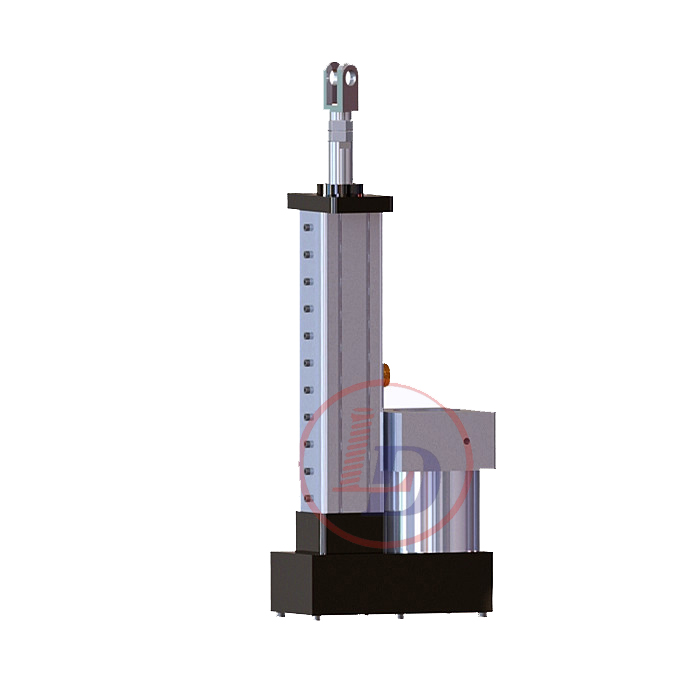

Parallel electric cylinder actuator cylinder

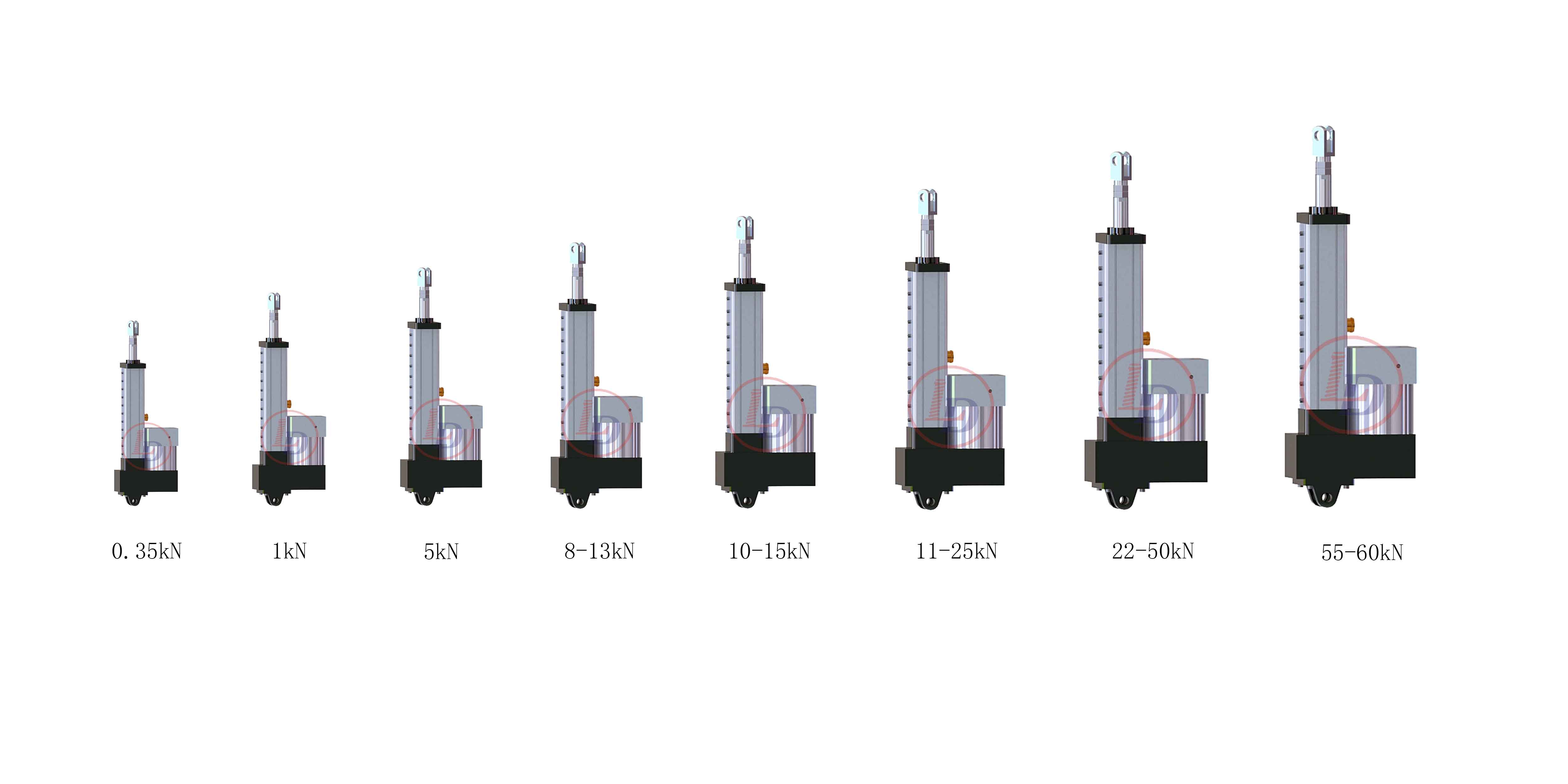

This linear servo actuator is available with ball screws , in different sizes and stroke lengths to fit a wide range of applications .

This linear servo actuator is available with ball screws , in different sizes and stroke lengths to fit a wide range of applications .

This linear servo actuator is available with ball screws , in different sizes and stroke lengths to fit a wide range of applications .

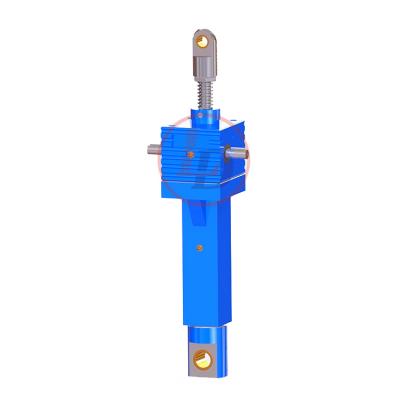

For Trapezoidal screw jack, there are two method to realize the anti-rotation function.

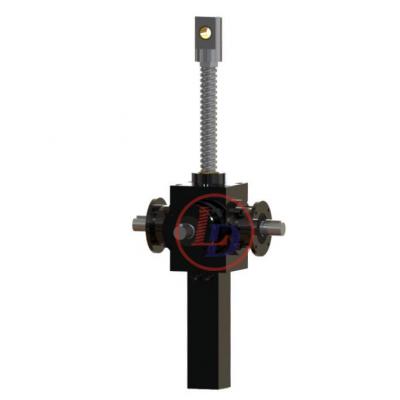

SWL Stainless Steel Hand Crank Screw Actuator is a basic lifting component. It has many characteristics, such as compact structure, small size, light weight, wide power source, no noise, convenient installation, flexible use, multiple functions, various supporting forms, high reliability and long service life. It can be used alone or in combination. It can accurately control and adjust the height of lifting or propulsion according to a certain program. It can be driven directly by motor or other power or manually. It has different structure type and assembly type, and lifting height can be customized according to user's requirements.

Lude Transmission stainless steel screw jacks are specifically designed for positioning and lifting applications that are located in wet, corrosive and harsh environments. They can be trapezoidal type or ball type. Metallurgical properties of stainless steel allow it to remain ductile even at very low temperatures.These mechanical jacks are available in 2 ton through 25 ton capacities. Upright or inverted jacks operate at full capacity in tension or compression. Features: All exposed surfaces and components feature stainless steel or bronze construction Nitrile rubber seals protect all internal mechanisms. Tapered or ball thrust bearings provide rugged reliability Choose one of four standard end conditions Protective boots available Anti-backlash devices available

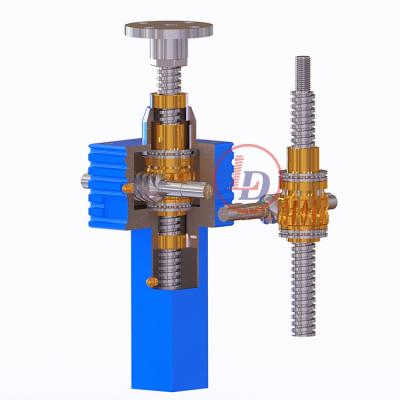

Ball screw working principle is to turn the rotary movement into a linear motion, or linear motion into the ideal rotary motion products. So the ball screw jacks have high precision,reversible and efficient features.

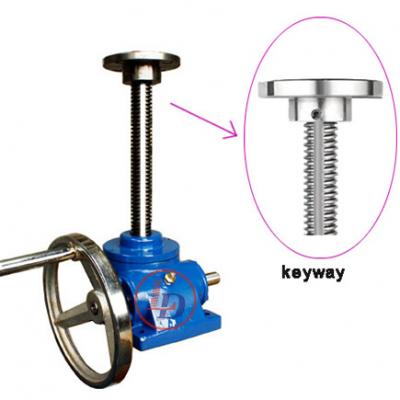

The manual screw jack is ideal solutions for applications where electricity or power generators is inconvenient or dangerous, light weight, low duty cycle, low target cost and short travel length.
