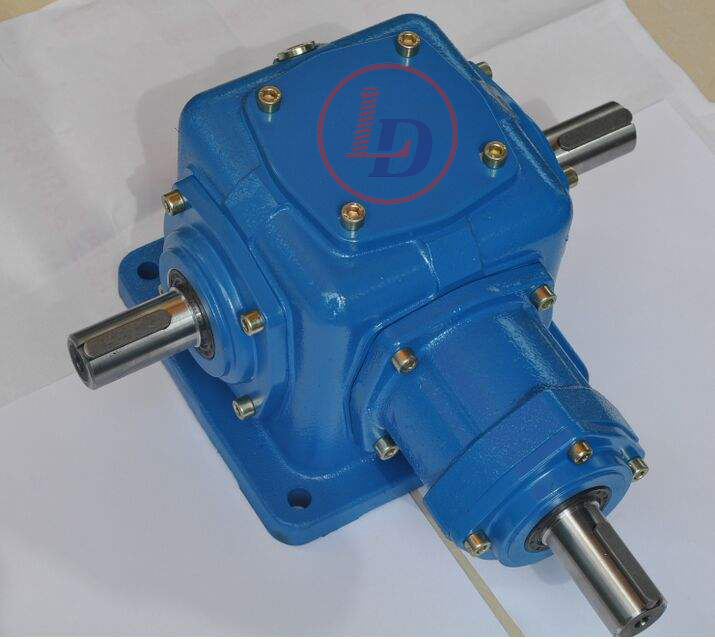

T Series 90 degree right angle spiral bevel gearbox

T Series Spiral bevel gear units
  • Brand:

    Lude
  • Item No.:

    T gearbox
  • Payment:

    TT
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Goods stock:

    100
  • Shipping port:

    Tianjin/Shanghai
  • Lead Time:

    15 days
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

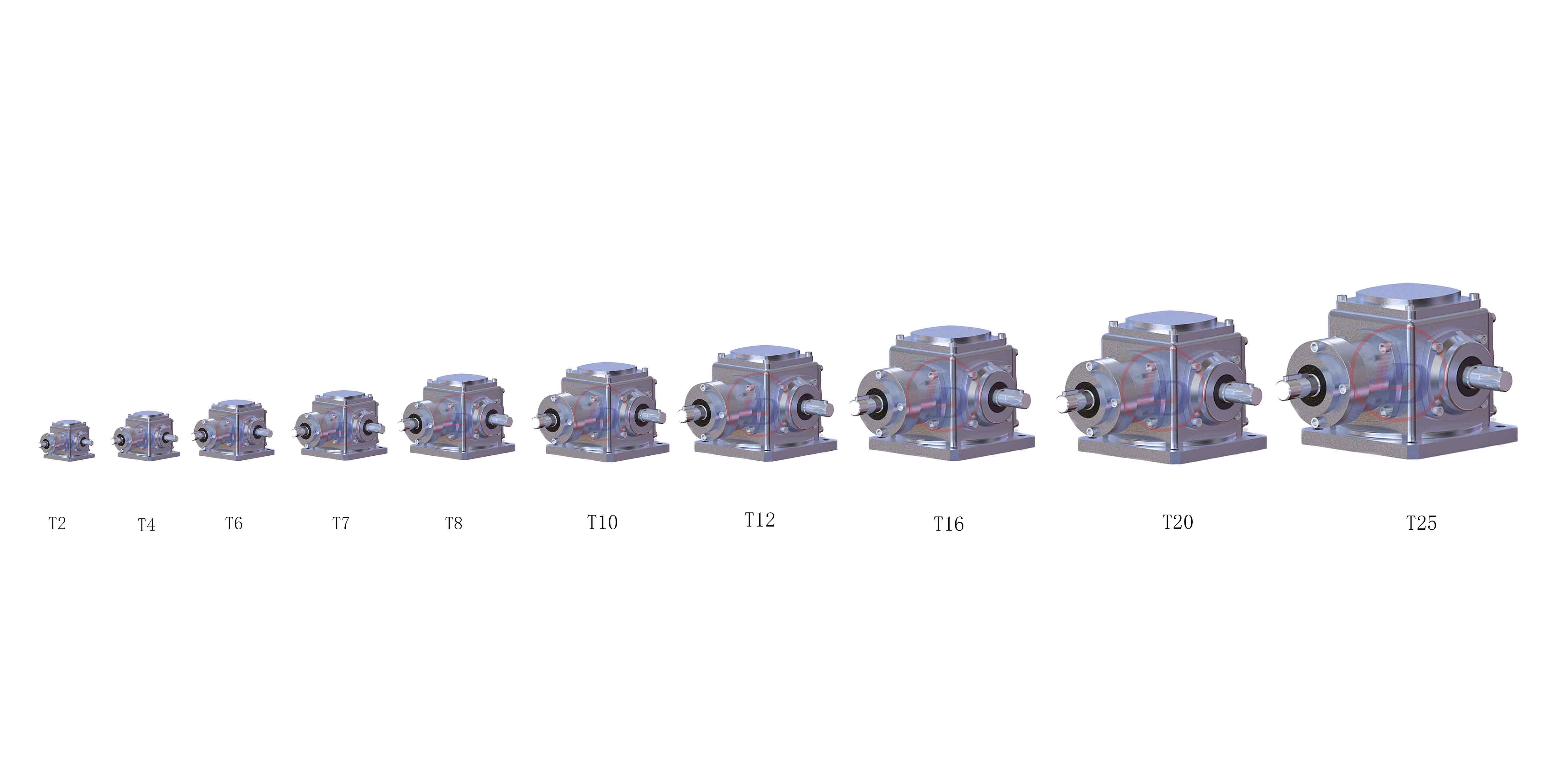

T Series Spiral bevel gear


OVERVIEW

  • T series spiral bevel gearbox with various types are standardized,all ratio of 1:1,1.5:1,2:1,2.5:1,3:1,4:1 and 5:1 are actual ones.Average efficiency is 98%.
  • There are one input shafts,unilateral output shaft and double side output shaft.
  • Spiral bevel gear can rotate in both directions and transmit smoothly,low noise,light vibration,high performance.
  • If ratio is not 1:1,if input speed on single-extendable shaft,output speed will be reduced;if input speed on double-extendable shaft,output speed will be reduced.

FEATURE

  • Housing: high rigidity of the FC-25 cast iron casting;
  • Gear: gear with high purity alloy steel 20CrMnTiH quenched processing, carburizing quenching and grinding;
  • Main: shaft made of alloy steel quenching and tempering process, with the heavy load capacity;
  • Bearing: tapered roller bearing with heavy load capacity;
  • Oil seal: with oil seal lip, ability has dustproof and oil leak-proof high;

ADVANTAGE


  • Self-locking ability
  • Can be driven directly by motor or other power or manual
  • Can be customized according user's demand
  • Compact configuration, small size, lightweight
  • Convenient installation, flexible operation
  • High reliability and stability
  • Long service life
  • More connection form etc.



Technical Data Sheets &CAD

  • T Seires Gearbox

    PDF

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
worm screw jack with handwheel
Hand-operated Translating Screw Jack 5ton
Manual Screw Jack includes a worm gear screw jack and a handwheel or hand crank. It is suitable for applications where electricity or power generators is inconvenient or dangerous, light weight, low duty cycle, low target cost and short travel length.
looking for ball screw jacks supplier
High Accuracy Low Noise Worm Machine Screw Jack Screw Lift
Screw jack lift is a basis jack-up part, accomplish the functions such as lifting, drop, push and inverting through worm gear drives screw.
mini worm gear screw jack lift

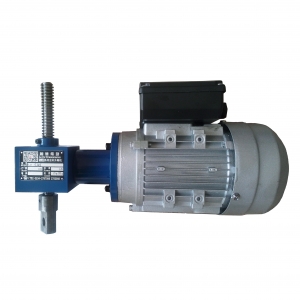

Small Electric Machine Screw Jack
This Small Electric Machine Screw Jack is SJA series, that features a rectangle fluted enclosure improves its heat dissipation characteristic and extend the lifetime of its lubricant and it has high efficiency.
HD gearbox
HD series helical gear reducer 90 degree gearbox
The box is hexahedron that can fit into different mounting frames.
ACME Screw jacks
Trapezoidal Screw Jack for Sluice Gate
Trapezoidal Screw Jack is common used and has the advantage of low cost and heavy load.
small screw jack
China small screw jack supplier
Screw jack/lift is a basis jack-up part, accomplish the functions such as lifting, drop, push and inverting through worm gear drives screw.

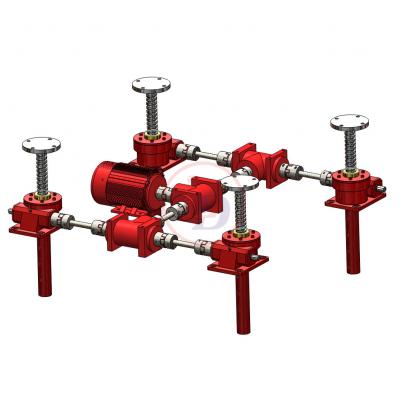

4-set Screw Jack System H Type
4-set Screw Jack System H Type

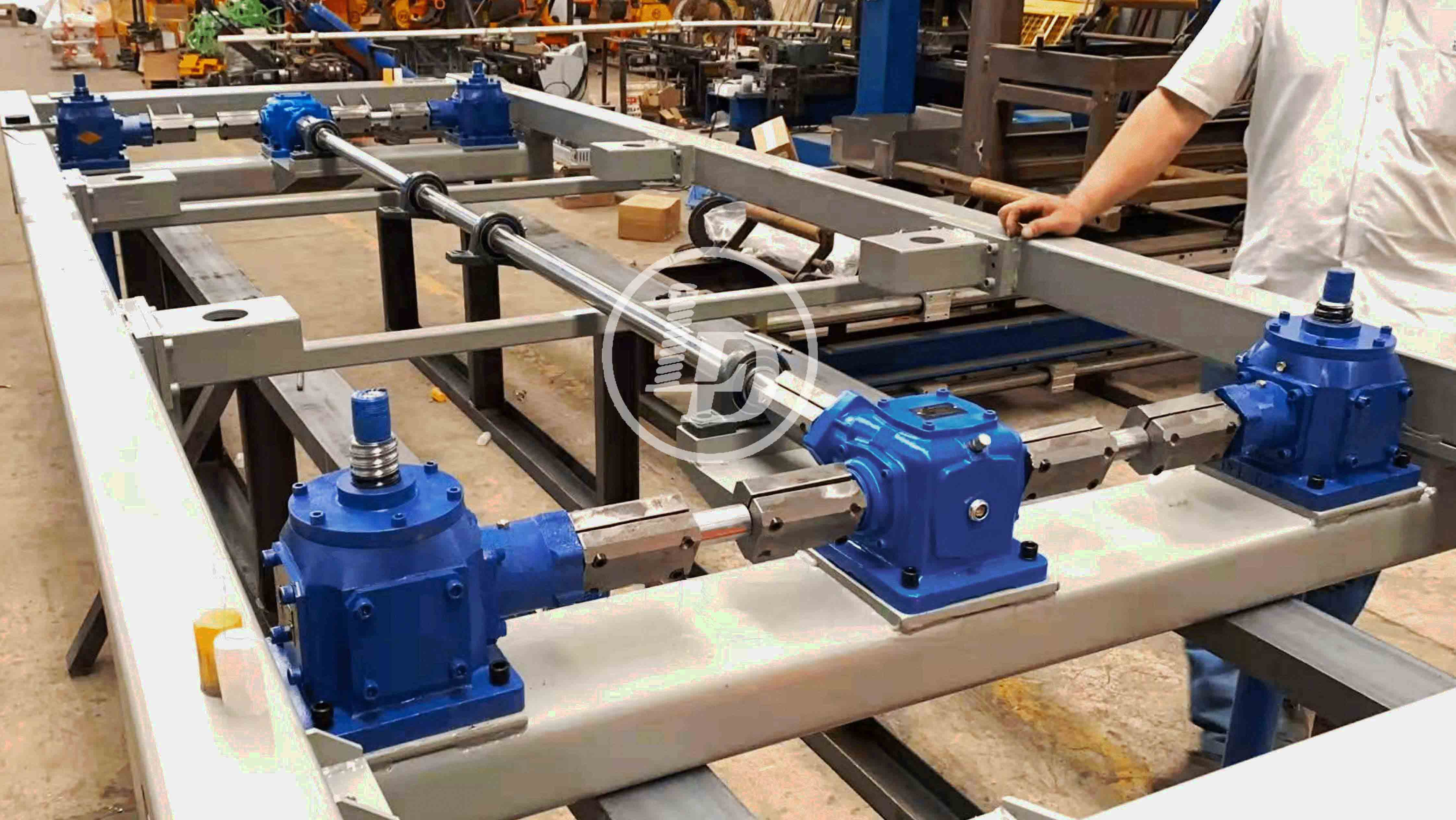

Worm gear screw jacks not only can be used by single unit, but also can be used by multiple units. Multiple screw jacks can make up to a screw jack system together with spiral bevel gearbox,connecting shafts, couplings and motor etc.
