Worm Gear Mini Ball Screw Lift 15ton

Worm Gear Mini Ball Screw Lift has advantages of small volume and high efficiency.
  • Item No.:

    SJB300
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Tianjin/Qingdao
  • Lead Time:

    20 days after payment received
follow us :
  • Product Details

  • Photo

1. Description and picture

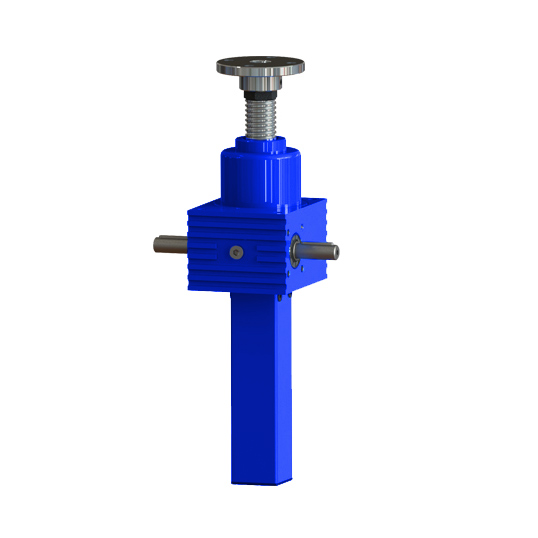

Worm Gear Mini Ball Screw Lift has advantages of small volume and high efficiency.Mini screw jack


Mini Ball Screw Lift SJB300 Outline Drawing:



Mini Ball Screw Lift SJB 300 parameters

Mode: SJB300

Max.lifting load:150kN

Dynamic load:111kN

Screw diameter: 100mm

Screw pitch:20mm

Screw ratio: 1:10

Stroke per one input turn:1.95mm

Max.input power:7KW

Screw type:ball screw

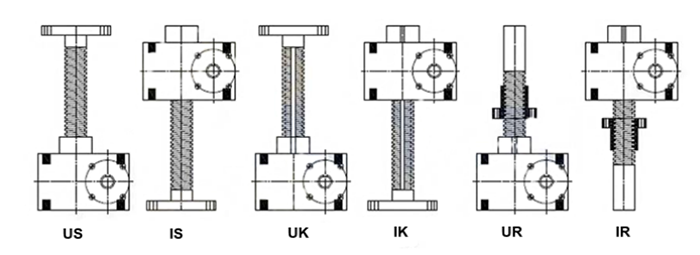

Screw Configuration & Mounting Orientation

US: Upright translating screw     UK: Upright keyed screw    UR: Upright rotating screw
IS: Inverted translating screw     IK: Inverted keyed screw    IR: Inverted rotating screw
Note: US,IS(Screw rotation,do axial motion)   UK,IK(Screw anti-rotation,do axial motion)   UR,IR(Screw fixed rotation,traveling nut do axial motion)


Our Advantages

1. High-end automated processing equipment and advanced rolling product structure design concept.

2 .Reasonable price with good quality and best delivery time.

3. Our engineers will help customer consider all safety factors, select correct models step by step with

customers' engineers, we will offer customer CAD drawings for last confirmation before ordering.

4 .Our sales team will give prompt feedback within 24 hours except they are dealing with urgent things.

3. The warranty period is one year, during warranty period, any problem of our products, after we confirmed, we will guide customer to fix or ship a new one to replace.


8.Our workshop



mini size ball screw lift
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
