Micro Cubic Screw Jack SJA80

This Micro cubic screw jack is special with a customized screw head.
  • Item No.:

    SJA80
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Tianjin/Shanghai/Qingdao
  • Lead Time:

    15 days after order confirmed
follow us :
  • Product Details

  • Photo

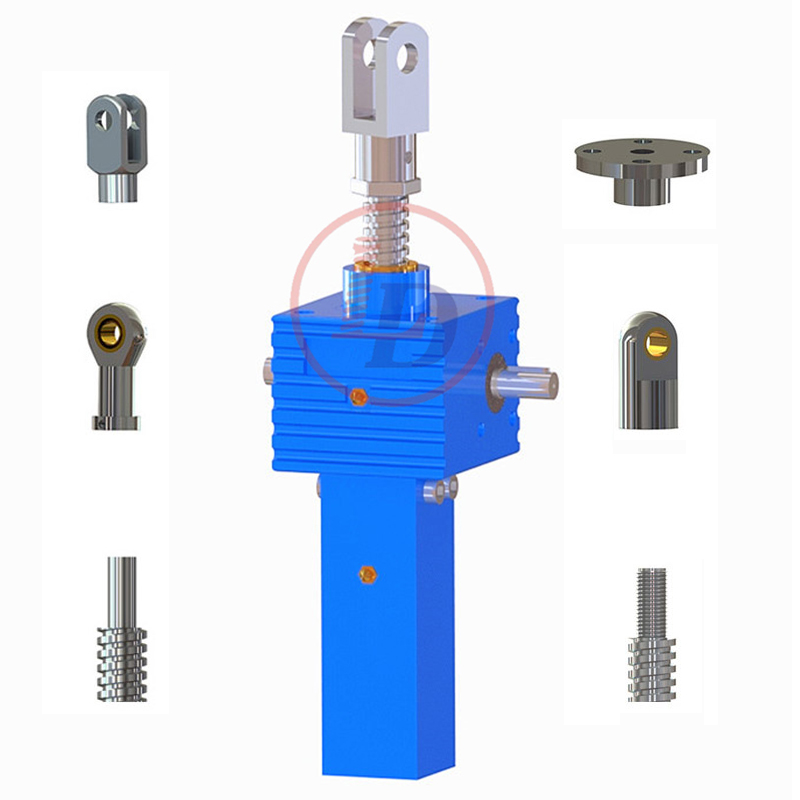

SJA80 Micro Cubic Mechanical Screw Jack Pictures

mini acme screw jack

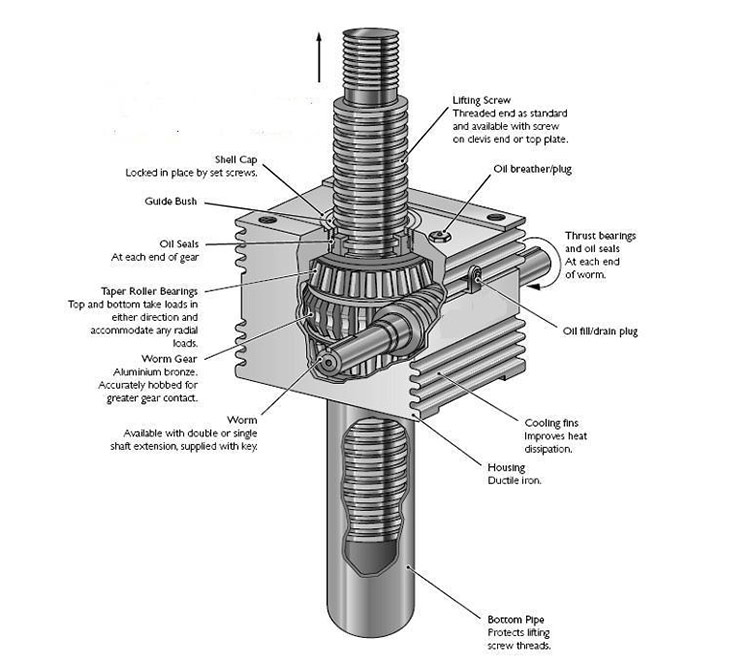

Cubic Screw Jack Structure Picture

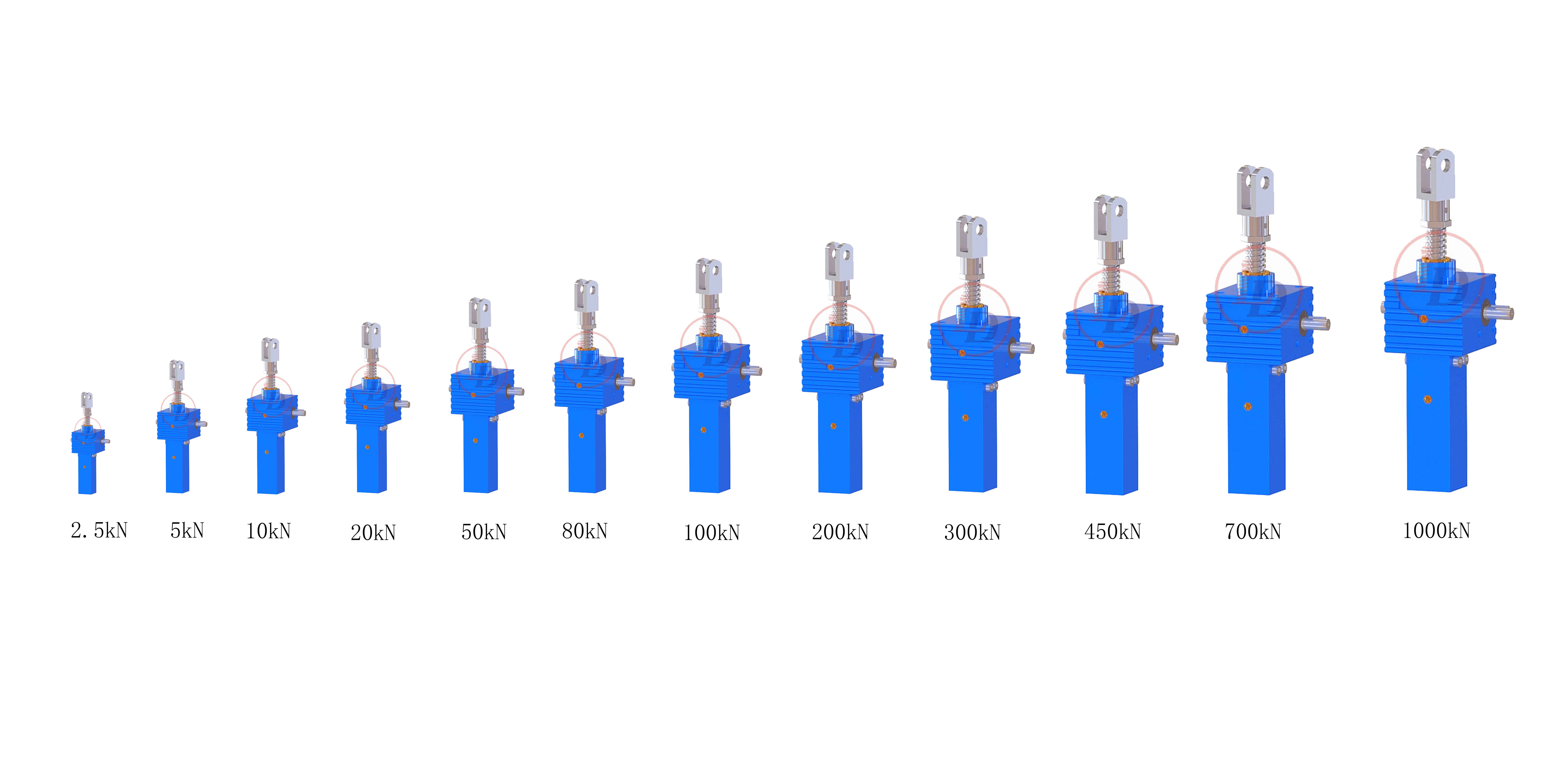

Cubic Screw Jacks

SJA80 Cubic Mechanical Screw Jack Features

Max lifting load: 80kN

Screw diameter 50mm,screw pitch 8mm

High speed ratio:8    Stroke per one put turn: 1mm    Max input power:2.5kW

Low speed ratio:32    Stroke per one put turn: 0.25mm    Max input power:1.5kW

Different screw head types available, special head can be customized

Stroke: 10mm to 6000mm, can be customized as per detailed needs

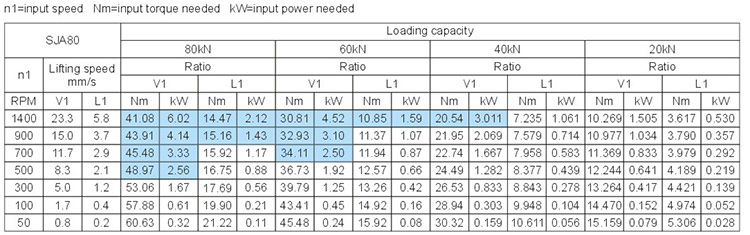

SJA80 Cubic Mechanical Screw Jack Specification

Cubic Screw Jacks

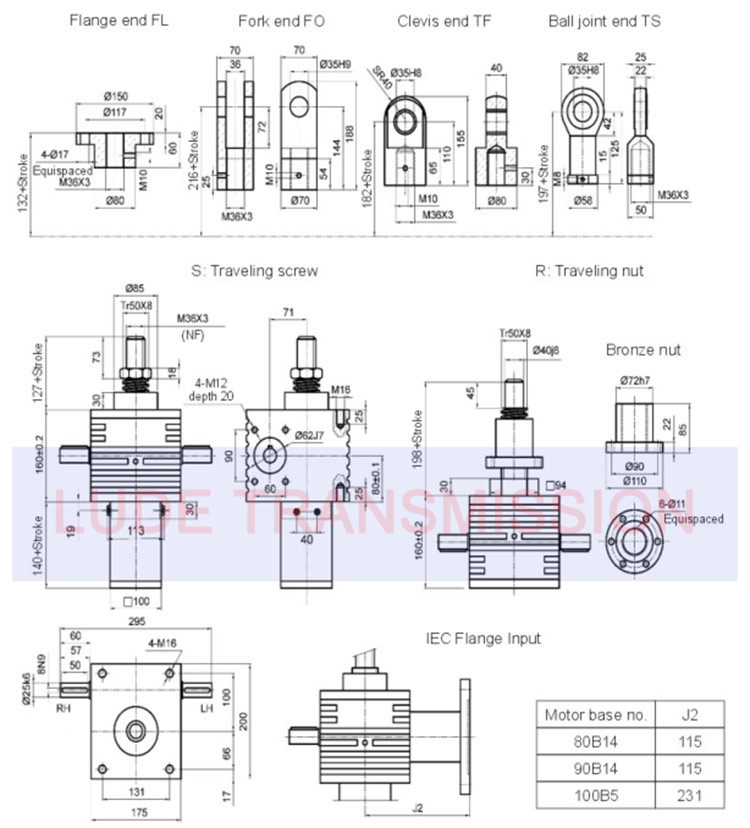

SJA80 Cubic Mechanical Screw Jack Dimensional Drawing



Worm Gear Screw Jack Export packaging

Packing details:

1.Polythene liner bag enclosing screw jack (which is moisture barrier, rust-proof).

2.Polyurethane foam around the screw jack (avoiding shock in delivery) in veneer case.screw jack lifting capacity

3. Or as customers' special request
