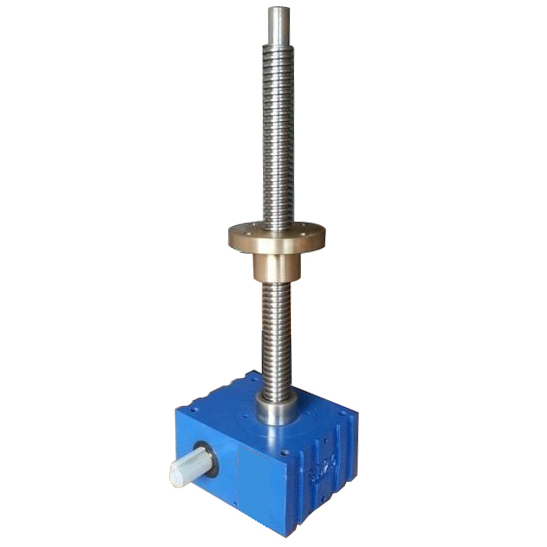

Cubic Machine Worm Gear Screw Jacks

The cubic compact screw jacks offer versatile mounting options and can be mounted upright or inverted to suit specific requirements.
  • Brand:

    Lude
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

mini trapezoidal screw jacks


The cubic screw jacks offer versatile mounting options and can be mounted upright or inverted to suit specific requirements.


Available in acme and ball screw models, the cubic screw jacks feature a clean surface and are ideal for dirty environments. Translating screw and rotating screw models are available in all capacities.

Specifications:

    Capacities from 2.5 kN to 100 kN
    Speeds up to 1,800 RPM
    Operating temperature: 0ºC up to 50ºC
    Trapezoidal screw models as standard
    Translating screw (type 1) and rotating screw (type 2) models available in all capacities

Options:

    Top plate, threaded end, male clevis and female clevis screw ends available
    Ball screw
    Bellows boots
    Hand wheel for manual operation
    Shaft encoder
    Trunnion mount
    Electrical limit switch
    Anti-rotation device (translating screw) using a square cover pipe and square screw end

Technical Data Sheets &CAD

  • SJA Screw Jack

    PDF
