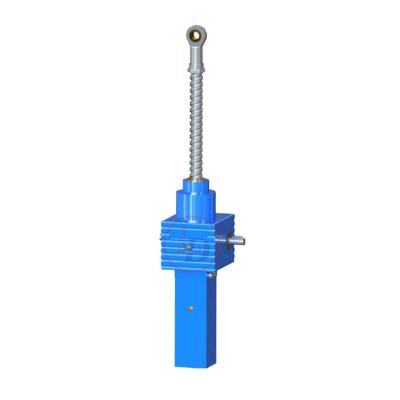

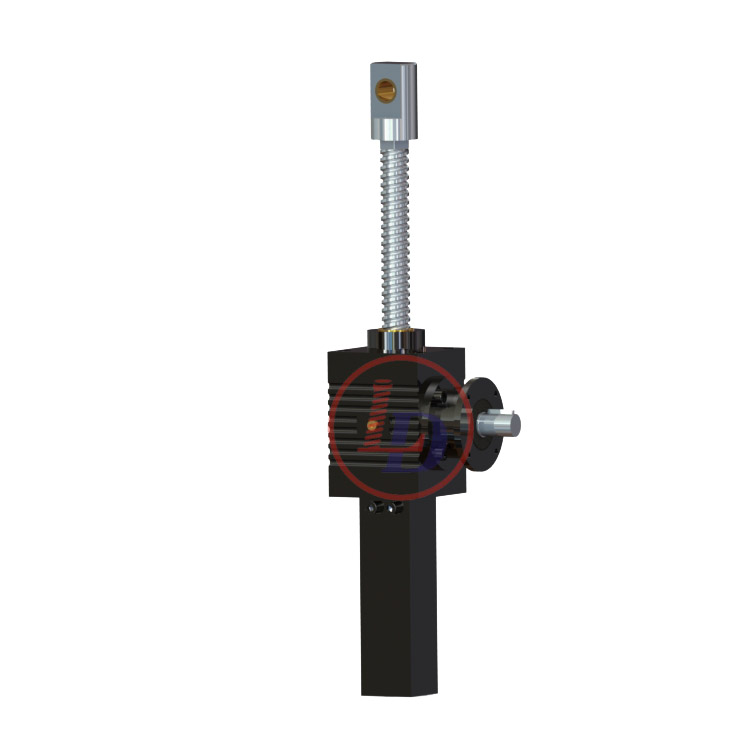

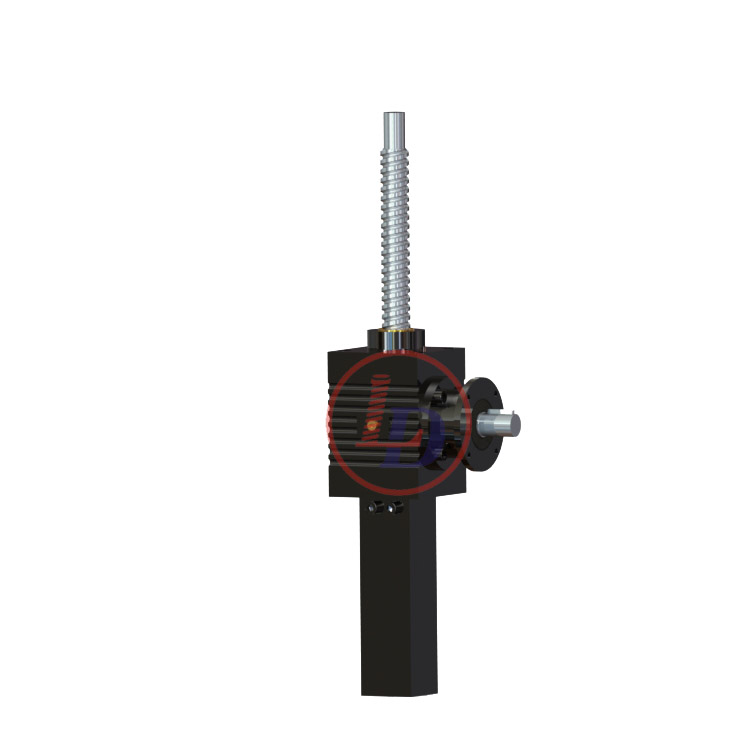

Bevel Gear Ball Screw Jack

Lude’s Bevel Gear Jack, G Series, combines a Cubic Spiral Bevel Gearbox and Screw Jack resulting in a high speed, very accurate solution for lifting-lowering-pushing-pulling applications.
  • Brand:

    Lude
  • Payment:

    TT
  • Product origin:

    ShanDong of China
  • Color:

    customize
  • Shipping port:

    Shanghai / Tianjin /Qingdao
  • Lead Time:

    25/35
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

Lude's Bevel Gear Ball Screw Jacks are especially suitable for high speed, high accurate, and high-frequency applications. 1, 2 and 3 shaft right angle gearbox configurations are available. Some applications may require holding torque due to system efficiency.

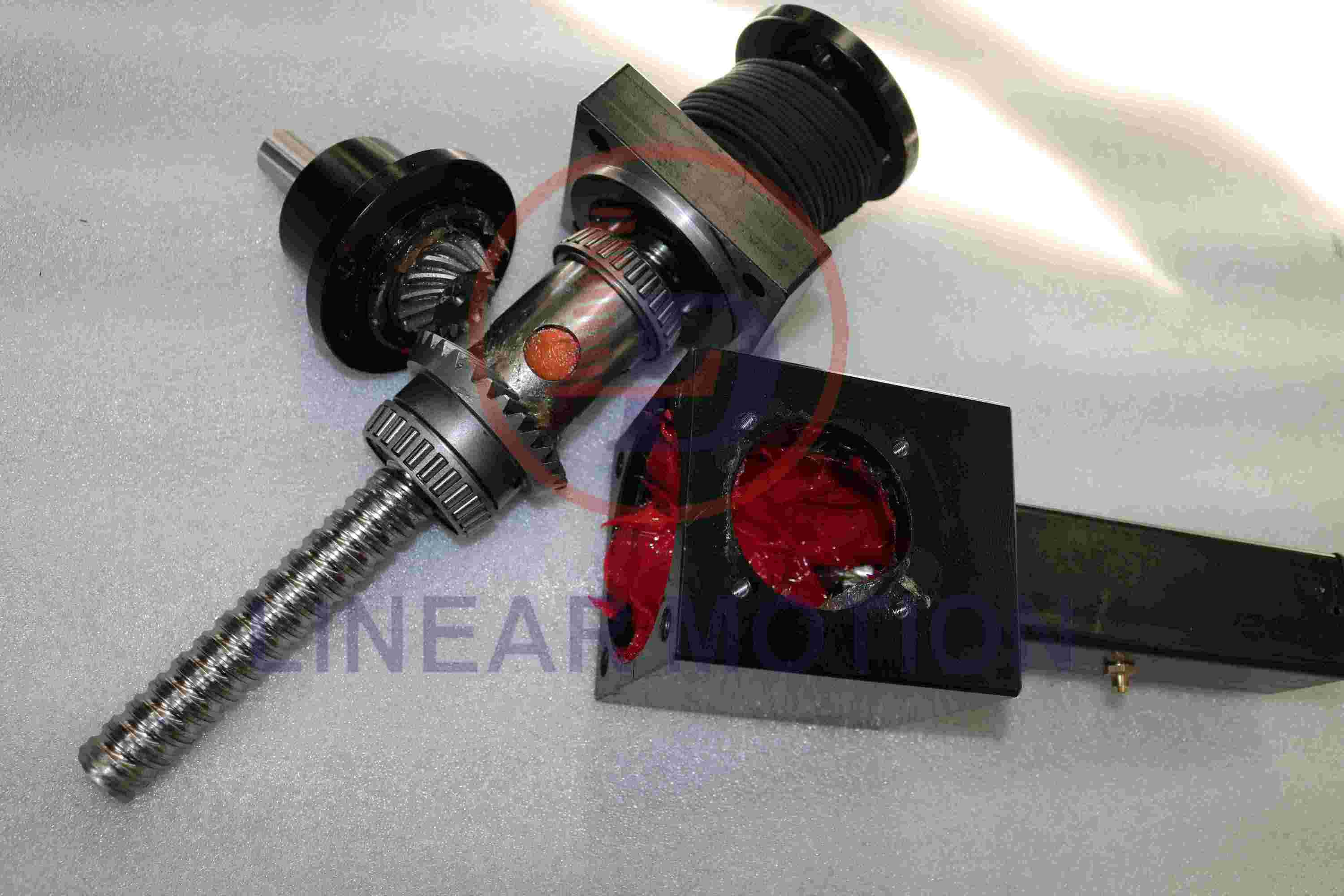

All high bevel gear screw jacks are equipped with hardened, sharpened, and spiral toothed bevel gear transmissions for high lifting speed and greater duty cycle.


Technical Data Sheets &CAD

  • G Series Bevel Gear Screw Jack

    PDF
