Manual Worm Gear Table Lift

About Manual Worm Gear Table Lift, we offer models 1ton,  2.5ton  and 5ton screw jack mechanism.
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Qingdao/Tianjin/Shanghai
  • Lead Time:

    20-30 days after payment received
follow us :
  • Product Details

  • Photo


Brief Instruction

Lifting table is an common appliance of Hand Crank Screw Jack . The screw jack mechanism includes two jacks, shaft,couplings and pillow blocks sometimes when shaft is very long. We offer 1ton,  2.5ton  and 5ton screw jack mechanism.

Let's see SWL2.5T as an example which is for a France customer.


SWL2.5T Manual Worm Gear Table Lift Parameters:
1.Load capacity:200kg

2.Worm ratio:6

3.Stroke:300mm

4.Screw size:40*7mm

5.distance between two jacks:1500mm


SWL2.5T Hand Crank Screw Jack Mechanism Outline Drawing:

Hand Crank Screw Jack


More Hand Crank Screw Jack

If you need such hand crank screw jacks for tables,here are three questions for you:


1. what is the total load for the screw jack mechanism?

2.what is the central distance between two jacks?

3.what is the screw length?

Hand Crank Screw Jack



With your answers, we can help you choose suitable model and send the drawing for final confirmation.


You can see how the Manual Worm Gear Table Lift mechanism work from the below video:


Application Scenarios for Manual Worm Gear Table Lift

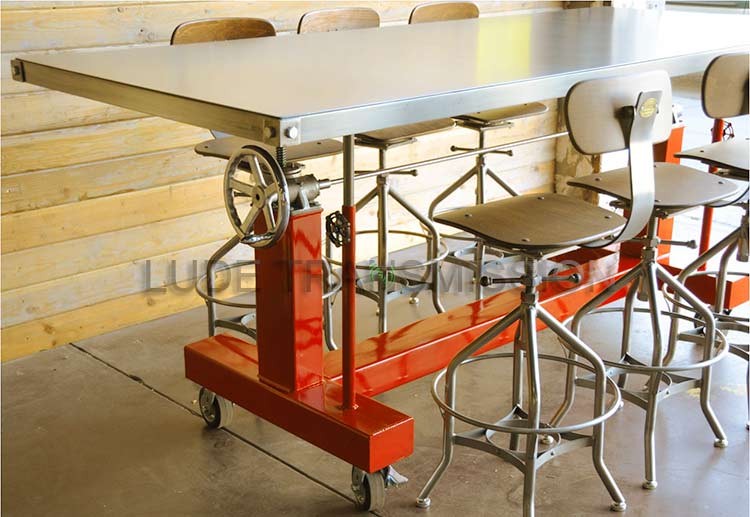

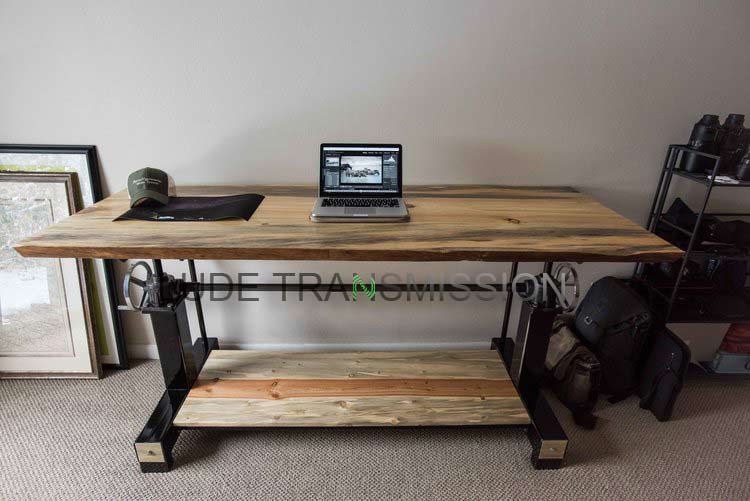

crank table screw liftmanual worm gear table lift

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
manual screw Jack Lift
Hand wheel Worm Gear Screw Jack
Hand wheel worm gear screw jack is composed of hand wheel or hand crank and a complete set worm gear screw jack with internal worm and worm gear sets, standard hand wheel or hand crank.
manual worm gear screw jack lifts
Hand Wheel Screw Jack with Low Price
screw jack is a gearbox assembly (either worm gear or bevel gear) and a transmission product (lead screw, ball screw or roller screw) which through use of a motor is used to convert rotary into linear motion.
worm screw jack with handle
Manual trapezoidal screw jack with handwheel
Manual Screw Jack is made up of hand wheel or hand crank and a worm gear screw jack. It is suitable for applications where electricity or power generators is inconvenient or dangerous, light weight, low duty cycle, low target cost and short travel length.
crank table screw jack
Hand-operated Crank Table Lift Mechanism
Crank table is an common appliance of Hand-operated Screw Jack. We offer 2.5ton  and 5ton screw jack mechanism now.
worm screw jack with handwheel
Hand-operated Translating Screw Jack 5ton
Manual Screw Jack includes a worm gear screw jack and a handwheel or hand crank. It is suitable for applications where electricity or power generators is inconvenient or dangerous, light weight, low duty cycle, low target cost and short travel length.
handwheel screw jack
Trapezoidal Screw Jack with Hand Wheel
Manual Screw Jack is composed of hand wheel or hand crank and a worm gear screw jack.
Hand Operated Screw Jack for Crank Table
Hand Operated Screw Jack for Crank Table
The working principle of the hand operated  worm gear screw jack is that the worm (also called the input shaft) is manually rotated by the hand wheel, the worm wheel is rotated by the worm, and the trapezoidal lifting screw is moved by the rotating worm wheel. The linear motion speed of the  worm wheel manual screw jack trapezoidal lifting screw depends on the thread size and the worm gear speed ratio. Hand Operated Screw Jack is composed of hand wheel or hand crank and a worm gear screw jack.It is ideal solutions for applications where electricity or power generators is inconvenient or dangerous. Our Jack's Advantages: -Self-locking ability -Can be driven directly by hand wheel -Can be customized according user's demand -Compact configuration, small size, lightweight -Convenient installation, flexible operation -High reliability and stability -2 / 3 /4 /8 sets etc. screw jacks to linkage to use  Please see a short video about hand operated screw jack for crank table below,
Hand Crank Table Lift  Screw Jack Mechanism
Hand Crank Table Lift Screw Jack Mechanism
The Crank Handle Screw Jack are ideal solutions for applications where electricity or power generators is inconvenient or dangerous, light weight, low duty cycle, low target cost and short travel length. The working principle of the hand operated worm gear screw jack is that the worm (also called the input shaft) is manually rotated by the hand wheel, the worm wheel is rotated by the worm, and the trapezoidal lifting screw is moved by the rotating worm wheel. The linear motion speed of the worm wheel manual screw jack trapezoidal lifting screw depends on the thread size and the worm gear speed ratio. Hand Operated Screw Jack is composed of hand wheel or hand crank and a worm gear screw jack.It is ideal solutions for applications where electricity or power generators is inconvenient or dangerous.
