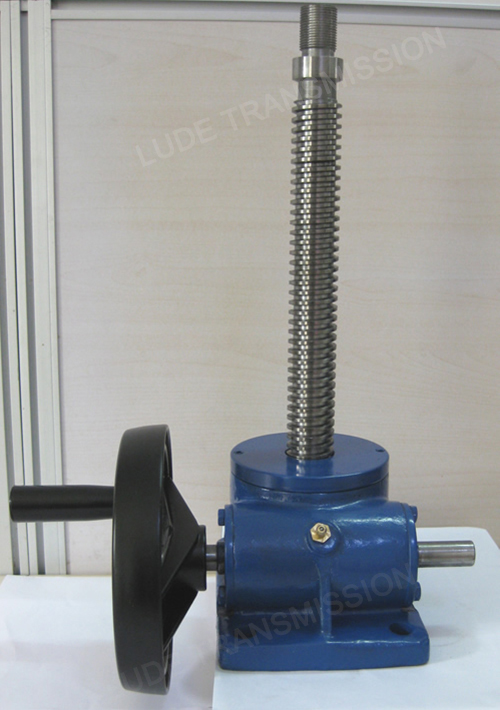

Hand Wheel Screw Jack with Low Price
screw jack is a gearbox assembly (either worm gear or bevel gear) and a transmission product (lead screw, ball screw or roller screw) which through use of a motor is used to convert rotary into linear motion.
Inquiry now
  • Product Details
  • Photo

A screw jack is a gearbox assembly (either worm gear or bevel gear) and a transmission product (lead screw, ball screw or roller screw) which through use of a motor is used to convert rotary into linear motion. They can be used to push, pull, tension, lock, unlock, tilt, pivot, roll, slide and lift or lower loads, anything from a few kilos to thousands of tonnes.



Application Industry:

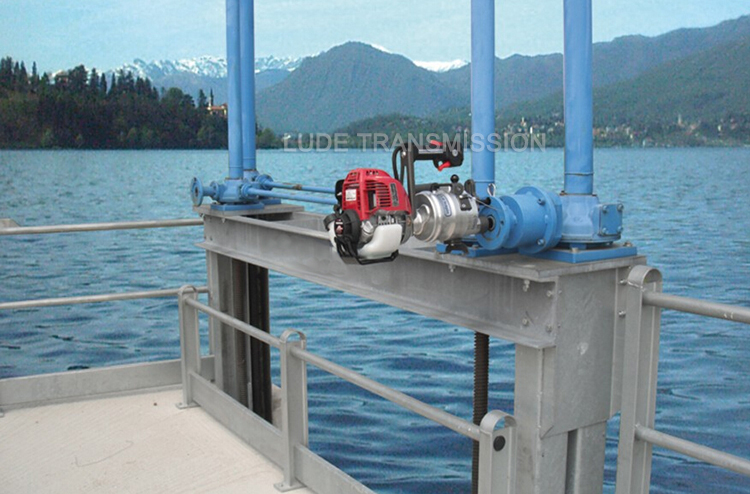

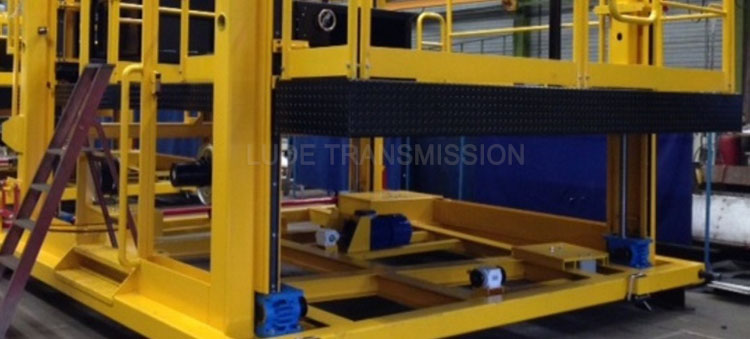

Screw jack is applied to all fields for lifting or pulling, such as Aircraft maintenance platform, Solar plate, machinery, metallurgy,
water conservancy, medical treatment, chemical industry, culture and hygienist etc.

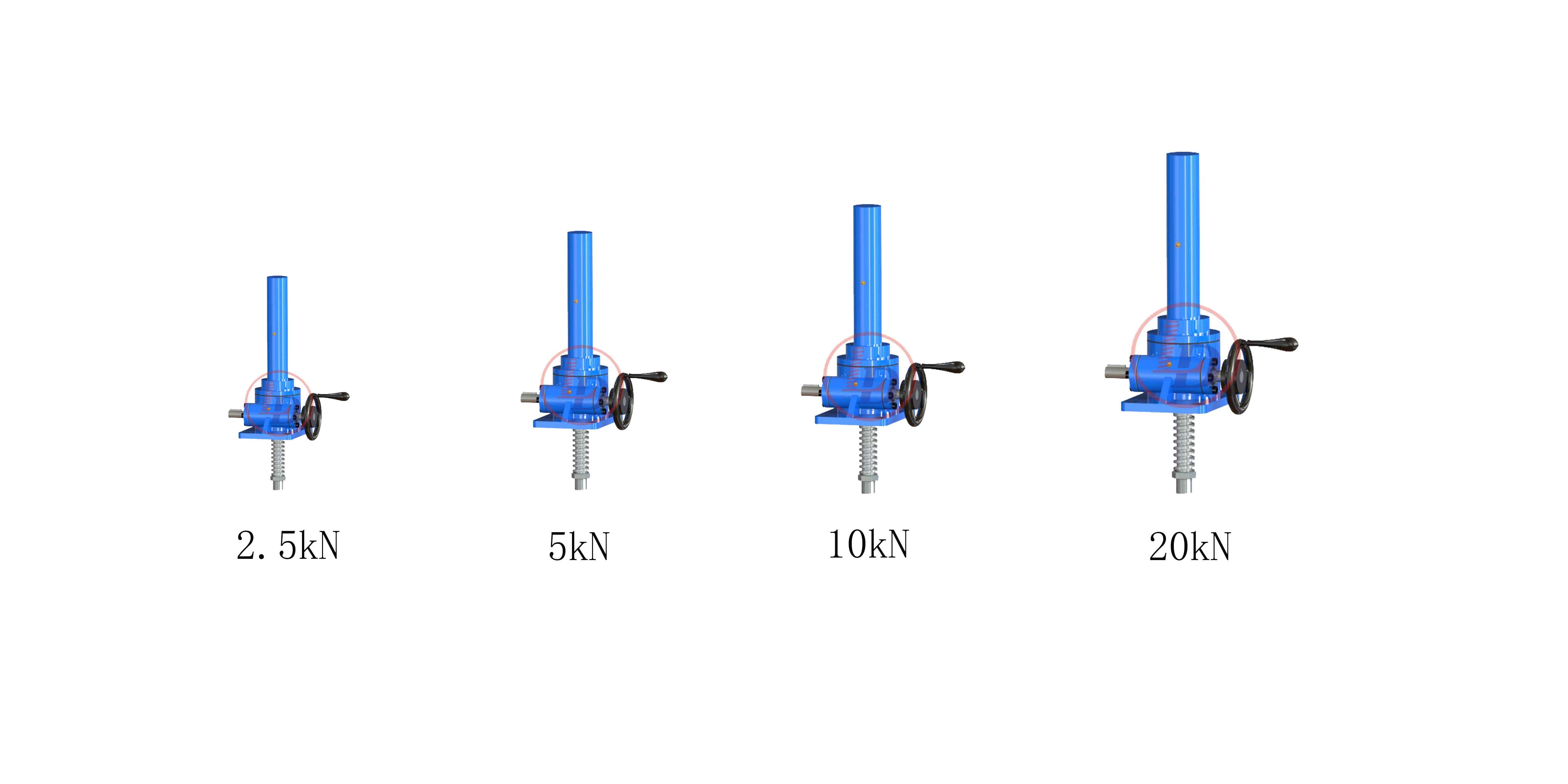

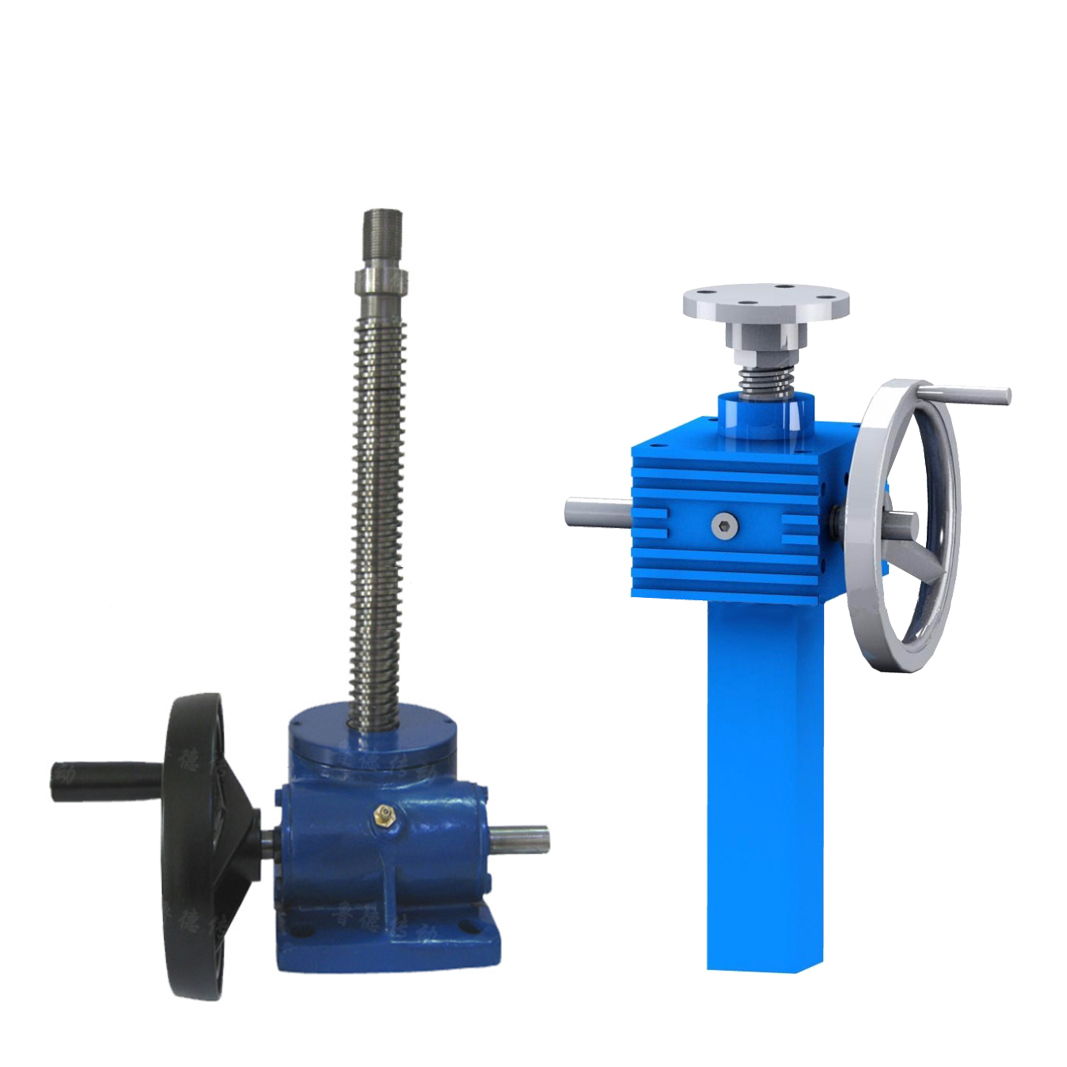

More hand Wheel screw jack


screw jack lifterhand operated screw jack


manual worm screw jack

hand-operated screw jack
