screw jack with travelling nut for motorized worm screw jack

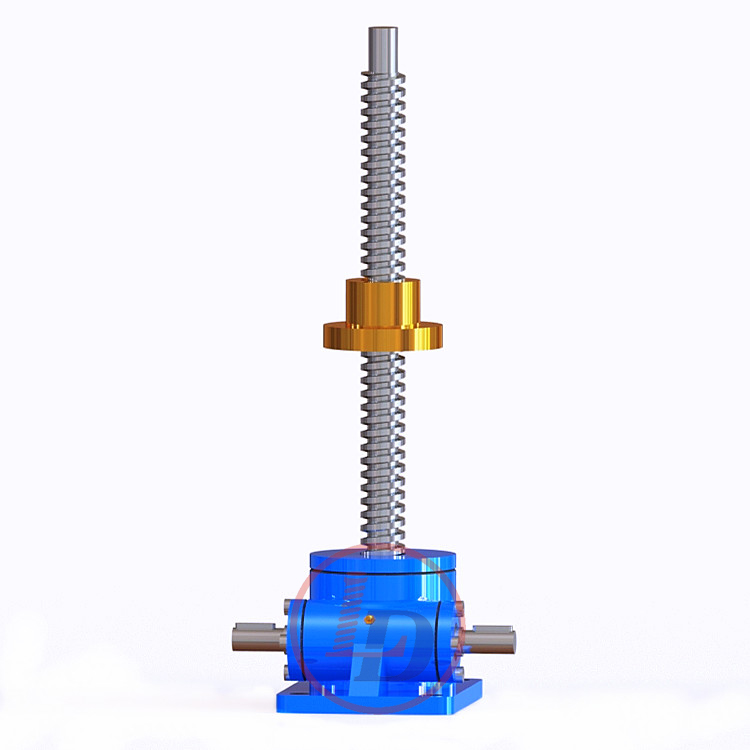

Travelling Nut Screw Jacks ,or Rotating Screw Jacks have a fixed length lifting screw that rotates . Loads are attached to a flanged “traveling” nut that translates up and down the length of the rotating screw. This type of jack is ideal for applications that cannot accommodate a screw protection tube or that require a flush mount.

Brand:
Lude
Payment:
TT
Product origin:
ShanDong of China
Color:
customize
Shipping port:
Tianjin or Qingdao
Lead Time:
20 days after the deposit

Inquiry now

follow us :

Product Details
Video
Case
Download

This design incorporates a lifting screw keyed to the worm gear as a single unit, forcing the lifting screw to rotate in the gearbox, but not translate. A traveling nut, running on the rotating screw generates linear motion for the attached load. This type of jack is ideal for applications that cannot accommodate a screw protection tube.

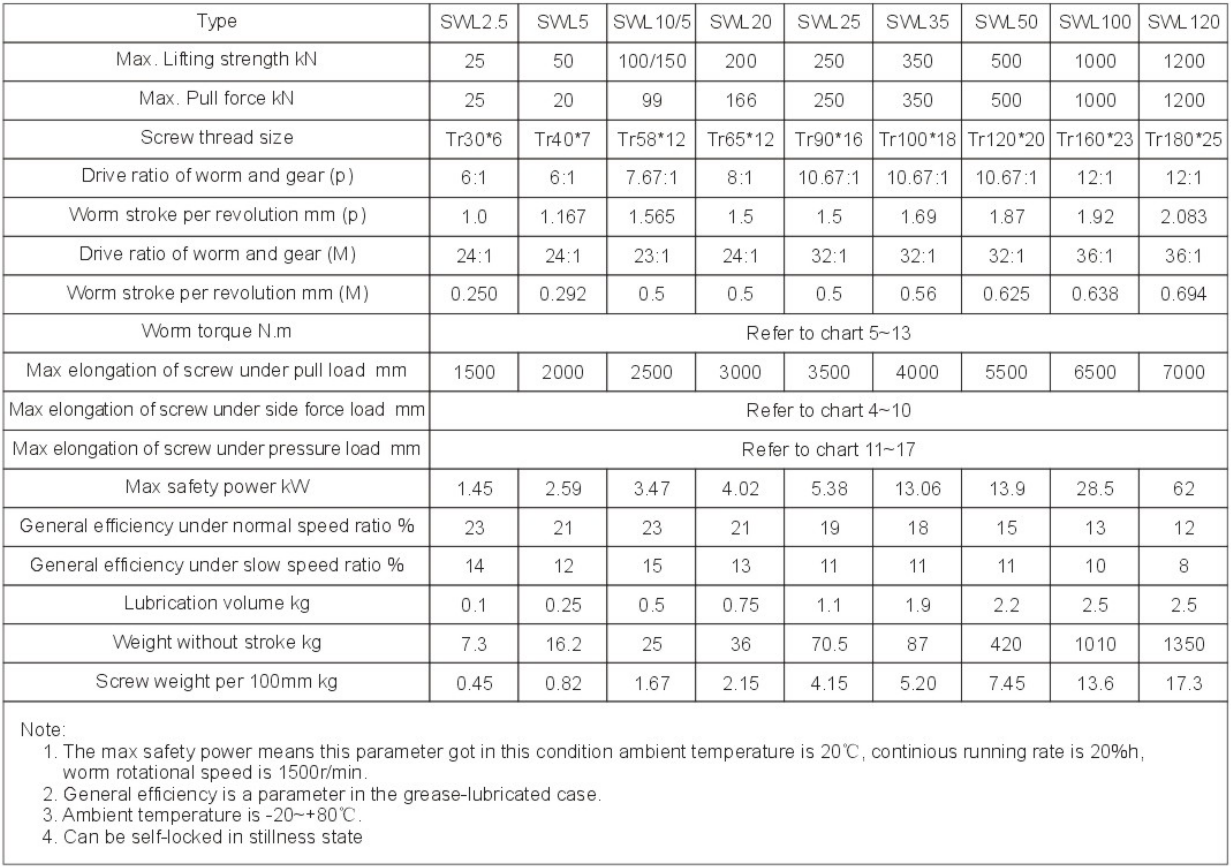

Technical Data Sheets &CAD

SWL Series Screw Jack

PDF

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : screw jack with travelling nut for motorized worm screw jack
