SWL Series Worm Gear Screw jack

SWL Series Worm Gear Screw Jack is a basis jack-up part, accomplish the functions such as lifting , dropping ,pushing and inverting through worm gear drives screw .

  • Brand:

    Lude
  • Payment:

    T/T, L/C, Credit Card
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Tianjin/Shanghai/Qingdao
  • Lead Time:

    About 15 days after payment received
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

Main features for SWL screw jack

SWL screw jack is suitable for low speed and low frequency.

Main components:Precision trapezoid screw pair and high precision worm-gear pair.

1.Economical:

Compact design,easy operation,convenient maintenance.

2.Low speed and low frequency

Be suitable for heavy load,low speed,low service frequency.

3.Self-lock

Trapezoidal screw jack has self-lock function,it can hold up load without braking device when screw stops traveling.

4. Widely applied in industries such as machinery, metallurgy, construction and hydraulic equipment.

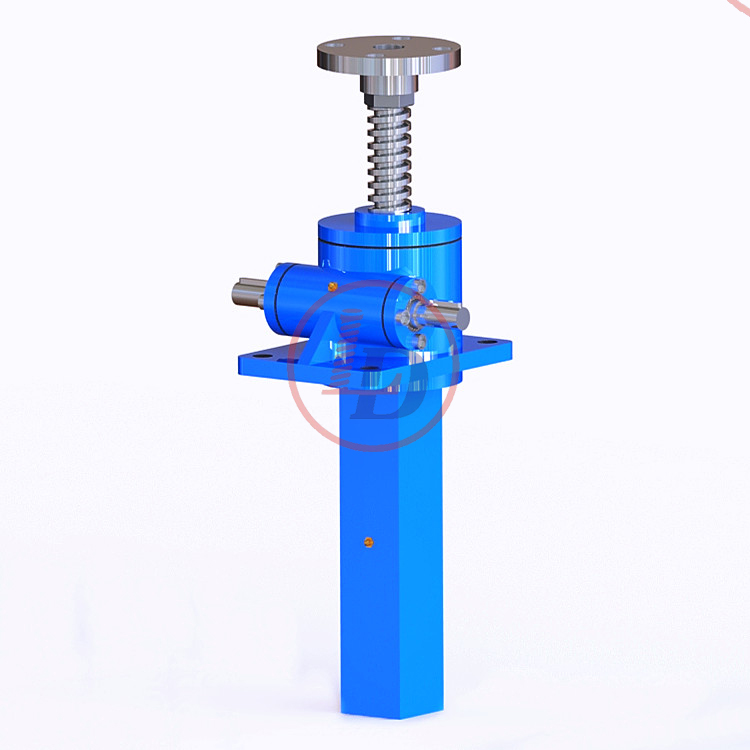

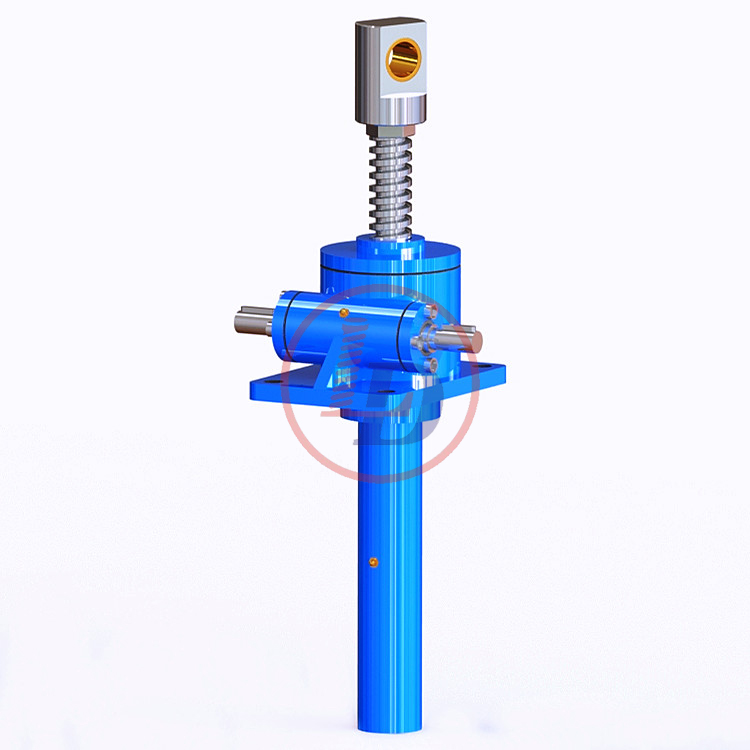

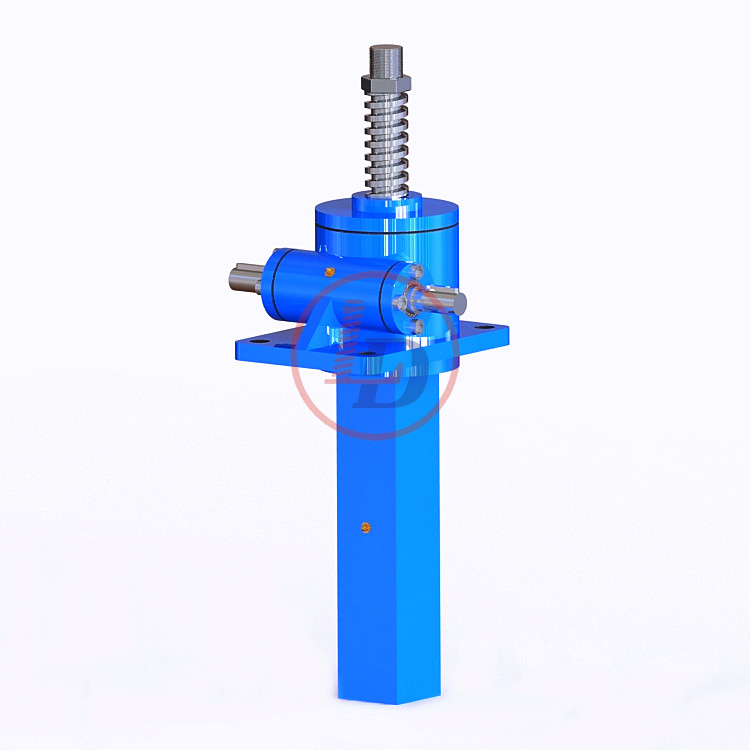

5. Top End: top plate, clevis end, threaded end, plain end.




Technical Data Sheets &CAD

  • SWL Series Screw Jack

    PDF
