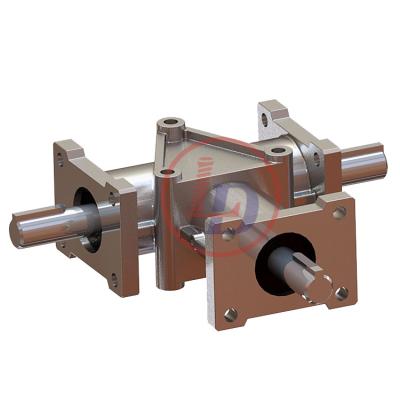

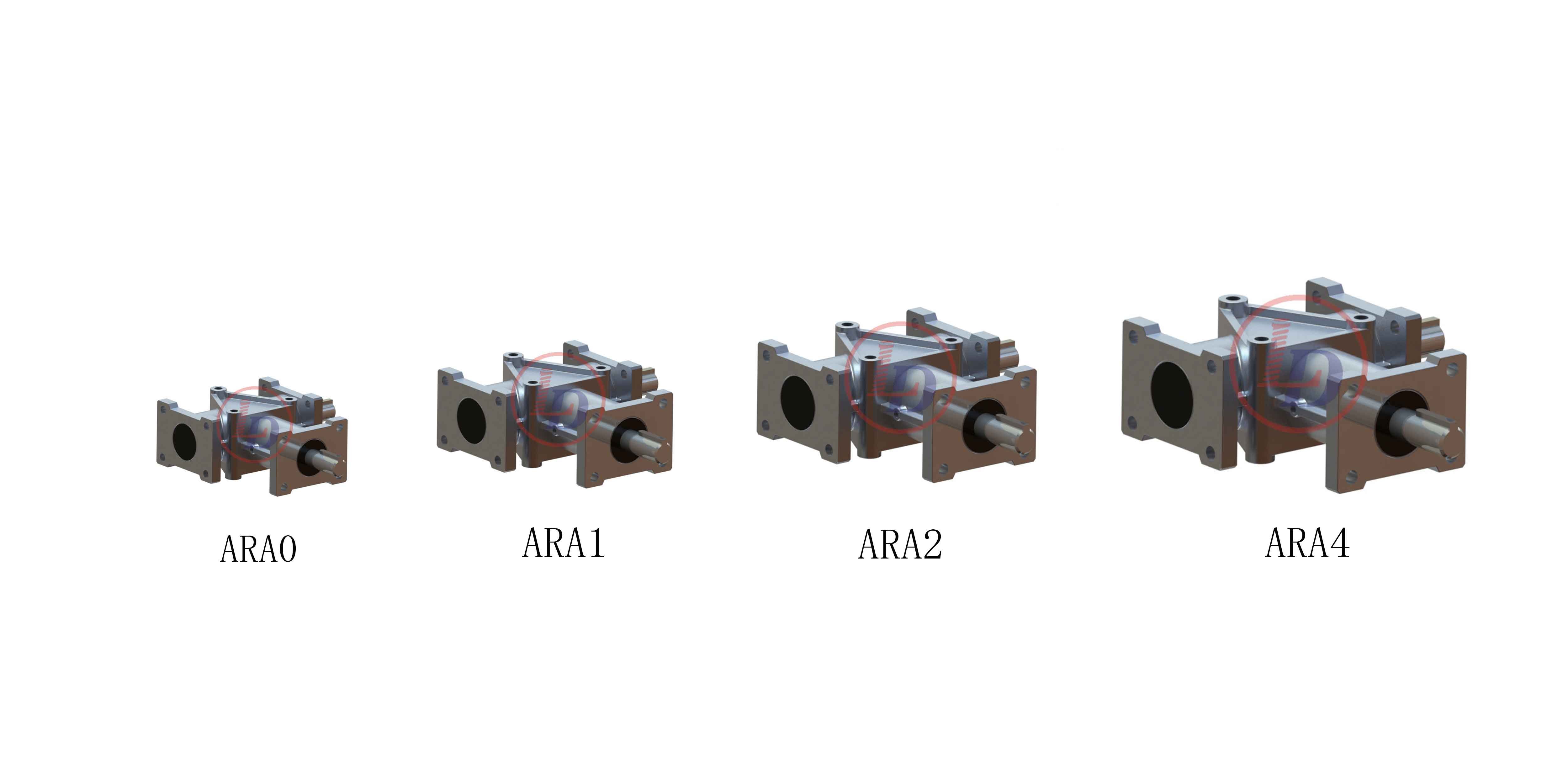

ARA series high-precision steering boxes of different dimensions

Mini 90 Right Angle Bevel Gear Reducer

  • Brand:

    Lude
  • Product origin:

    ShanDong of China
  • Color:

    customize
  • Shipping port:

    Shanghai / Tianjin /Qingdao
  • Lead Time:

    25/35
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

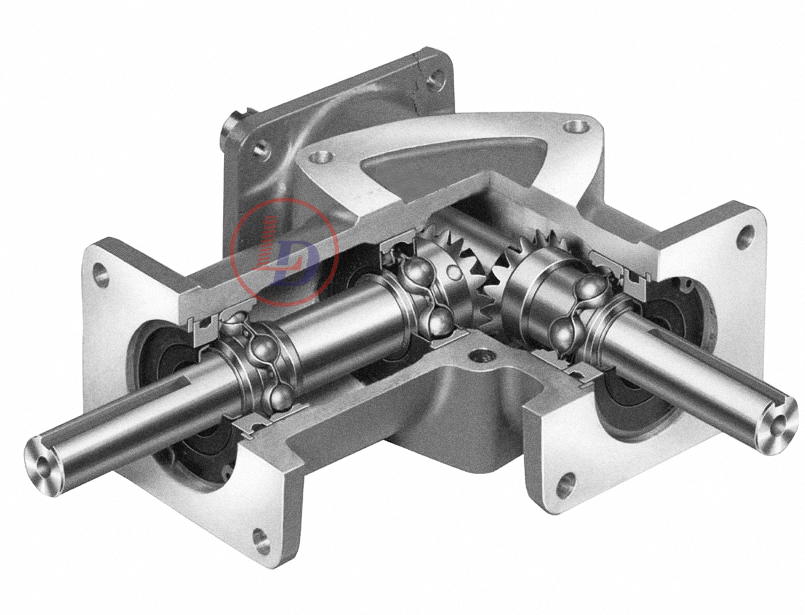

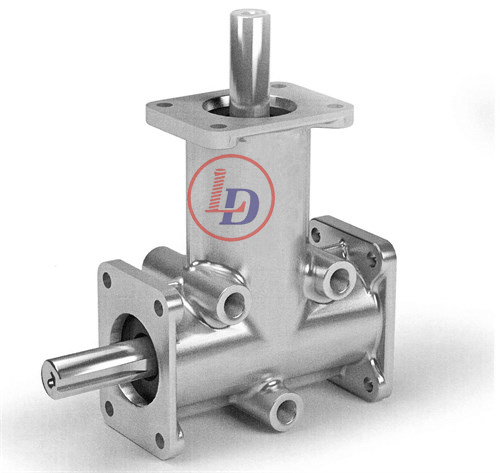

ARA series of spiral bevel gear steering box

Features:small and complete installation, light weight, aluminum alloy shell, shaft need to steel for corrosion resistance when ordering.The lubricant is added before out of factory.

ARA series modular steering box adopts scientific design, features, is indispensable to transmission equipment industry products.Excellent performance, light weight, small volume, high torque;strong case, use the high quality aluminum alloy die casting;nice appearance, reasonable design.Wide applicable scope, large torque, low noise, long service life.

Power: 0.018KW~4.94KW
Torque:6.95~46.8Nm
Speed ratio:1:1 and 2:1


Details
1.Case: High rigidity FC-25 cast iron
2.Gears: The material is high quality high purity steel alloy 20CrMnTiH with carburizing and quenching treatment and grinding process.
3.Main shaft: Adopt steel alloy to temper, high hanging load capacity
4.Bearing: Heavy load capacity taper roller bearing
5.Oil seal: The oil seal with double sealing lips, it has ability of dust proof and oil leak proof.

Technical Data Sheets &CAD

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
1

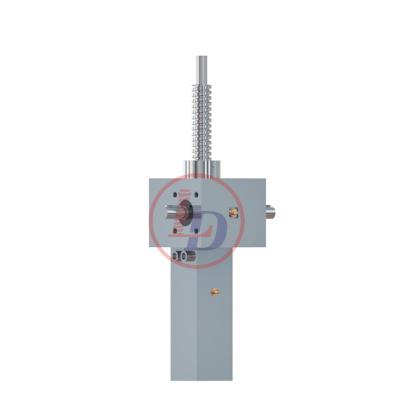

10 ton custom cubic screw jack for lifting model SJA100
Cubic screw jack has the small size, compact and robust structure  and mounting versatility.

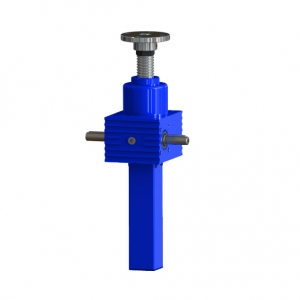

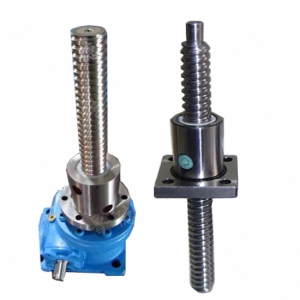

acme screw lift jacks
Screw Jacks SJA Series
Trapezoidal acme screw jacks are popular among daily use. Its features are that  it is simple to maintain, low noise, and can work normally at high / low temperature, corrosion / explosion harsh environment,
AT/ATB High Precision Spiral Bevel Gearbox
AT/ATB High Precision Spiral Bevel Gearbox
A brand new AT/ ATB series gearboxes from Lude Transmission are high precision right angle spiral bevel gearboxes with various housing design: in stainless steel (AT Series) or Carbon steel (ATB Series).
12 volt linear actuators for sale
LAP Electric Linear Actuator with AC motor
The Electric Linear Actuator can be driven by DC motor 12/24/36/48V, single phase / three-phase AC motor 220/380V, stepper motor.

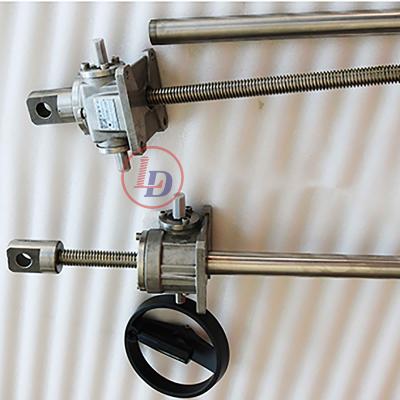

micro worm gear screw jack
Small size acme screw jack 80KN
SJA80 mini screw jack is of trapezoidal screw and has compact structure.

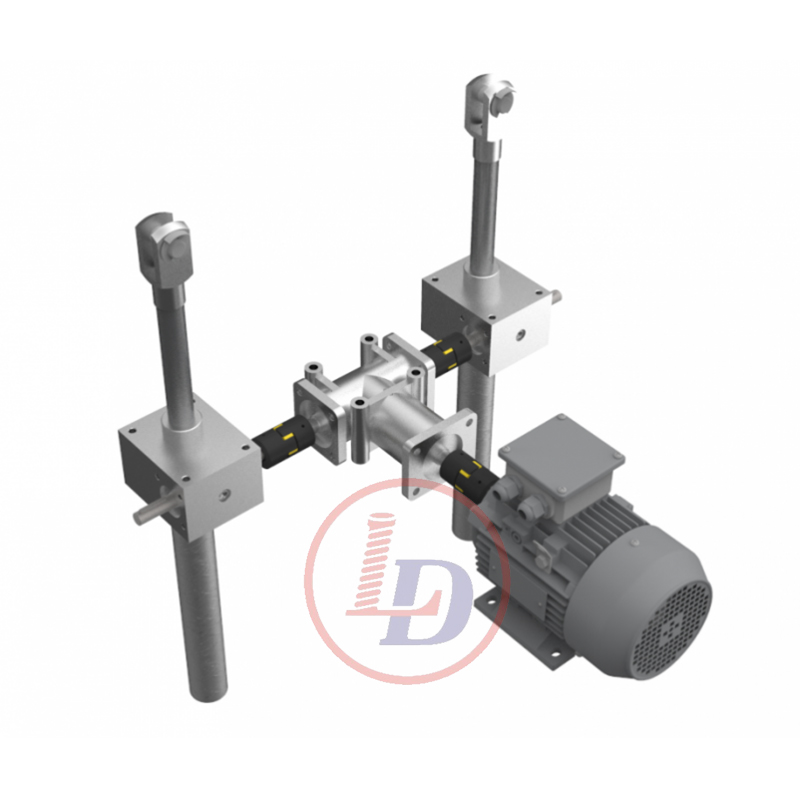

 Automatic Screw Jack Lift System
Good Performance Screw Jack Lift System
Screw jack lift system structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shaftings.  Screw Jack System Features: 1. Heavy duty, self-locking, positioning precision, uniform lifting speed, fully synchronization, easy installation, easy operation 2. Two screw jacks system, three screw jacks system..forty screw jacks system. 3. Extremely high capacity requirements of need very precise up or down control. It's of high mechanical, they are an excellent choice when hydraulic, pneumatic or chain systems are prohibitive choices. 4. Widely used in wood working machines, plastics processing machines, textile machines, assembly equipment in the automobile and aircraft industries, food and beverage production equipment as well as packaging machines.
1

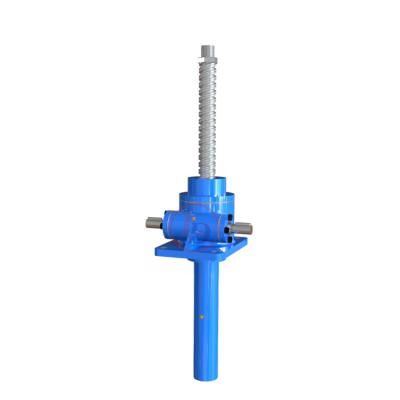

Hot sale Inverted Clevis Machine Screw Jack
