Mechanical Screw Jack With Safety Nut

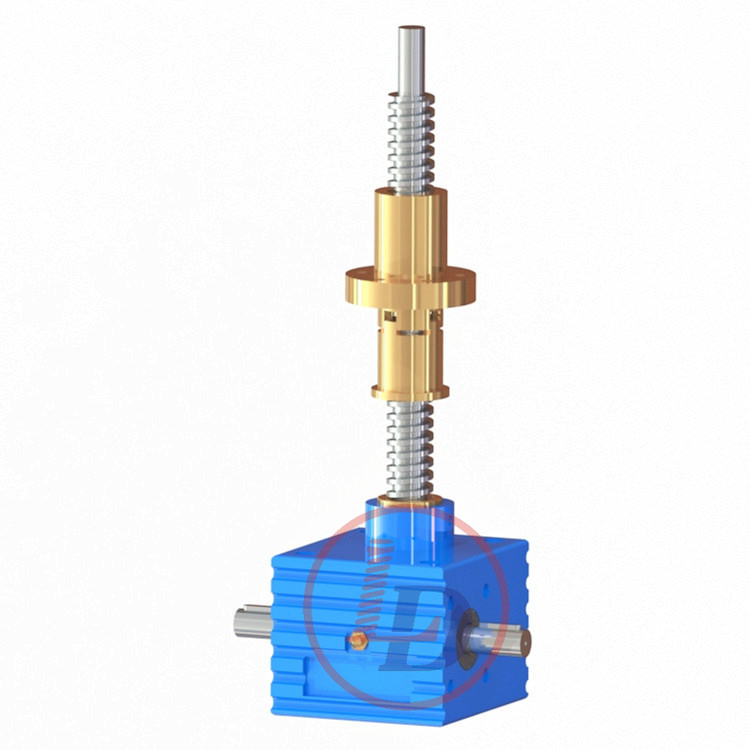

A safety nut on a screw jack is an auxiliary nut, which follows the “lifting nut” on a rotating screw jack or the worm gear on a translating screw jack.
  • Brand:

    Lude
  • Product origin:

    ShanDong of China
  • Color:

    customize
  • Shipping port:

    Shanghai / Tianjin /Qingdao
  • Lead Time:

    25
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

What Does A Safety Nut Do?

A Safety Nut Provides 2 Safety Roles:

1) In the event of excessive wear on the nut thread the load will be transferred from the standard nut to the safety nut. This will also provide visual wear indication as the gap between the safety nutdecreases to zero as the standard lifting nut wears.


2) In the unlikely event of catastrophic nut thread failure the safety nut will sustain the load.

Should the screw thread on the lifting nut or gear fail or wear out then the safety nut will support the load. The safety of industrial and human cargo is therefore improved.


Visual Wear Indication

The safety nut can be used to monitor the wear on the lifting screw threads on the lifting nut (rotating screw jack) or worm gear (translating screw jack). As the lifting screw thread on the nut / gear wears the gap between the safety nut and the nut / gear reduces to zero. This allows for wear monitoring and scheduling of preventative maintenance before parts become worn out.


Technical Data Sheets &CAD

  • SJA Screw Jack

    PDF

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
Hot Sale Rotating Screw Jack
Hot Sale Rotating Screw Jack
Rotating Screw Jack is common used and has the advantage of low cost and heavy load.
Heavy Duty Linear Actuator Electric with AC Motor
Heavy Duty Linear Actuator Electric with AC Motor
A linear actuator is a mechanical device that converts energy (power from air, electricity or liquid) to create motion in a straight line; contrasted with circular motion of a conventional electric motor. It can also be used to apply a force. Types of motion include: blocking, clamping, ejecting, lifting, descending, pushing or pulling. Features Trapezoidal thread The motor is connected to the threaded spindle via a worm gear. Depending on the model, fixing via the joint head and rotary bearing console or rod end bearing and eye gear flange Solenoid switch and rotary encoder available Trap nut safety system for trapezoidal screw threads available ACME Screw Linear Actuator Main Datas Load capacity:max 2.5ton     Max.lifting speed:93mm/s  Motor power:380/220VAC
small ball screw jack
Worm Gear Mini Ball Screw Lift 15ton
Worm Gear Mini Ball Screw Lift has advantages of small volume and high efficiency.
T series gearbox
T Series 90 degree right angle spiral bevel gearbox
T Series Spiral bevel gear units
ball screw jack
5 ton Manual Ball Screw Jack Manufacturer
JWB Series Ball Screw jacks are suitable for high speed , high efficiency and excellent performance .
rotating lead screw actuator

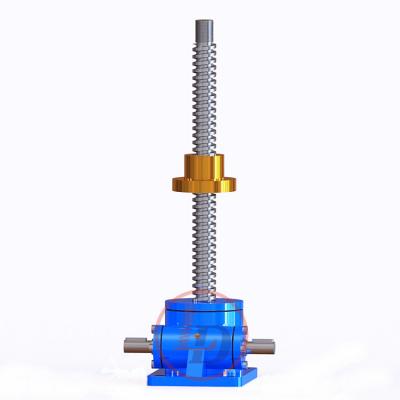

Lead screw jack with traveling nut
