Energy Saving Electric Linear Actuator with DC Motor

The electric linear actuation is to create motion in a straight line, in contrast to the circular motion actuator of the traditional electric motor.

  • Product origin:

    Dezhou
  • Color:

    Blue or customized
  • Shipping port:

    Tianjin/Qingdao/Shanghai
  • Lead Time:

    20 days after order confirmed
follow us :
  • Product Details

  • Photo

Electric Linear Actuator  are the perfect solution when you need simple, safe and clean movement with accurate and smooth motion control. We mainly provide industry use electric lift cylinders.




acme screw linear actuator


  •     Ball screw thread or trapezoidal thread
  •     The motor is connected to the threaded spindle via a worm gear.
  •     Depending on the model, fixing via the joint head and rotary bearing console or rod end bearing and eye gear flange
  •     Solenoid switch and rotary encoder available
  •     Trap nut safety system for trapezoidal screw threads available



Made of the high intensity and high wear-endurance material, assembled with high precision components, together with advanced designing concept of the housing, our Electric Linear Actuator  are mainly characterized by the high load capacity, shock-resistance, low noise, long lifetime, hence they can work in the harsh environment normally.

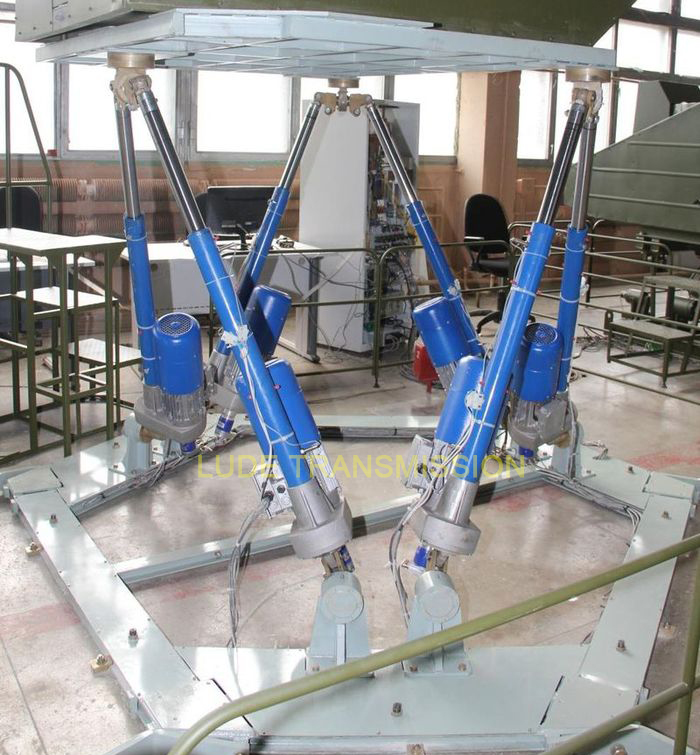

Electric Linear Actuator  with DC motor application

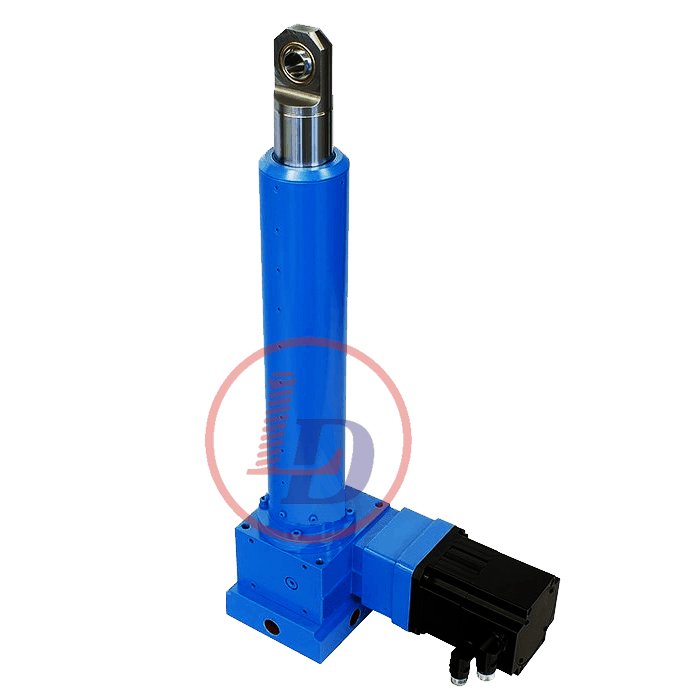

linear actuator with DC motor
