Inverted Manual Screw Jack 5ton for Sluice Gate

The manual screw jack is ideal solutions for applications where electricity or power generators is inconvenient or dangerous, light weight, low duty cycle, low target cost and short travel length.
  • Brand:

    Lude
  • Item No.:

    SWL2.5
  • Payment:

    T/T
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Tianjin/Shanghai
  • Lead Time:

    15 days after payment received
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

The manual screw jack is ideal solutions for applications where electricity or power generators is inconvenient or dangerous, light weight, low duty cycle, low target cost and short travel length.

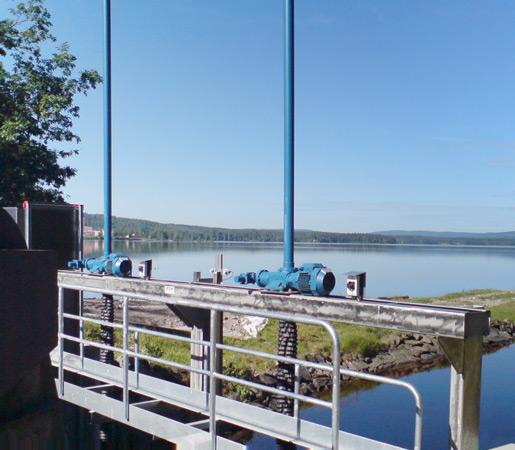

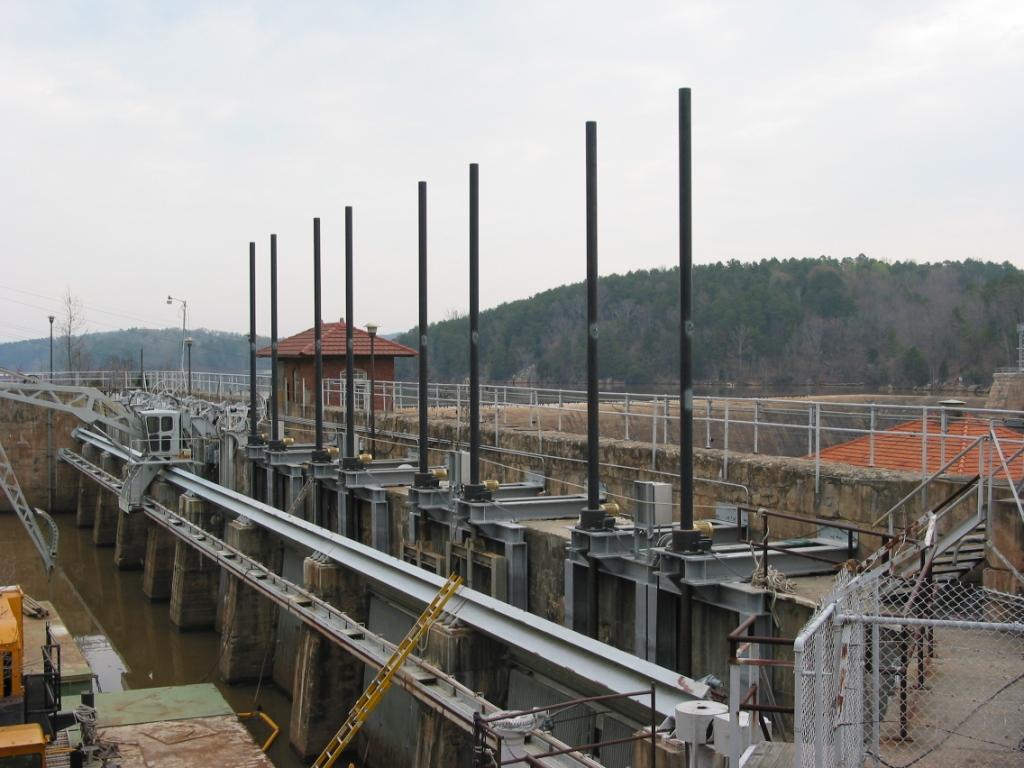

Inverted manual screw jacks are widely used for sluice gate due to environment and no people to take care of the electric motors. Such screw jacks usually have female clevis end or clevis end.  The common models are SWL2.5 and SWL5.



The Sluice gate manual screw jacks have some features:

1.inverted translating type

2.female clevis end(forked head) or clevis end is common to see

3.self-locking function is needed

4. a handwheel is needed




Sluice Gate Screw Jack Example SWL2.5  made for a Philippines customer

Main Parameters:

Lifting Capacity: 500kg

Stroke: 500mm

Specs as follows: TR 30x 6

Screw movement type inverted

Screw Top end: forked head

Handwheel diameter:30mm


The Following is the outline drawing.





At last, let's see how the manual screw jack works in the below video
