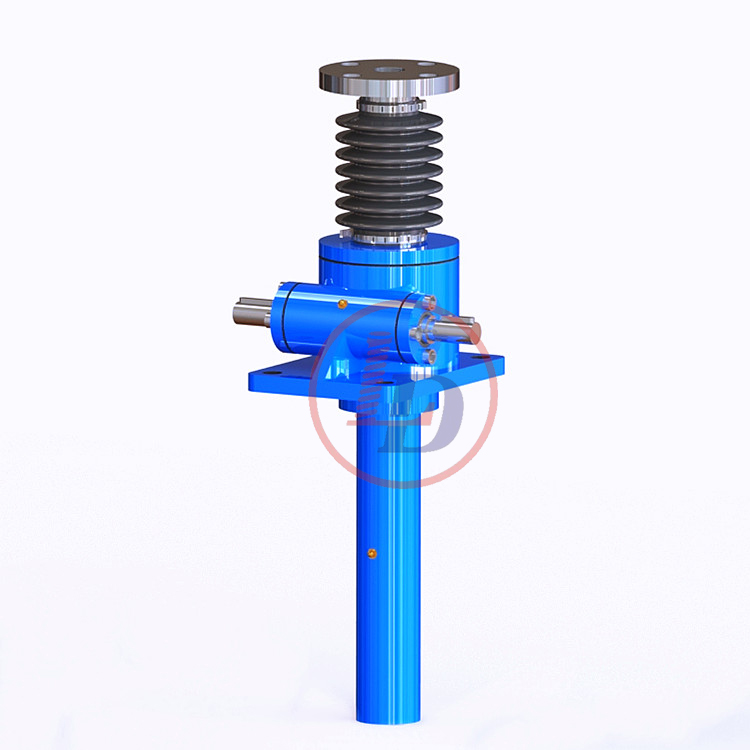

Worm Gear ACME Screw Jack 5ton

JWM screw jack is common trapezoidal screw jack, it has features of low speed and low frequency.
  • Item No.:

    JWM 050
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    China Mainland port
  • Lead Time:

    15 days after deposit received
follow us :
  • Product Details

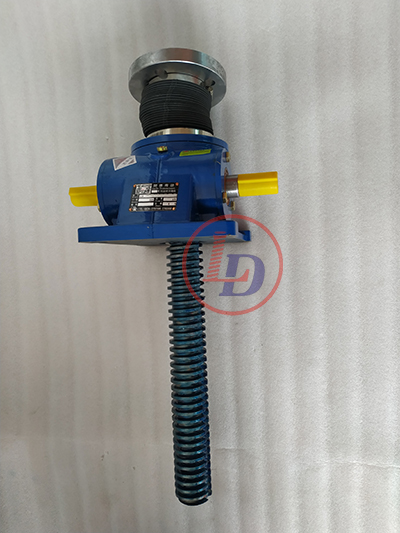

  • Photo

JWM screw jack is common trapezoidal screw jack, it has features of low speed and low frequency.

The load capacity can be from 1ton to 100 ton.

Acme screw jack 1ton to 100 ton


ACME Screw Jacks  Features

•Low cost and easy operation
•Suitable for low speed, big load and low frequency

•Self-lock

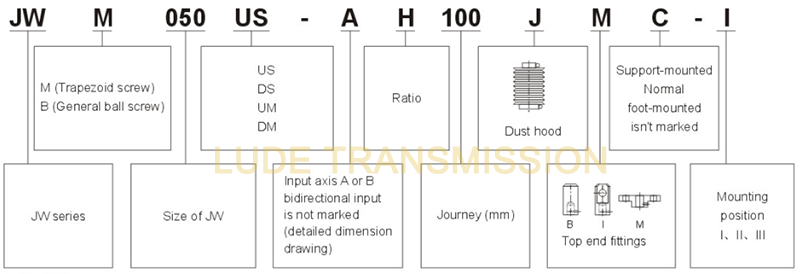

JWM050 ACME Screw Jacks Parameters

Maximal load: 49kn

Outer screw diameter: 40mm

Small screw diameter: 30.5mm

Screw Pitch: 8mm

High speed ratio: 6      Permissible output maximal power: 2.0kW

Low speed ratio: 24    Permissible output maximal power: 0.63kW

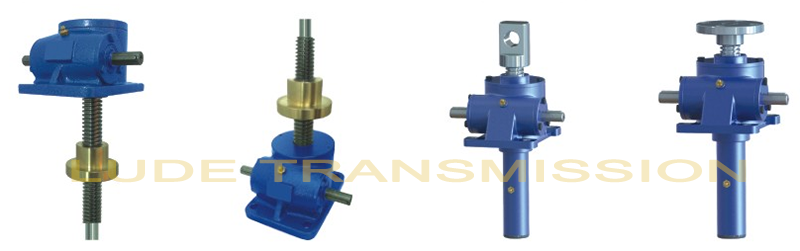

Translating type with and without anti-rotation


Rotating type

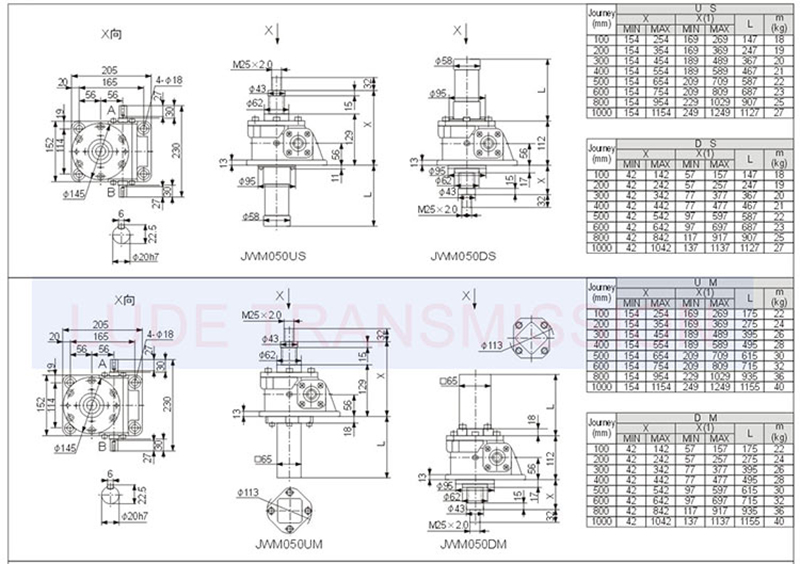

JWM050 ACME Screw Jack Specifications









ACME SCREW JACKMACHINE SCREW JACK
