Trapezoidal Screw Jack for Sluice Gate

Trapezoidal Screw Jack is common used and has the advantage of low cost and heavy load.
  • Brand:

    Lude
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Qingdao/Tianjin/Shanghai
  • Lead Time:

    20-30 days after payment received
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

Brief Instruction and pictures


Trapezoidal Screw Jack are used wherever precisely controlled lifting, lowering, tilting, and slewing movements are required in an efficient and reliable operation. Sluice gate is a common application for Trapezoidal Screw Jack.



The Sluice gate screw jacks have some features:

1.inverted translating type

2.top plate or clevis end is common to see

3.self-locking function is needed


Sluice Gate Screw Jack Example SWL10  made for a Philippines customer

Main Parameters:

Lifting Capacity: 2 Tons

Length of leadscrew:3meters

Specs as follows: TR 58 x 12

Screw movement type inverted

Screw Top end: Type H clevis

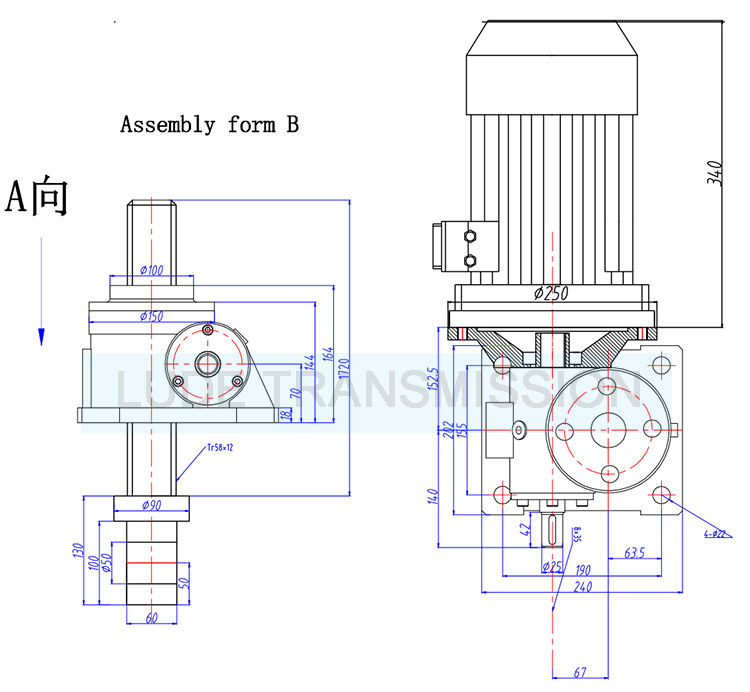

The Following is the outline drawing.




Screw Jack Packing details:
1.Polythene liner bag enclosing screw jack (which is moisture barrier, rust-proof).
2.Polyurethane foam around the screw jack (avoiding shock in delivery) in veneer case.screw jack lifting capacity
3. Or as customers' special request

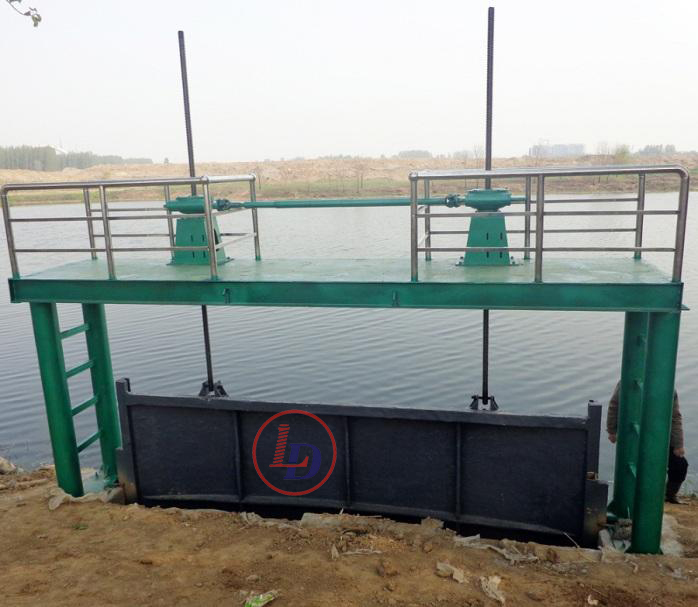

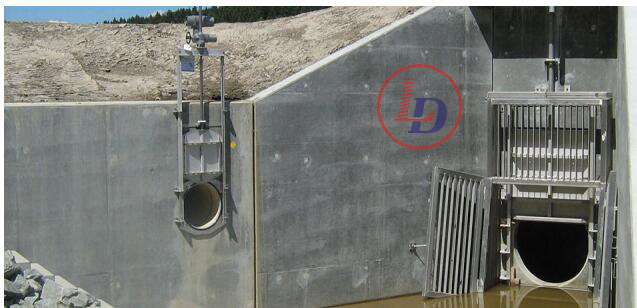

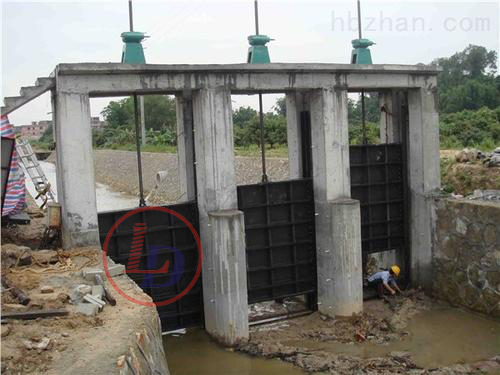

Sluice gate screw jacks Application Picture


Technical Data Sheets &CAD

  • SWL Series Screw Jack

    PDF

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
machine lifting automatic screw jack
Screw Jacks JWM Series
Our trapezoidal screw jacks(also named acme screw jack) JWM series is suitable for low speed and low frequency.
acme handwheel screw jack
Screw Jacks SWL Series
SWL trapezoidal screw jack is suitable for low speed and low frequency.
manual worm gear screw jacks
Hand Operated Lifting Screw Jacks
Manual Screw Jack is ideal solutions for applications where electricity or power generators is inconvenient or dangerous, light weight, low duty cycle, low target cost and short travel length.
motorized ball screw jacks
Electric Travelling Nut Worm Screw Jack
In some models of jack screws , The lifting screw does not move up and down. It only rotates around its axis. A lifting nut (also known as travelling nut) moves along the screw.
acme mechanical screw jacks lifts
Mechanical Worm Gear ACME Screw Jacks
Screw jack is used in applications where linear motion is required.
Travelling Nut Screw Jack  With Mounting Plate
Travelling Nut Screw Jack With Mounting Plate
A flanged traveling nut is placed on the lead screw; therefore and the nut translates along the lead screw when the worm gear rotates.
Worm Gear Acme Screw Jack With Mounting Plate
Worm Gear Acme Screw Jack With Mounting Plate
ACME worm screw jacks are widely used, they are suitable for heavy load and low speed, and they have self-lock function.
Trapezoidal Machine Screw Jacks
Trapezoidal Machine Screw Jacks 1Ton to 100Ton
Trapezoidal Worm Gear Screws Jacks can provide long duty life, high load capacity and flexible design. They come in two major categories, Ball Screw and Machine Screw.
Leave A Message
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
