Trapezoidal Worm Gear Screw Elevator for Heavy Load

Trapezoidal Screw Elevator is widely applied in industries, such as machinery, metallurgy, construction, and hydraulic equipment, and has many functions, such as lifting and pushing and turning with the help of accessories or adjusting height and position.
  • Brand:

    Lude
  • Item No.:

    SWL20
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Shanghai/Qingdao/Tianjin
  • Lead Time:

    20 days after order confirmed
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

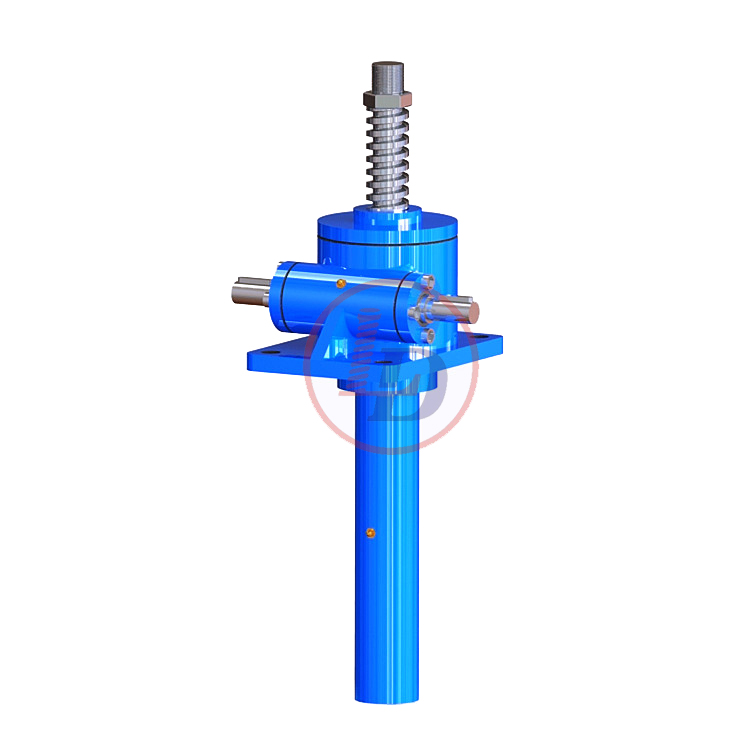

20ton Trapezoidal Screw Elevator Main Parameters:

Load capacity:200KN

Screw size:65*12

Ratio: high speed 8:1 / low speed 24:1

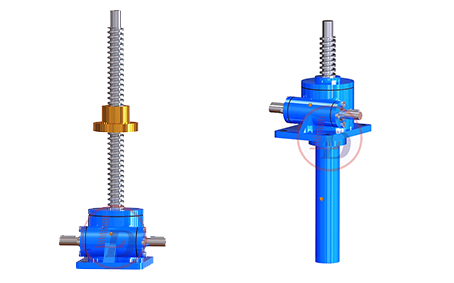

Translating or rotating screw is available

Hand jack or electric jack or both together

Max safety power: 4.02kw

Multiple SWL screw elevators linkage is availlable

self locking screw jacks

It can be translating type or rotating type

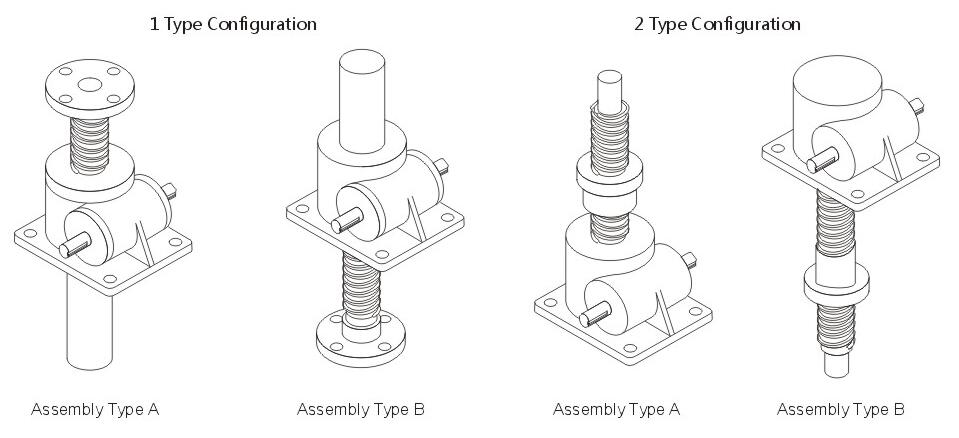

Assembly Type and Configuration Form

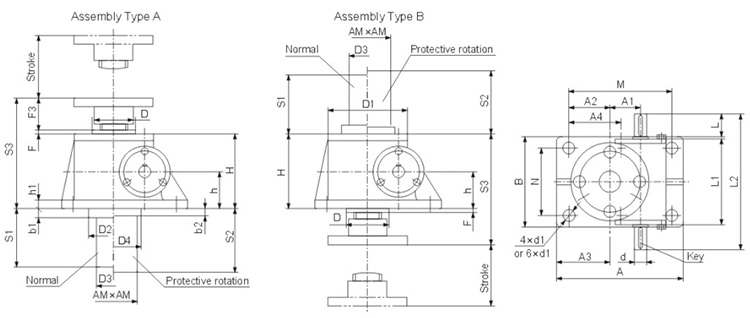

Outline and Installation Dimensions

Trapezoidal Screw jacks







Trapezoidal Screw jacks supplierTrapezoidal Screw jacks application

Technical Data Sheets &CAD

  • Screw Jack SWL

    PDF
