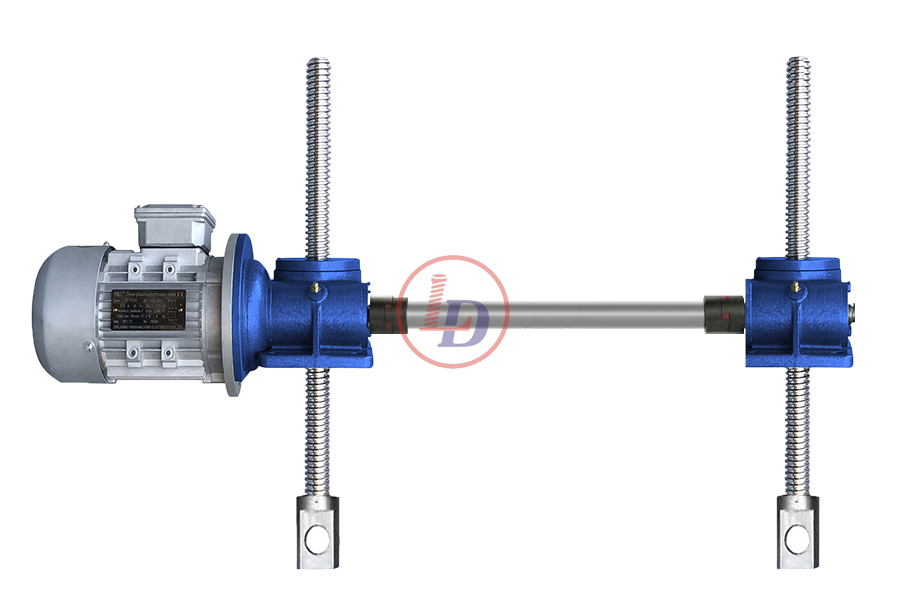

Customzied Sluice Gate Screw Jack with Clevis End

ACME screw actuator is common used and has the advantage of low cost and heavy load.
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Qingdao/Tianjin/Shanghai
  • Lead Time:

    20-30 days after payment received
follow us :
  • Product Details

  • Photo

Brief Instruction and pictures


Machine ACME Screw actuators are used wherever precisely controlled lifting, lowering, tilting, and slewing movements are required in an efficient and reliable operation. They have self locking function while ball screw jack does not have such function.


 Machine acme Screw Jacks in several designs including:
    Translating
    Double clevis
    Trunnion
    Keyed for non-rotation

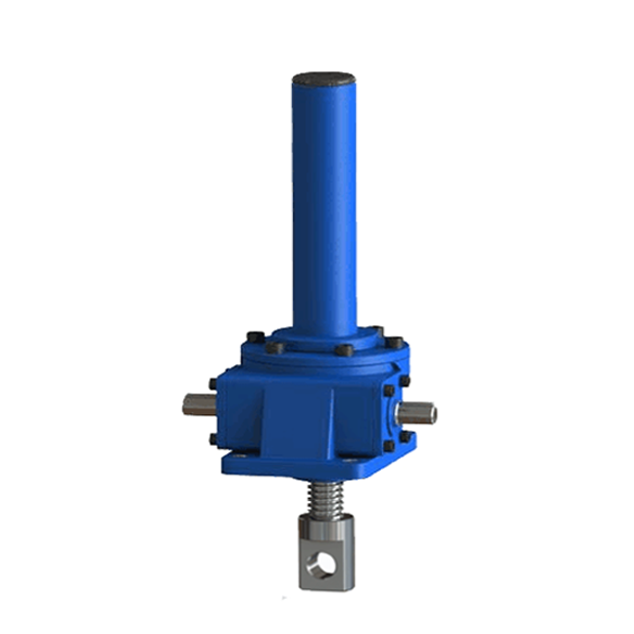

Inverted ACME Screw Jack with Clevis End 10 ton Outline Drawing:

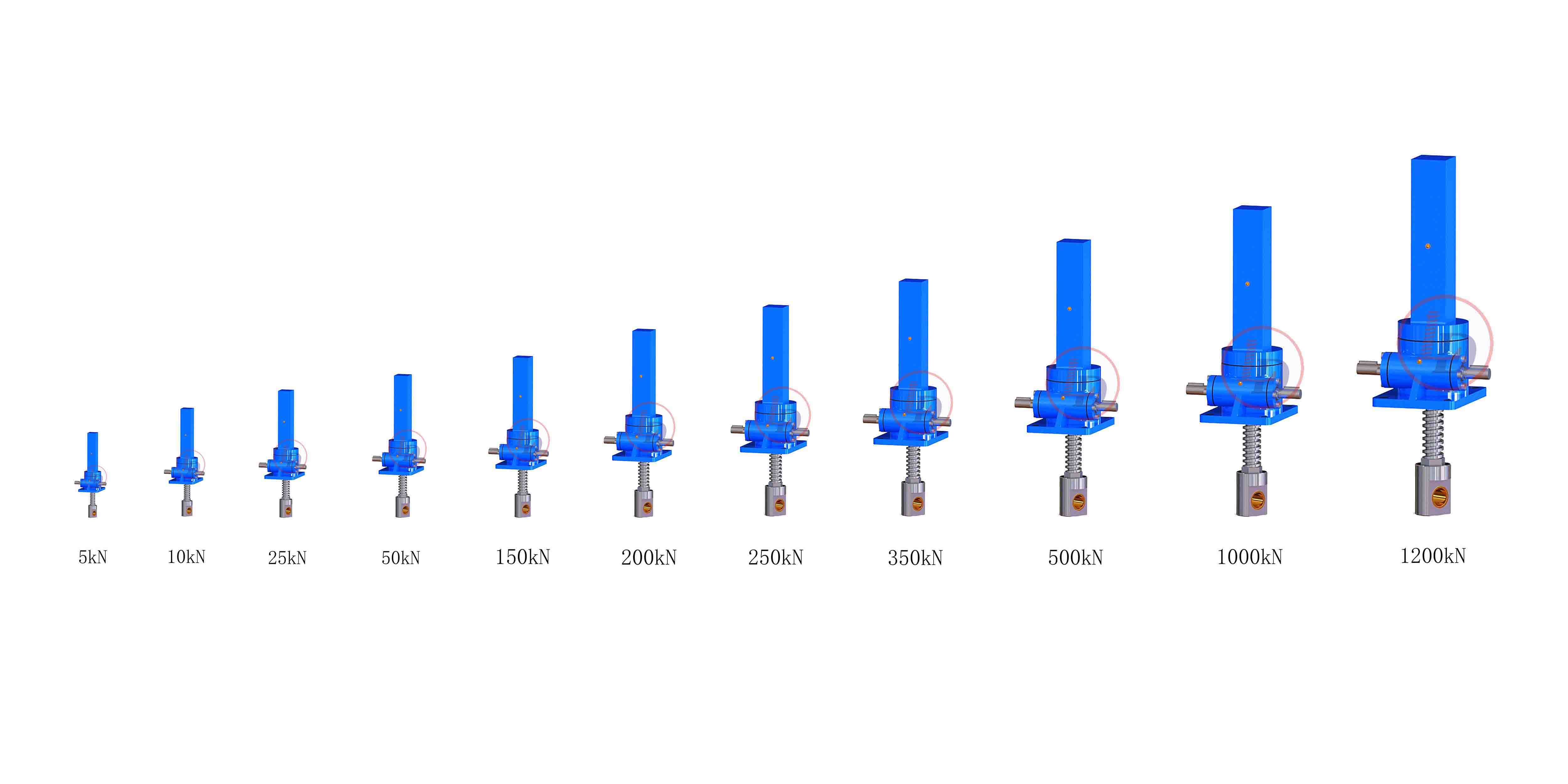

ACME Screw jacks

Main parameters:

1.load capacity:1ton

2.stroke:2m

3.lifting speed:25mm/s

4.screw top end: clevis end


ACME screw jacks export packaging

ACME Screw jacks

Packing details:
1.Polythene liner bag enclosing screw jack (which is moisture barrier, rust-proof).
2.Polyurethane foam around the screw jack (avoiding shock in delivery) in veneer case.screw jack lifting capacity
3. Or as customers' special request

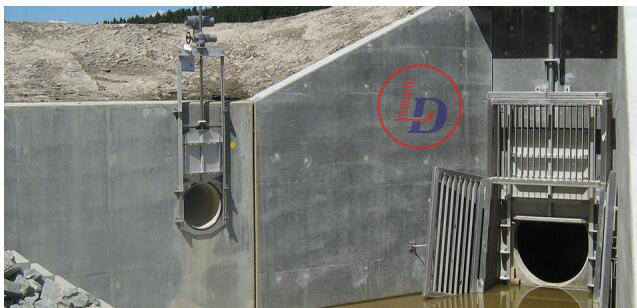

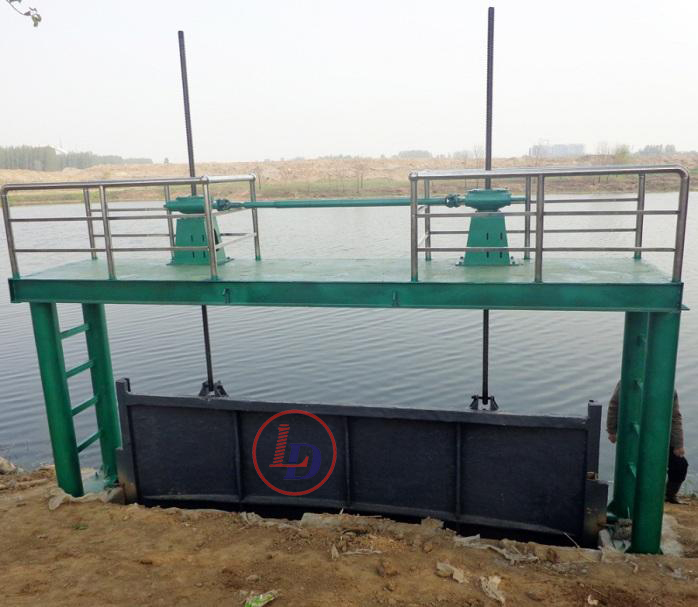

At last, let's see a video to see how the sluice gate screw jack works.



ACME Screw jacks
