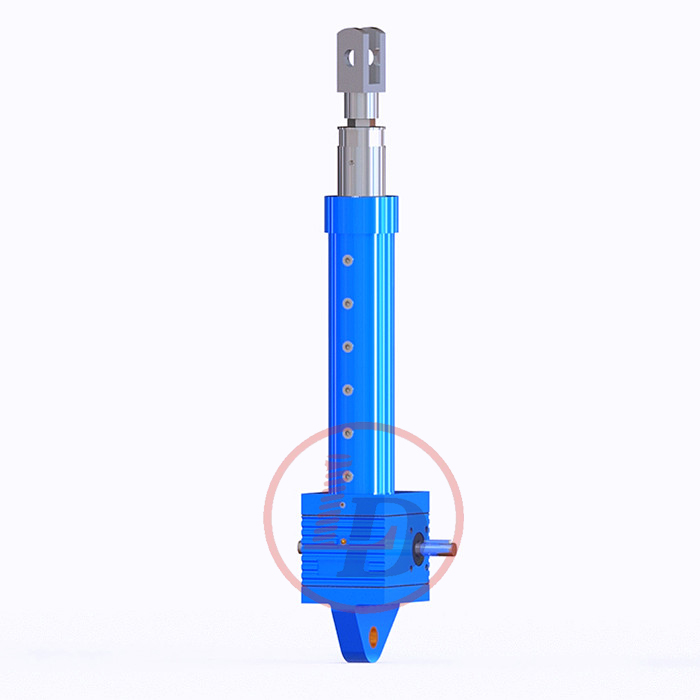

ACME Screw Linear Actuator with AC Motor

An electric linear actuation is a mechanical device that converts energy in a straight line to create movement.

  • Product origin:

    Dezhou
  • Color:

    Blue or customized
  • Shipping port:

    Tianjin/Qingdao/Shanghai
  • Lead Time:

    20 days after order confirmed
follow us :
  • Product Details

  • Photo

 General Descriptions

ACME Screw Linear Actuator is a mechanical device that converts energy (power from air, electricity or liquid) to create motion in a straight line; contrasted with circular motion of a conventional electric motor. It can also be used to apply a force. Types of motion include: blocking, clamping, ejecting, lifting, descending, pushing or pulling.


电动直线执行器

Features

Trapezoidal thread
The motor is connected to the threaded spindle via a worm gear.
Depending on the model, fixing via the joint head and rotary bearing console or rod end bearing and eye gear flange
Solenoid switch and rotary encoder available
Trap nut safety system for trapezoidal screw threads available

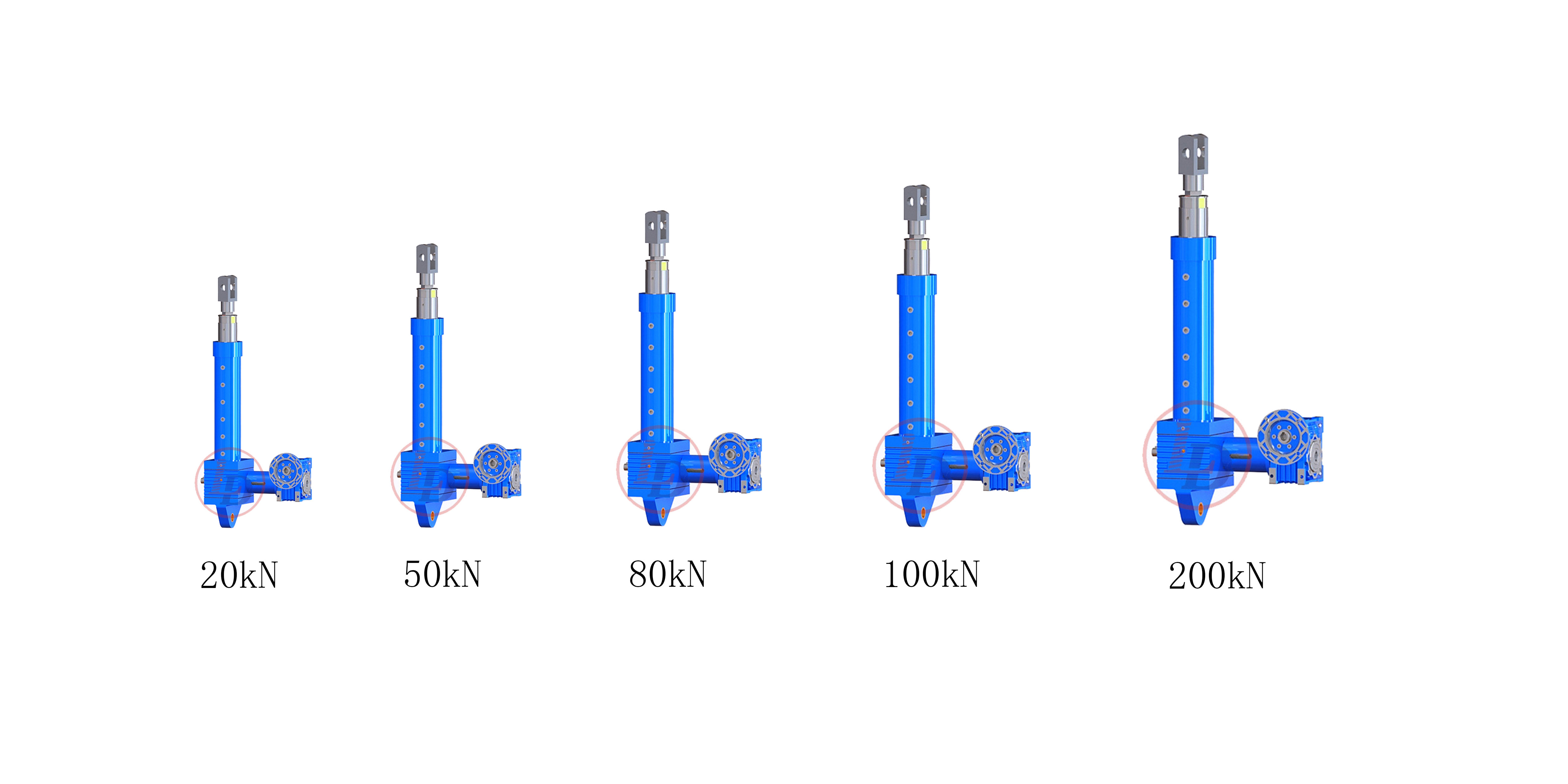

ACME Screw Linear Actuator Main Datas

Load capacity:max 2.5ton

Max.lifting speed:93mm/s
Motor power:380/220VAC

Electric Lift  Linear Actuator  with AC motor application

ACME 螺杆直线执行器

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
