Mini Size Worm Gear Machine Screw Jack

Mini Size Worm Gear Machine Screw Jack is of acme screw and cubic housing.
  • Item No.:

    SJA50
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Tianjin/Shanghai/Qingdao
  • Lead Time:

    15 days after order confirmed
follow us :
  • Product Details

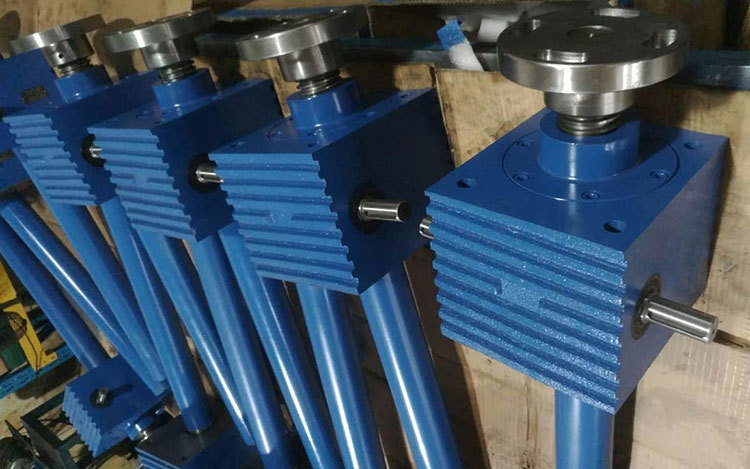

  • Photo

SJA100 Mini Size Worm Gear Machine Screw Jack

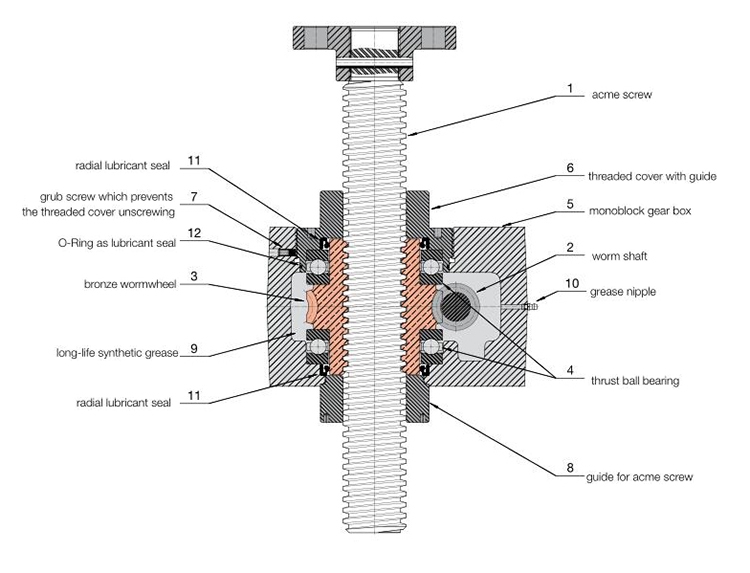

Mini Size Worm Gear Machine Screw Jack Parts



SJA100 Mini Size Worm Gear Machine Screw Jack Features

Max load: 100kN

Screw diameter 60mm,screw pitch 9mm

High speed ratio:8   Stroke per one put turn: 1.125mm     Max input power: 3kW

Low speed ratio:32  Stroke per one put turn: 0.281mm     Max input power: 2.2kW

Different top end types available

Stroke: 10mm to 6000mm, can be customized as per detailed needs

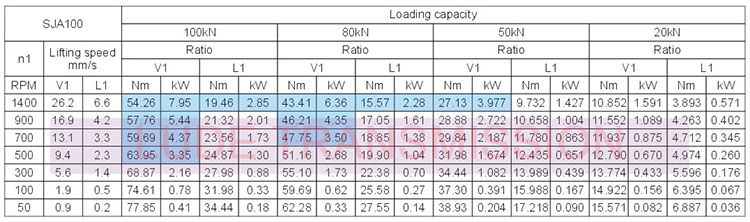

SJA100 Cubic Mechanical Screw Jack Specification

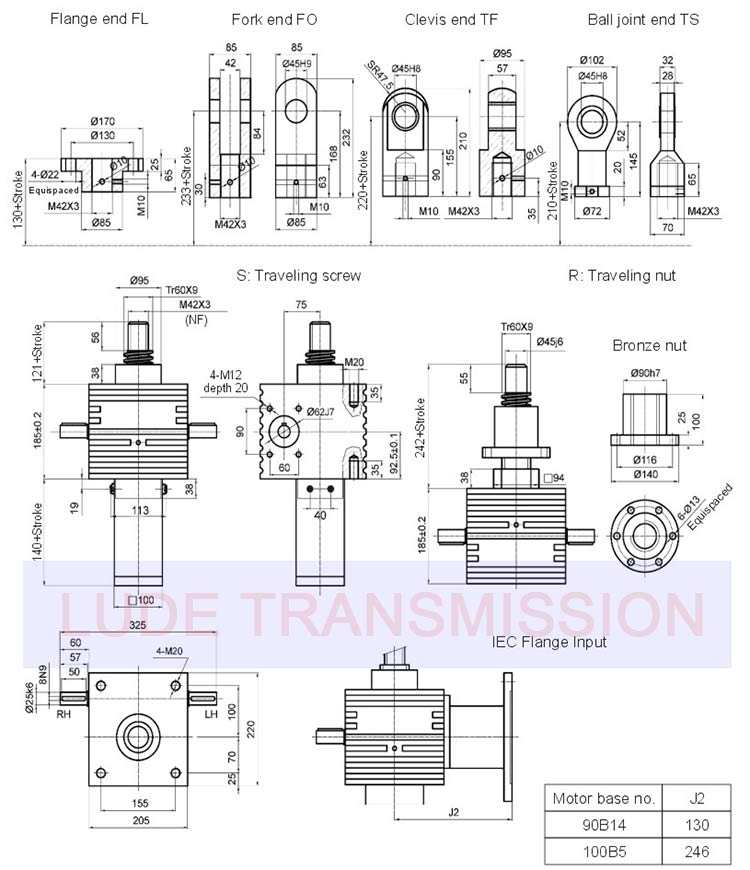

SJA100 Mini Size Worm Gear Machine Screw Jack Dimensional Drawing

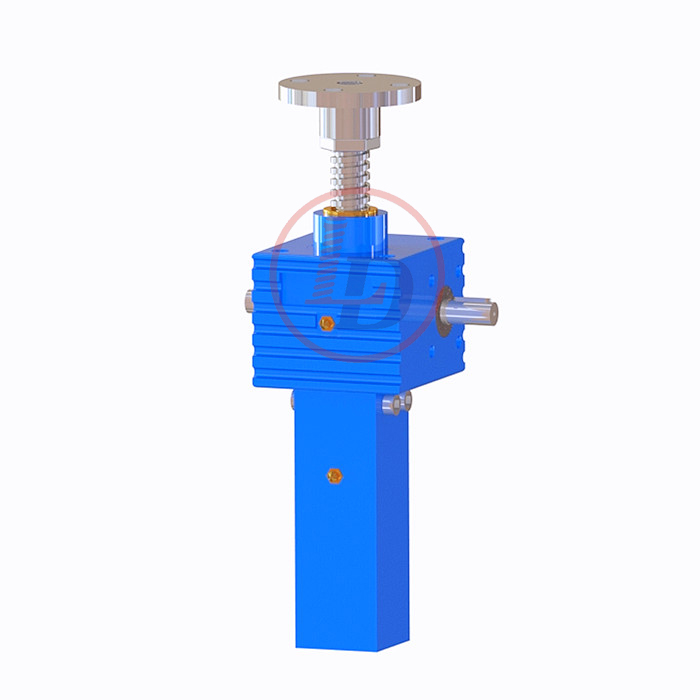

small screw actuator
