Hand-operated Translating Screw Jack 5ton
  • Product Origin:

    Dezhou
  • Item No.:

    SWL5
  • Shipping Port:

    Tianjin/Qingdao
  • Color:

    Customized
  • Lead Time:

    within 15 days after payment received

Manual Screw Jack includes a worm gear screw jack and a handwheel or hand crank.

It is suitable for applications where electricity or power generators is inconvenient or dangerous, light weight, low duty cycle, low target cost and short travel length.

Inquiry now
  • Product Details
  • Photo

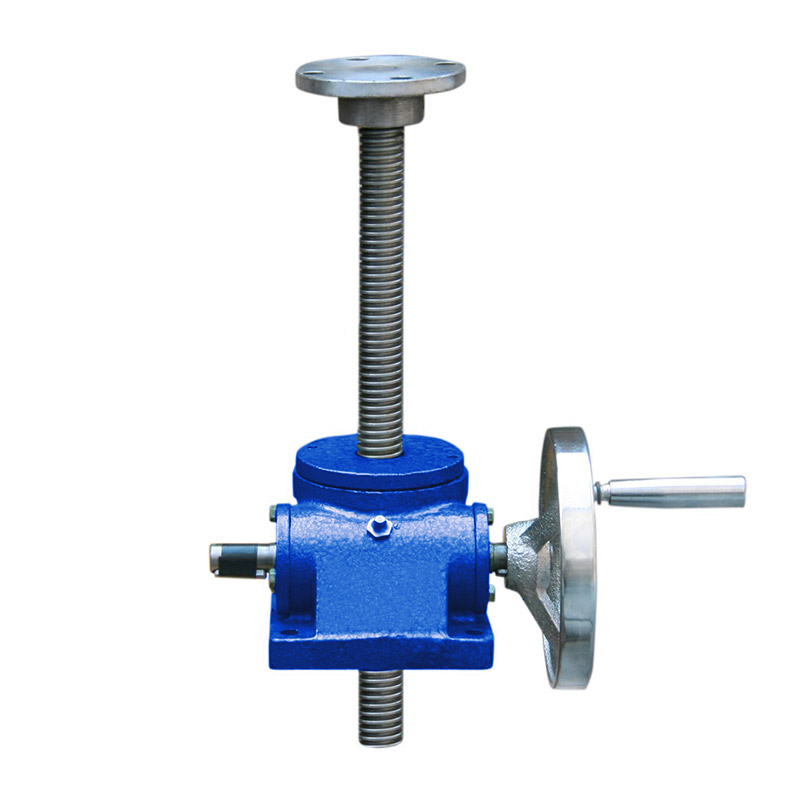

1. Manual Screw Jack Picture and Descriptions


Manual Screw Jack includes a worm gear screw jack and a handwheel or hand crank.

It is suitable for applications where electricity or power generators is inconvenient or dangerous, light weight, low duty cycle, low target cost and short travel length.

hand-operated screw jack

2.Manual Screw Jack Features


The hand crank screw jack has a disadvantage that is the travel speed is slow and the maximum travel length of the handwheel or handwheel per revolution is 1 to 1.5 mm. However, manual bevel gear jacks are the ideal solution for slower walking speeds with internal bevel helical gear pairs up to 12mm stroke length with one handwheel or crank per revolution. When you need a hand crank screw jack with high speed,a bevel gear jack is the best choice.


3.Manual Acme Screw Jack 5ton Main Parameters

 max. lifting force: 50kN,

screw thread size Tr40*7,

ratio 6:1/24:1

Drawing for reference


4. Do you like to know more about the manual screw jack? Pls see the following video.


Manual screw jack applications


screw jack system

Quick inquiry

have a question? you can call us or Email us by sending a message below.

We will contact you as soon as possible
Recently Viewed Products
manual screw jacks for lifting
Worm gear screw jack manual screw jack

Manual Screw Jack is composed of hand wheel or hand crank and a worm gear screw jack.It is ideal solutions for applications where electricity or power generators is inconvenient or dangerous.

manual screw Jack Lift
Hand wheel Worm Gear Screw Jack

Hand wheel worm gear screw jack is composed of hand wheel or hand crank and a complete set worm gear screw jack with internal worm and worm gear sets, standard hand wheel or hand crank.

manual worm gear screw jack lifts
Hand Wheel Screw Jack with Low Price

screw jack is a gearbox assembly (either worm gear or bevel gear) and a transmission product (lead screw, ball screw or roller screw) which through use of a motor is used to convert rotary into linear motion.

worm screw jack with handle
Manual trapezoidal screw jack with handwheel

Manual Screw Jack is made up of hand wheel or hand crank and a worm gear screw jack. It is suitable for applications where electricity or power generators is inconvenient or dangerous, light weight, low duty cycle, low target cost and short travel length.

handwheel screw jack
Trapezoidal Screw Jack with Hand Wheel

Manual Screw Jack is composed of hand wheel or hand crank and a worm gear screw jack.

Hand Operated Screw Jack for Crank Table
Hand Operated Screw Jack for Crank Table

The working principle of the hand operated  worm gear screw jack is that the worm (also called the input shaft) is manually rotated by the hand wheel, the worm wheel is rotated by the worm, and the trapezoidal lifting screw is moved by the rotating worm wheel. The linear motion speed of the  worm wheel manual screw jack trapezoidal lifting screw depends on the thread size and the worm gear speed ratio. Hand Operated Screw Jack is composed of hand wheel or hand crank and a worm gear screw jack.It is ideal solutions for applications where electricity or power generators is inconvenient or dangerous. Our Jack's Advantages: -Self-locking ability -Can be driven directly by hand wheel -Can be customized according user's demand -Compact configuration, small size, lightweight -Convenient installation, flexible operation -High reliability and stability -2 / 3 /4 /8 sets etc. screw jacks to linkage to use  Please see a short video about hand operated screw jack for crank table below,

Hand Crank Table Lift  Screw Jack Mechanism
