Mini Translating Ball Worm Gear Screw Jack 10ton

Mini translating ball screw jack featuring a square-type structure and compact gearbox casing


  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Qingdao/Tianjin/Shanghai
  • Lead Time:

    15days after payment received
follow us :
  • Product Details

  • Photo


SJB Series translating ball screw jacks adopts advanced square-type structure and compact gearbox casing.

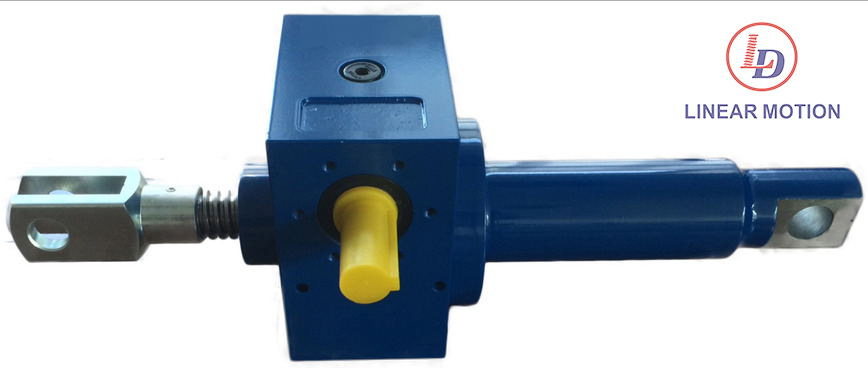

SJB translating ball screw lift

Main Parameters:

Max.lifting load: 10kN

Dynamic load:11kN

Screw dia.×Pitch:20mm×5mm

Worm ratio(high speed):1:4

Stroke for one input turn:1.25mm

Max input power:0.57kw

Precise positioning :0.02mm/300mm


Drawing for translating ball screw lift SJB10:

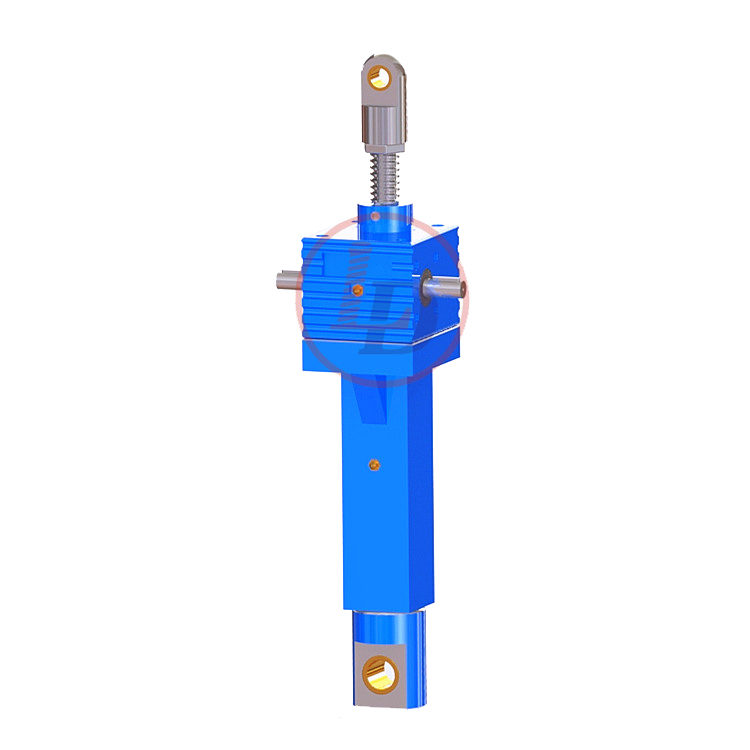

SJB10 small ball screw jack


Features:

1.Different top ends available:such as Top plate,Clevis end,Threaded end,Plain end,fork end.

2.Drive mode:manual or electric motor

3.Screw jack installation mode:upright or inverted

4.Accessories available: tooth-depth device, anti-rotation device, safety nut, dust shield, and magnetic induction limit switch,brake, hand-wheel, mounting accessories

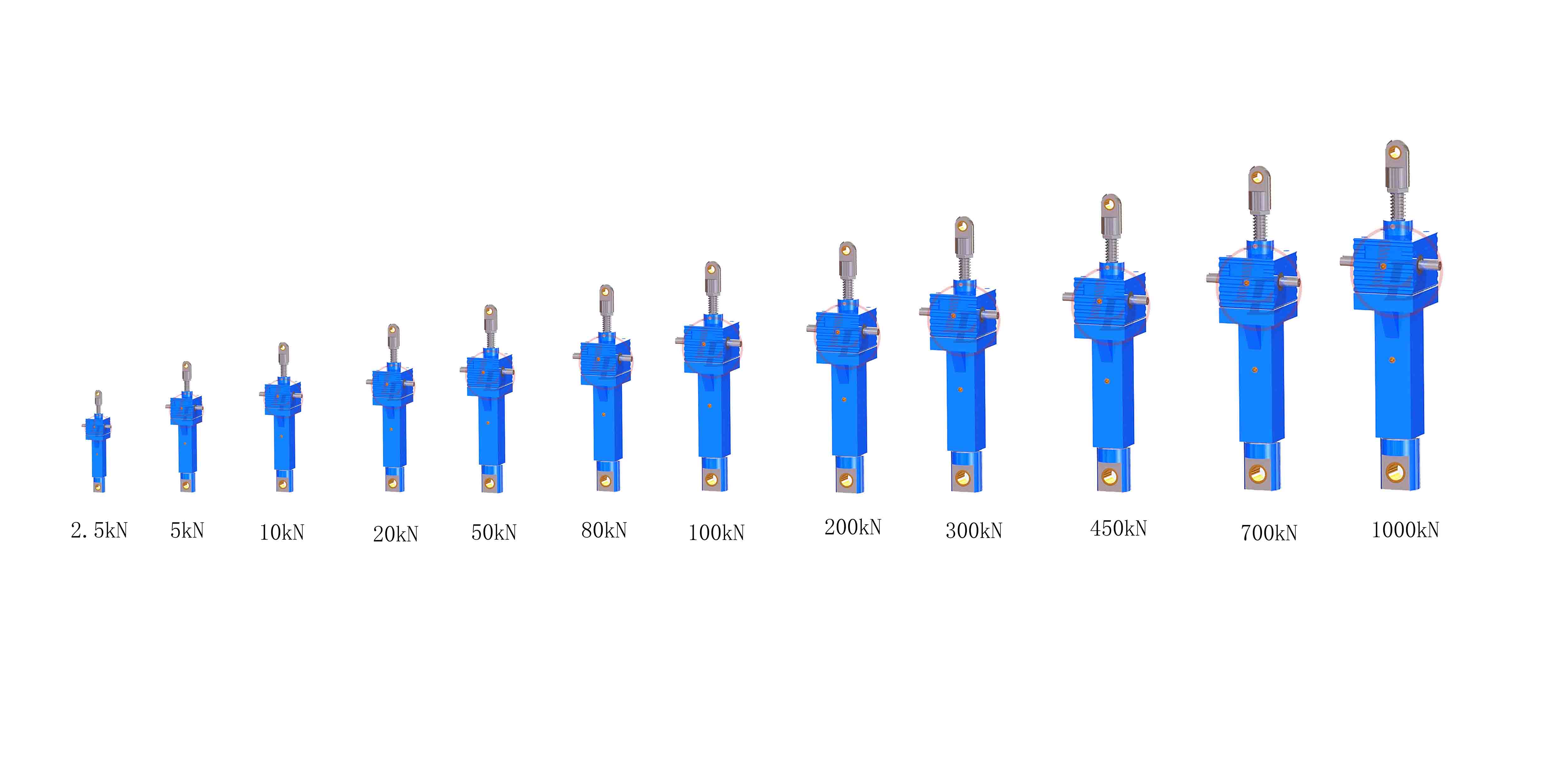

Small ball screw jacks:cubic ball screw jack of translating type

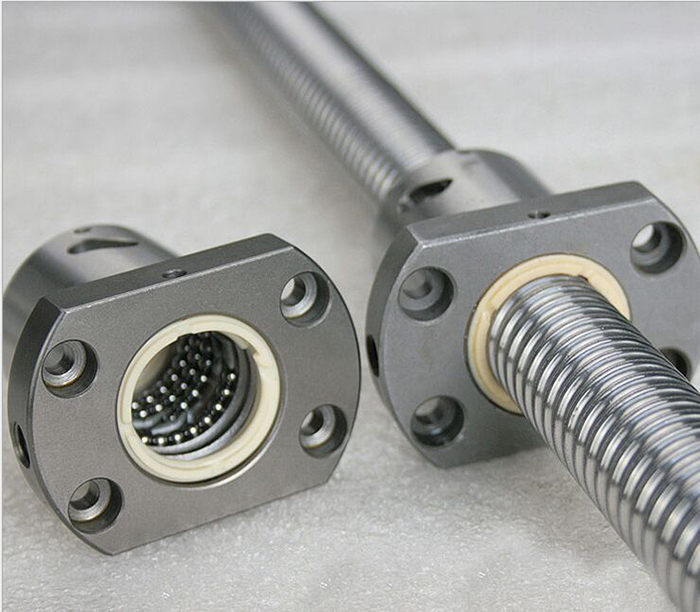

Ball screw jack parts:
