Cubic Translating Acme Screw Jack 2 ton

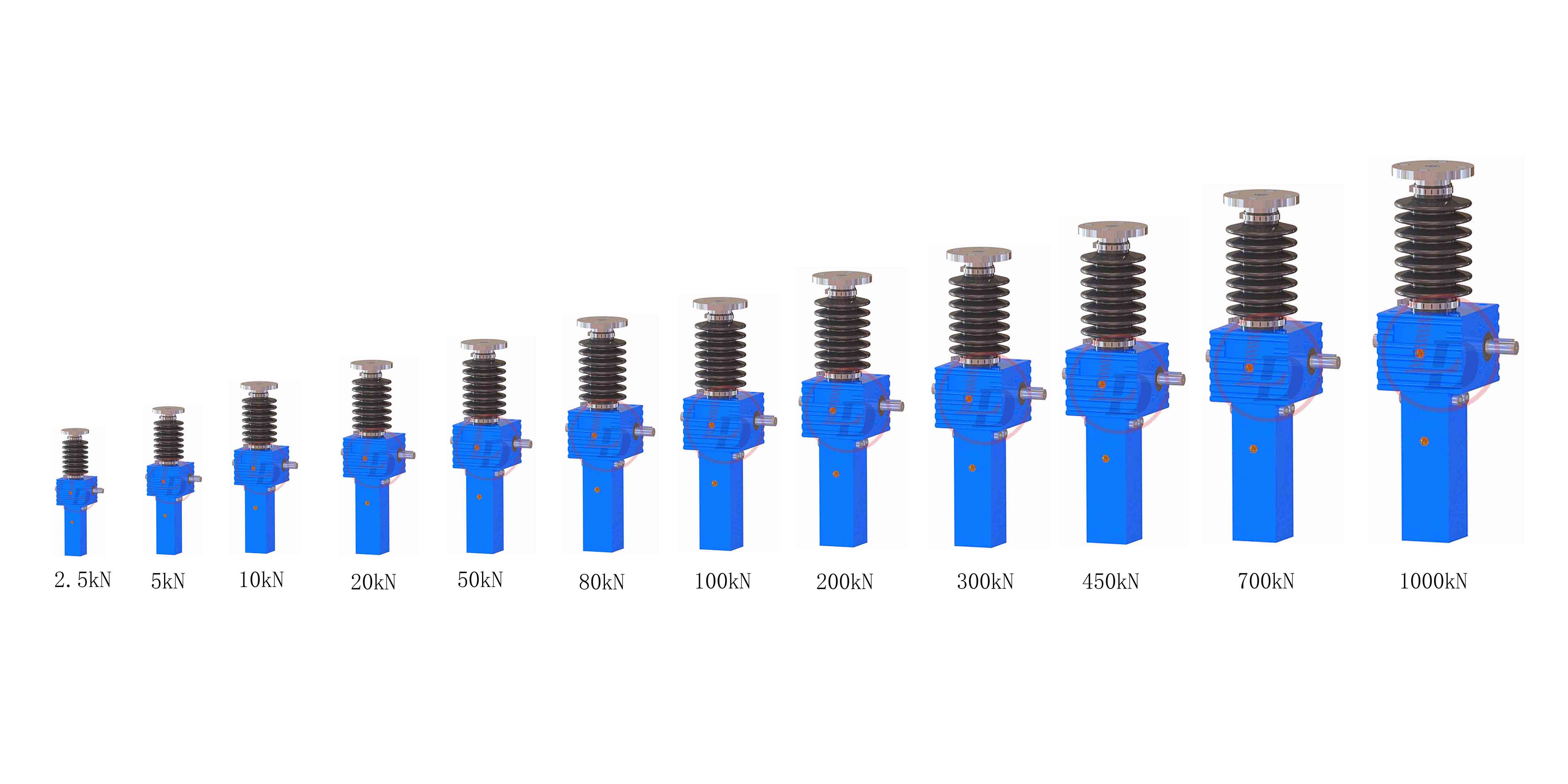

Cubic Translating Acme Screw Jack available load capacity is from 500kg to 100ton.
  • Item No.:

    SJA20
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Tianjin/Shanghai/Qingdao
  • Lead Time:

    15 days after order confirmed
follow us :
  • Product Details

  • Photo

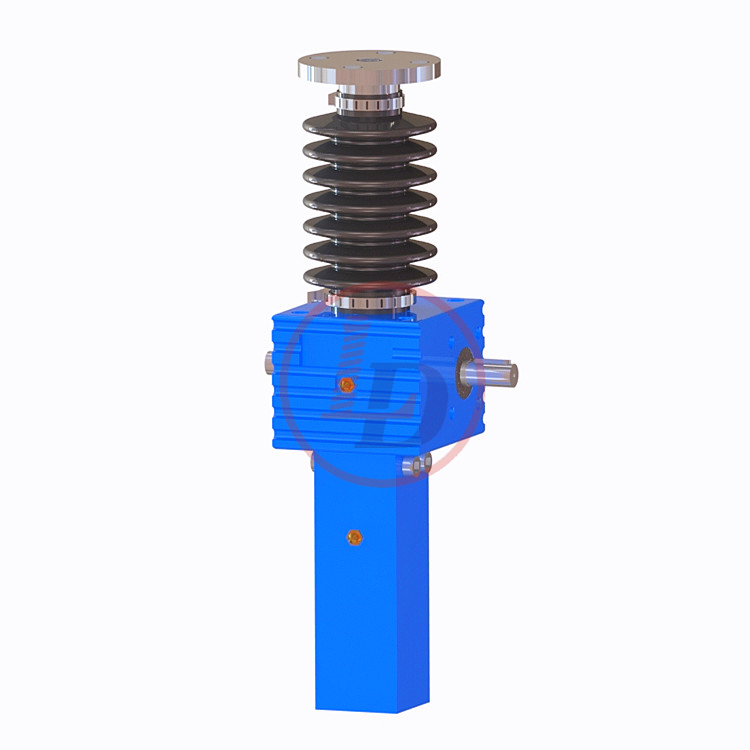

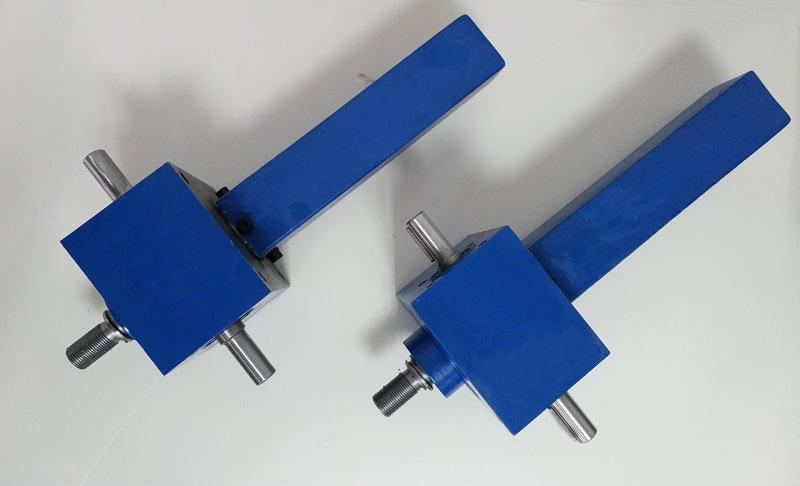

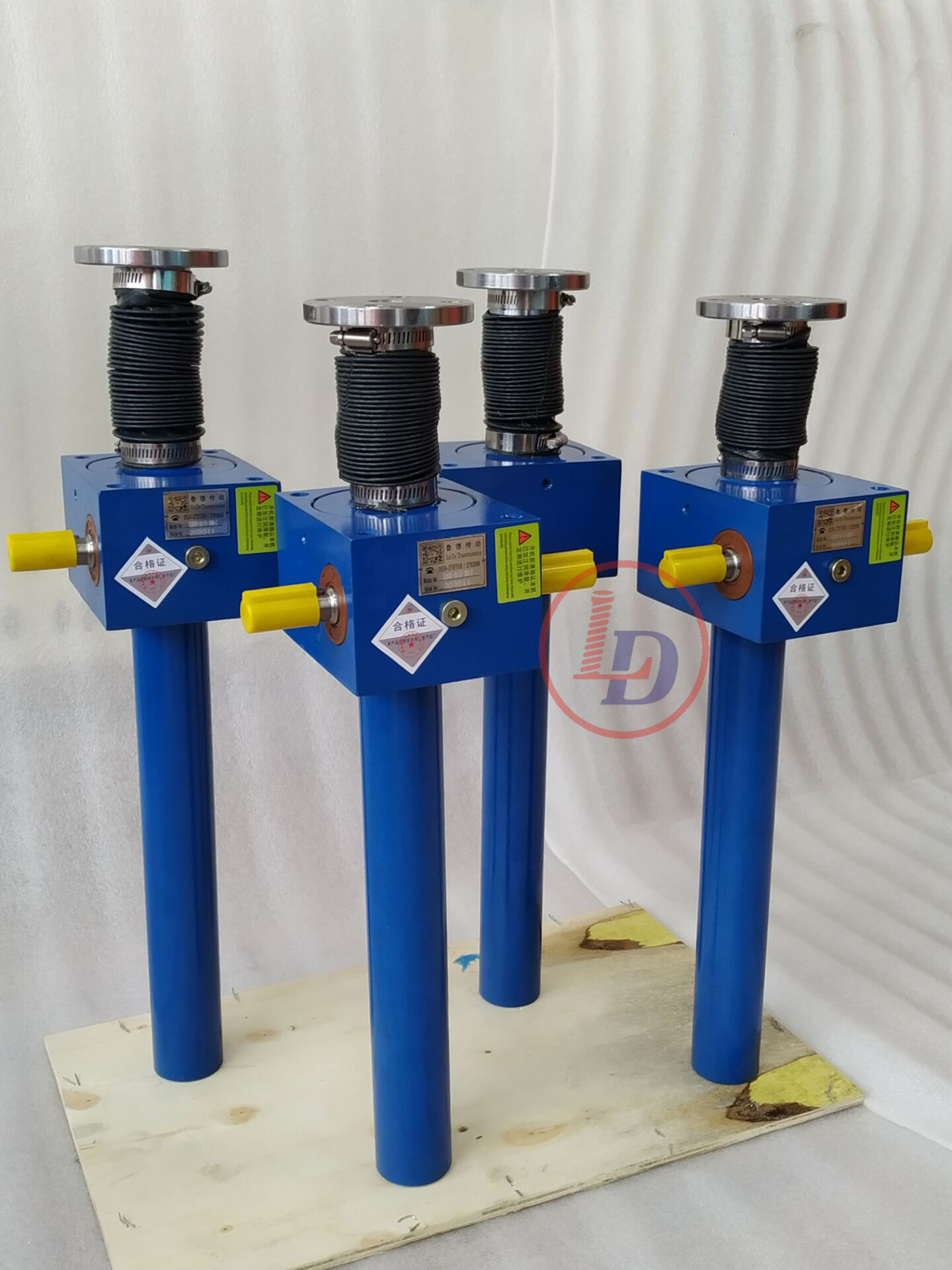

SJA20 Cubic Mechanical Screw Jack Pictures


small screw jack


SJA20 Small Mechanical Screw Jack Features

Max  load: 20kN

Screw size: Tr30*6

High speed ratio:6   Stroke per one put turn: 1mm    Max input power:1.14kW

Low speed ratio:24     Stroke per one put turn: 0.25mm    Max input power:0.55kW

Different top end types available

Stroke: 10mm to 6000mm, can be customized as per detailed needs

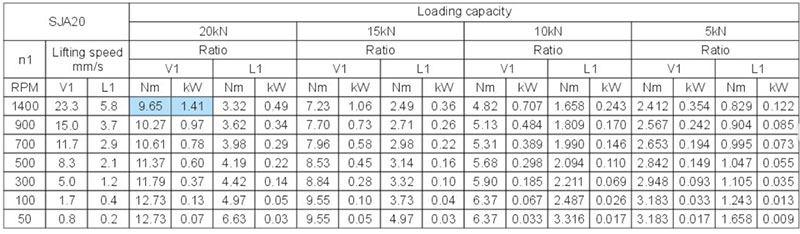

SJA20 Small ACME Screw Jack Specification

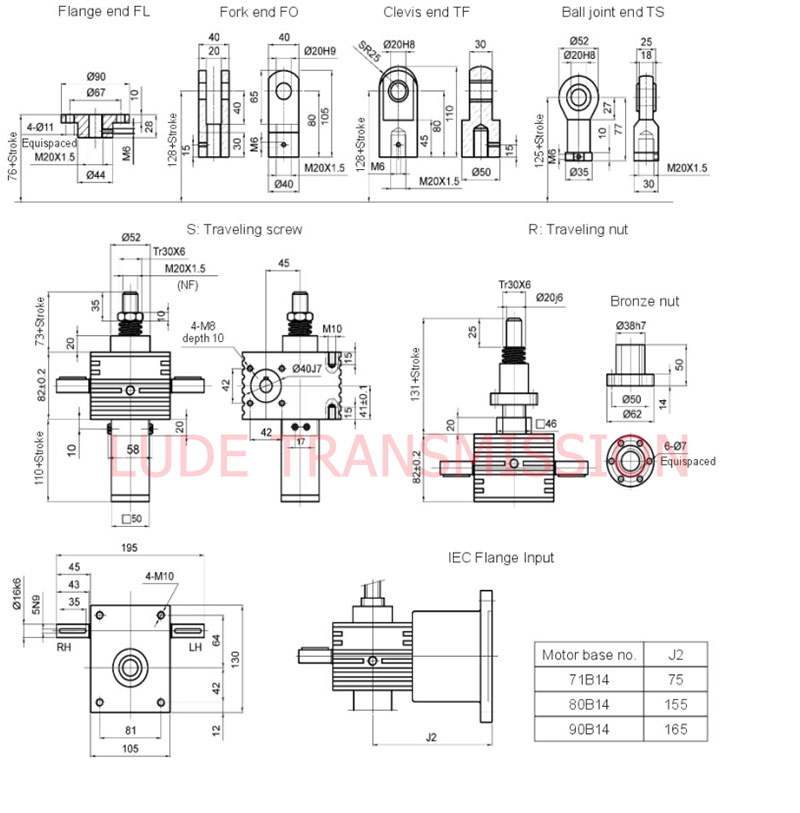

SJA20 Cubic Mechanical Screw Jack Dimensional Drawing
