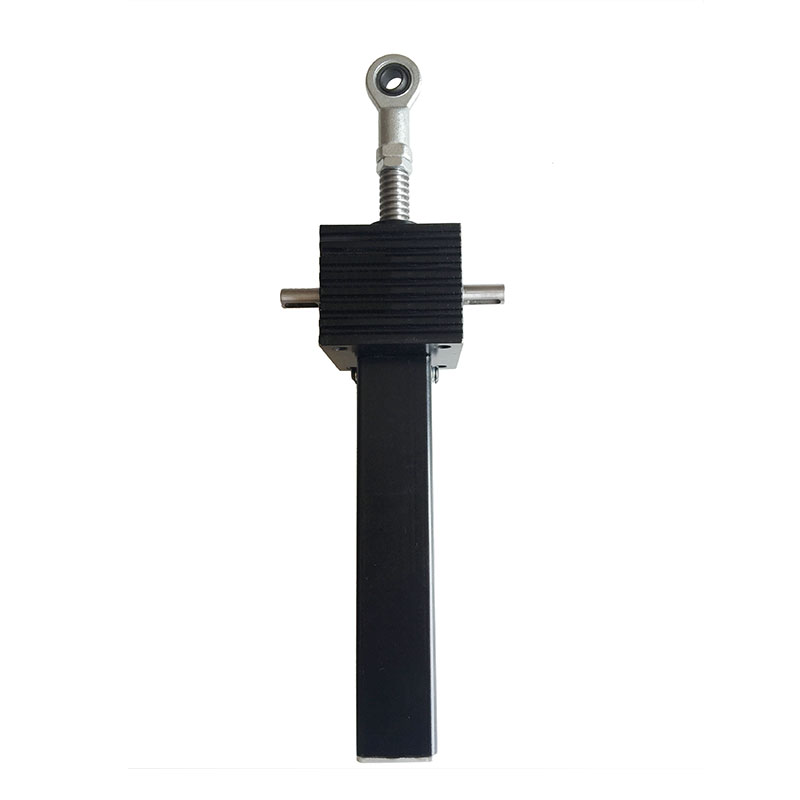

Customized Small Screw Jack Lift
  • Product Origin:

    Dezhou
  • Brand:

    Lude
  • Shipping Port:

    Qingdao/Tianjin/Shanghai
  • Color:

    Customized
  • Lead Time:

    20-30 days after payment received
  • Payment:

    T/T, L/C, Credit Card
Cubic Translating Acme Screw Jack available load capacity is from 500kg to 100ton.
Inquiry now
  • Product Details
  • Photo

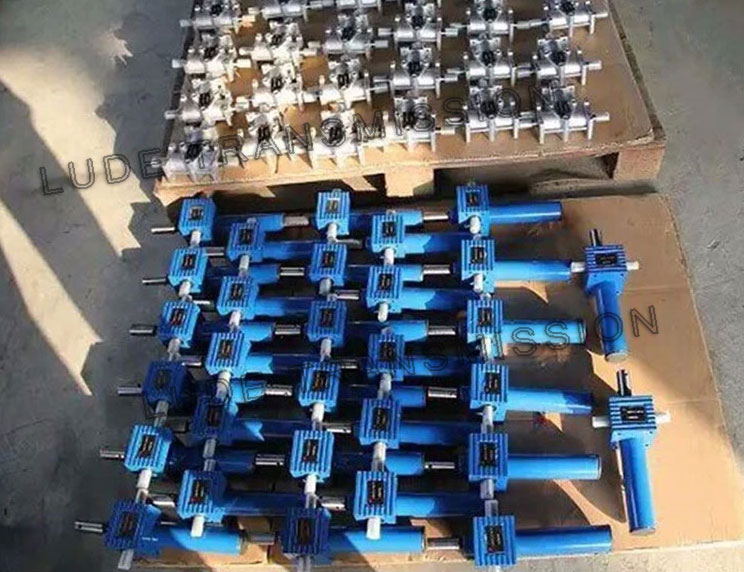

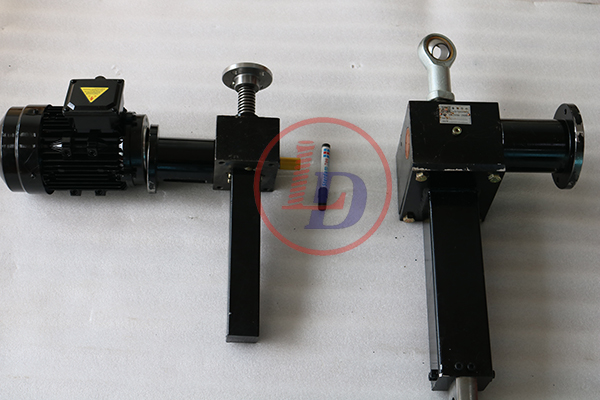

SJA series screw jack

The patented external shape design-unique rectangle fluted housing of the screw jack increases the heat-dissipation ability of the housing and extend the lifetime of the lubricant etc. The material of ductile cast iron raises the hardness and increase the efficiency and the wide application in low or high temperature environment of the housing. The design of the rectangle rear tube prevents the screw from self-rotating and the safety nut offers a guarantee to the security of the screw jack and monitors the wear degree of the nut.The advanced manufacturing equipments and assembling technique ensures the high quality of the products, leading designing concept creates superior products featuring in the strong shock-load resistance, high duty cycle, low noise, long lifetime and small size.

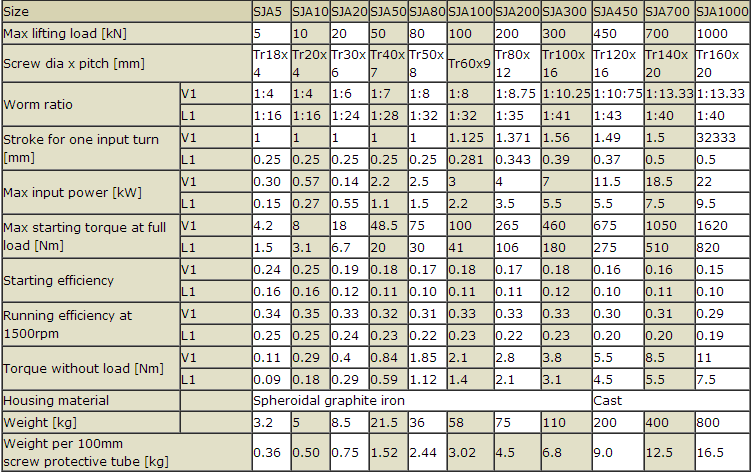

Product parameters



Features:

Linear speed: up to 75mm/s
Input speed:1800rpm
Stroke:up to 6.5m
Precise positioning : 0.1mm/300mm,(If with anti-backlash,precision up to 0.04mm)
Uniform lifting speed
Quick, sure operation
Ballscrew and two,three or four starts threads available
Operating duty cycle up to 50% over a 10 minute period (normal:30%)
