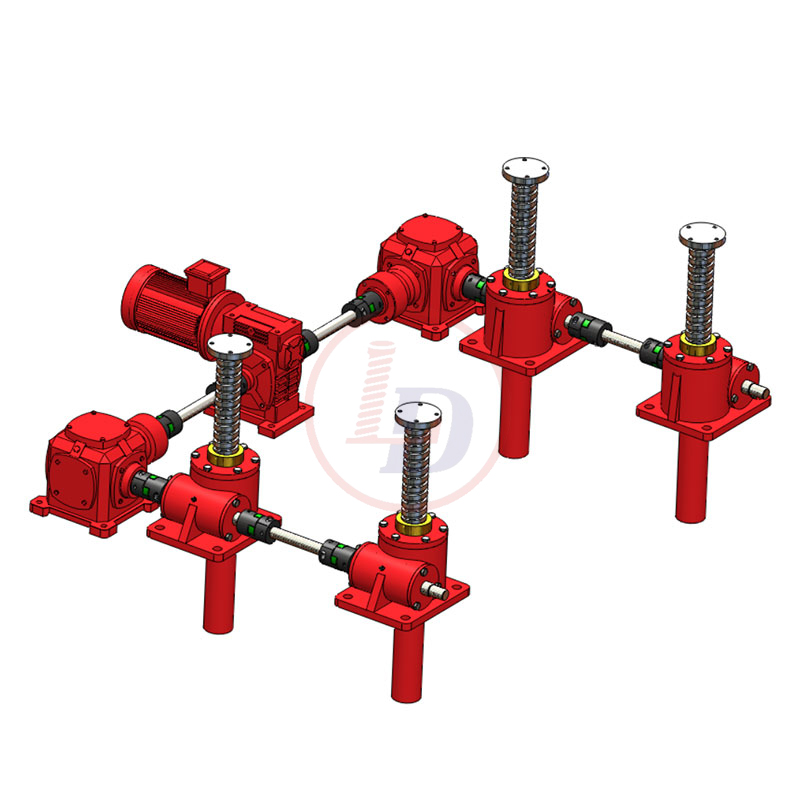

4-set Screw Jack System U Type

Worm gear screw jacks not only can be used by single unit, but also can be used by multiple units. Multiple screw jacks can make up to a screw jack system together with spiral bevel gearbox,connecting shafts, couplings and motor etc.
  • Product origin:

    Dezhou,China
  • Color:

    Customized
  • Shipping port:

    Shanghai/Tianjin
  • Lead Time:

    15 days after payment received
follow us :
  • Product Details

  • Photo

Worm gear screw jacks not only can be used by single unit, but also can be used by multiple units. Multiple screw jacks can make up to screw jack system together with spiral bevel gearbox,connecting shafts, couplings and motor etc.

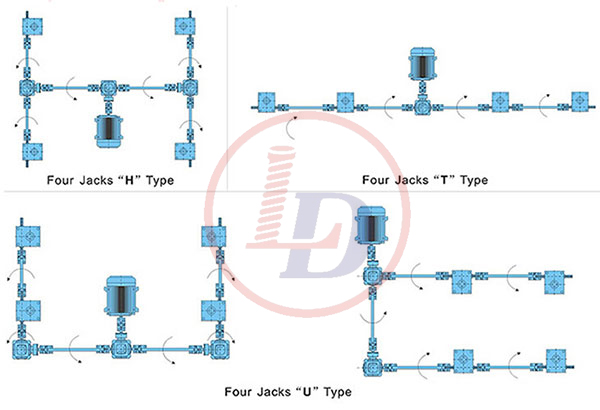

A screw jack system can includes two screw jacks,three screw jacks,four screw jacks,six screw jacks and even more screw jacks. The screw jack system configurations can be I/T/H/U types.

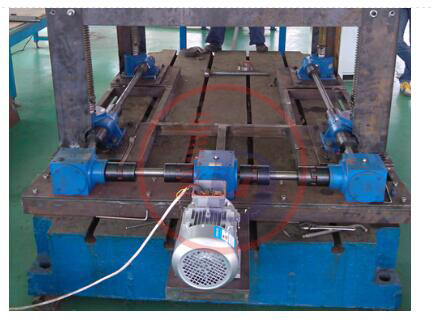

screw jack lifting system




Now let's see a video about a  screw jack system 4-set configuration.


screw jack mechanism
