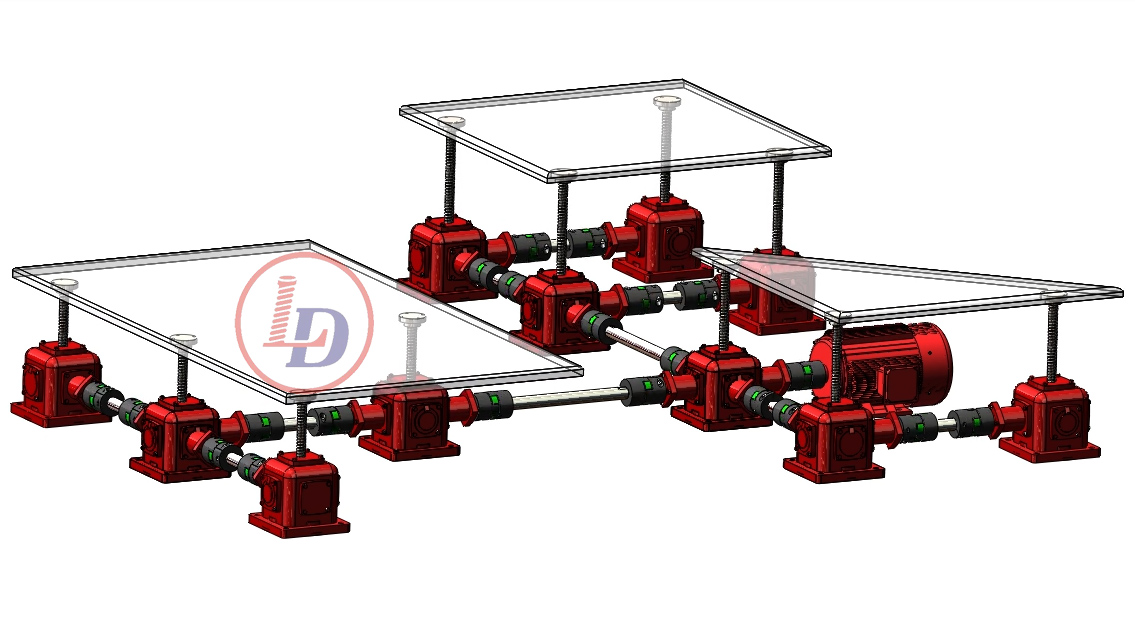

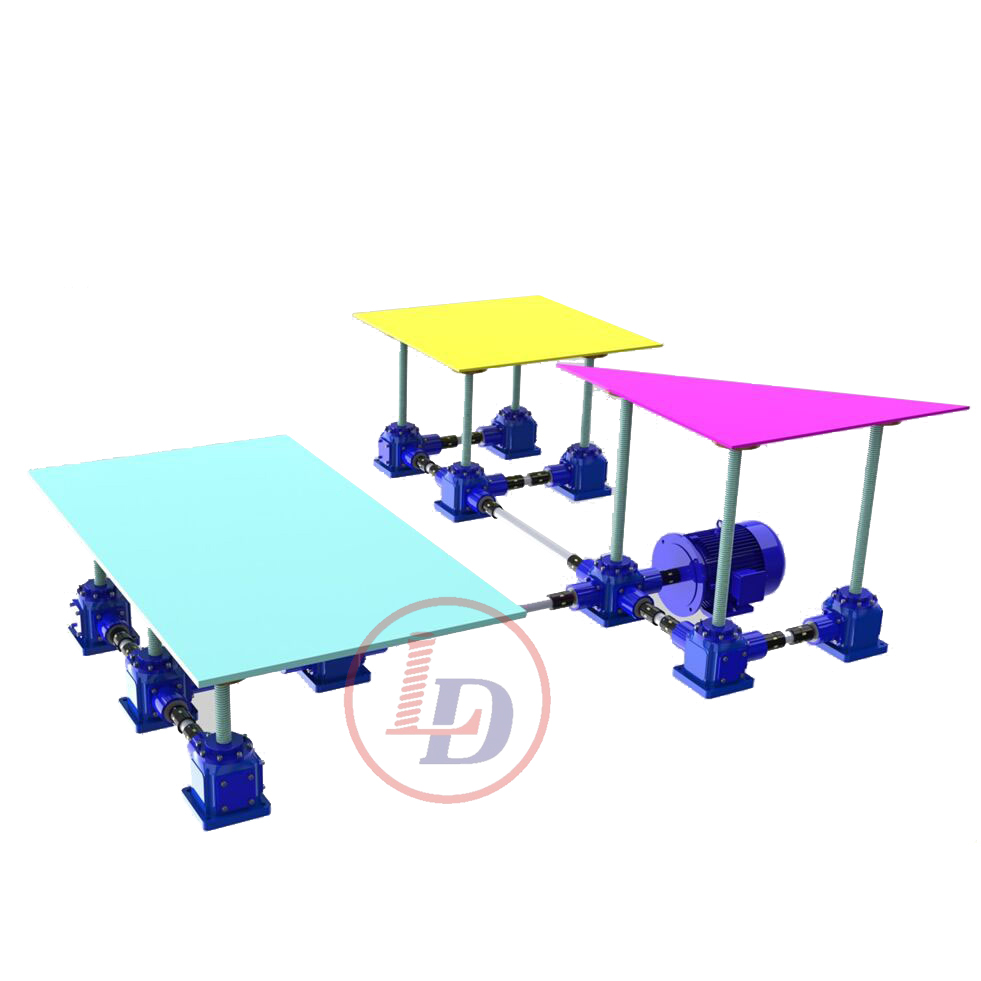

Worm Gear Screw Jack Lifting Platform

Screw jack lifting table or Platform structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shaftings.
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    China Mainland Port
  • Lead Time:

    15 days after deposit received
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

Screw jack lifting platform structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shaftings. We can provide a complete set heavy duty screw jack table following clients' requirements. Compared to fast speed hydraulic lifting system and pneumatic lifting system, heavy duty screw jack table is not only for the simple load-supporting from several kilograms to heavy duty several hundreds tons, but also have many advantages such as self-locking without brake or locking mechanism, precisely positioning, full synchronization, manual operated or electric motor driven, quiet environment, easy installation and operation, maintenance free.


 Specifications/Special Features:

    Positioning Precision,Self-locking,Heavy Duty Lift Table:
    1. Two kinds of lift tables: multi ball screw jacks lift table, multi worm gear screw jacks lift table.
    2. Our Lift Table is different from Hydraulic lift table,Air bag lift table,Spring lift table,linear actuator lift table etc.It is of Positioning precision,safely self-locking,Heavy duty,Uniform lifting speed and fully synchronized.
    3. To select single screw jack lift table, or multi screw jacks lift tables
    4. Lift Table Structural elements: single or multi screw jacks,Spiral bevel gearboxes,linking shafts,couplings,guide pillars.

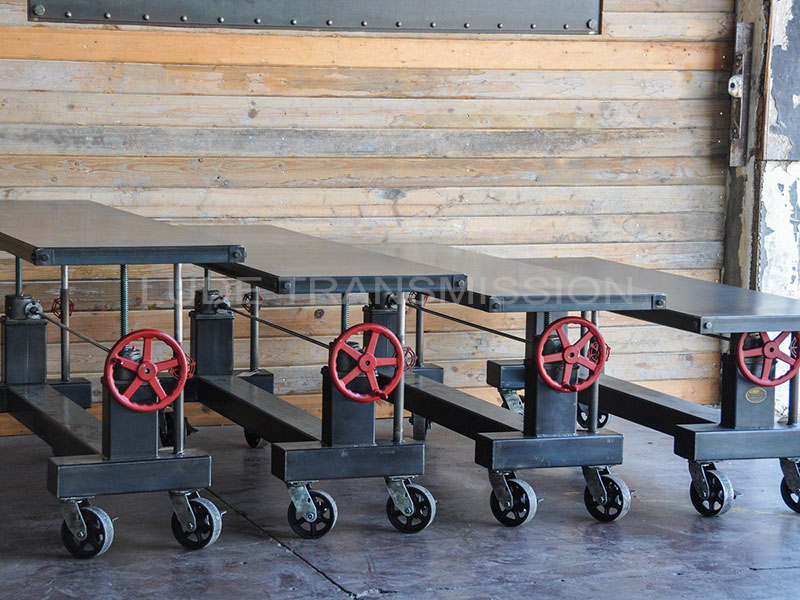

    5. Power Source: Hand wheel or Motors
    6. Screw Lift Platform:Screw Jack instead of hydraulic jack,air bag,spring,linear actuator
    7. Screw jacks are used in tables that have extremely high capacity requirements or need very precise up/down control. Because the screw jack units are of high mechanical, they are an excellent choice when hydraulic, pneumatic, or chain systems are prohibitive choices


Technical Data Sheets &CAD

  • SWL Series Screw Jack

    PDF

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
worm screw jack lift table
High Efficiency Worm Gear Screw Jack Systems
Screw jack lift system structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shaftings.
 Automatic Screw Jack Lift System
Good Performance Screw Jack Lift System
Screw jack lift system structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shaftings.  Screw Jack System Features: 1. Heavy duty, self-locking, positioning precision, uniform lifting speed, fully synchronization, easy installation, easy operation 2. Two screw jacks system, three screw jacks system..forty screw jacks system. 3. Extremely high capacity requirements of need very precise up or down control. It's of high mechanical, they are an excellent choice when hydraulic, pneumatic or chain systems are prohibitive choices. 4. Widely used in wood working machines, plastics processing machines, textile machines, assembly equipment in the automobile and aircraft industries, food and beverage production equipment as well as packaging machines.
screw jacks with handle or electric motor
Screw Jack Systems Used in Automated Production
Screw Jack Systems offer comprehensive lifting and positioning design solutions for a wide variety of industries. Our years of application experience assures that all elements of the design process are considered.
electric worm gear screw jack lift
Two-set Linkage Screw Jack System
Two-set linkage screw jack system can be "L", I and T configuration.  It usually consists bevel gearbox, screw jack, electric motor, gear reducer, hand wheel, pillow block bearing, jaw coupling, line shafting.
acme ball screw jacks screw lift

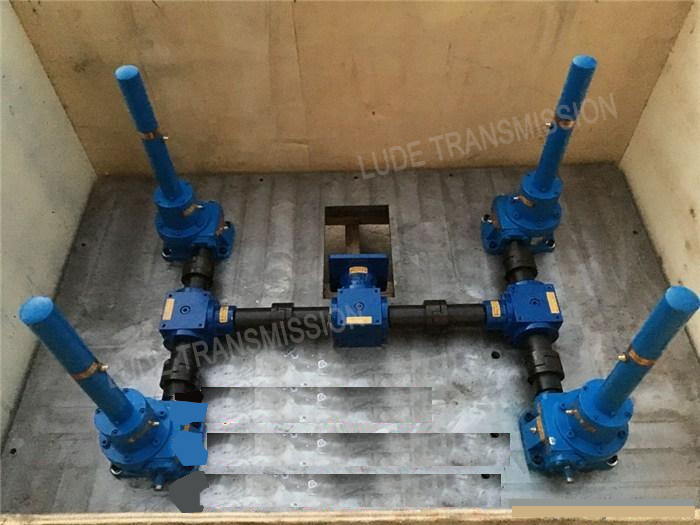

Four-set Linkage Screw Jacks System
Four-set linkage screw jack system can be  I and T configuration, transmission efficiency can be 85% .
hand wheel screw jack motorized screw jack price
Eight-set Linkage Screw Jacks System
Eight-set linkage screw jack system can be 2H and H configuration, transmission efficiency 80%.
screw jack lifting system
Multiple Screw Jack Lifting System
Screw jack lift system structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shafts.
1
Inverted High Efficiency Screw Jacks system H

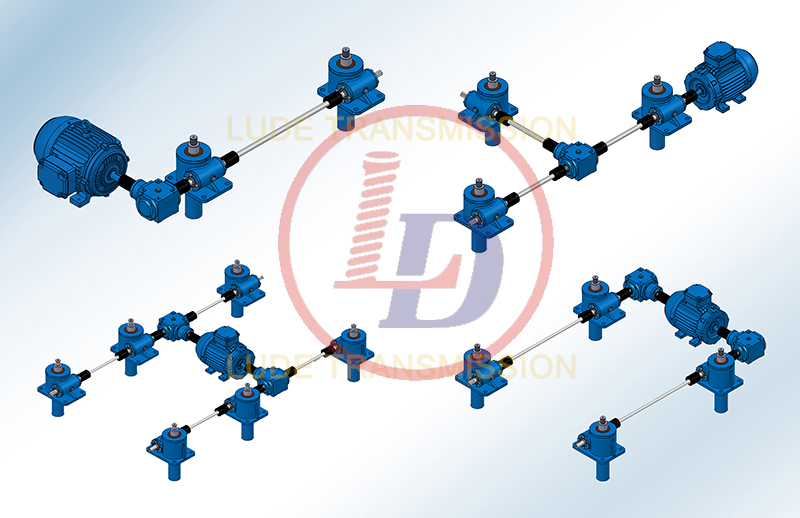

The screw jack linkage design is to connect more than two sets of screw jacks together through couplings, connecting rods and with motor other accessories. The arrangement of the combined screw jacks can be customized according to needs.The common arrangements are shown in the figure below
