Eight-set Linkage Screw Jacks System

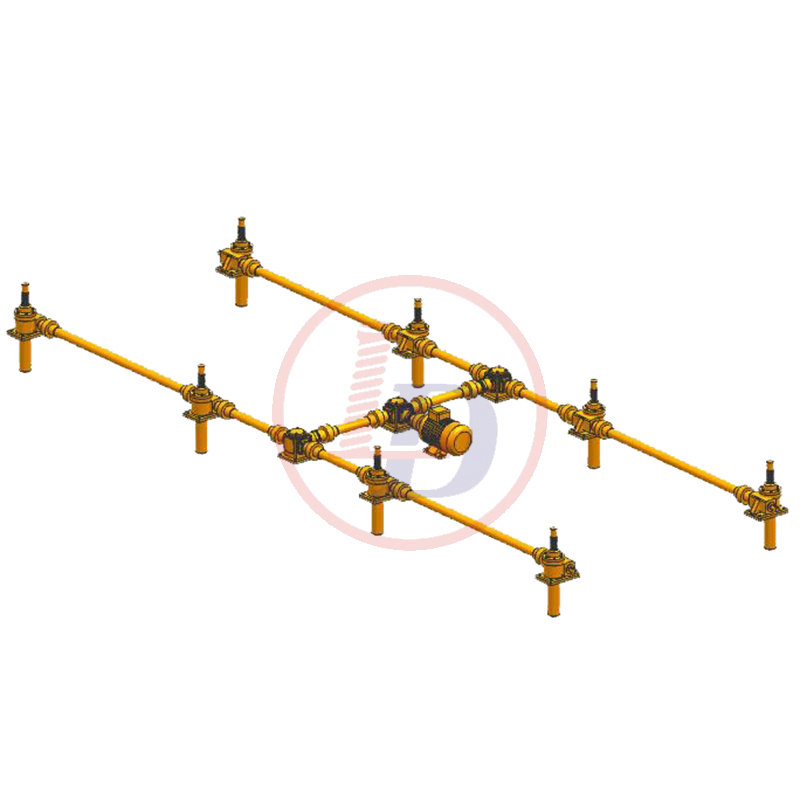

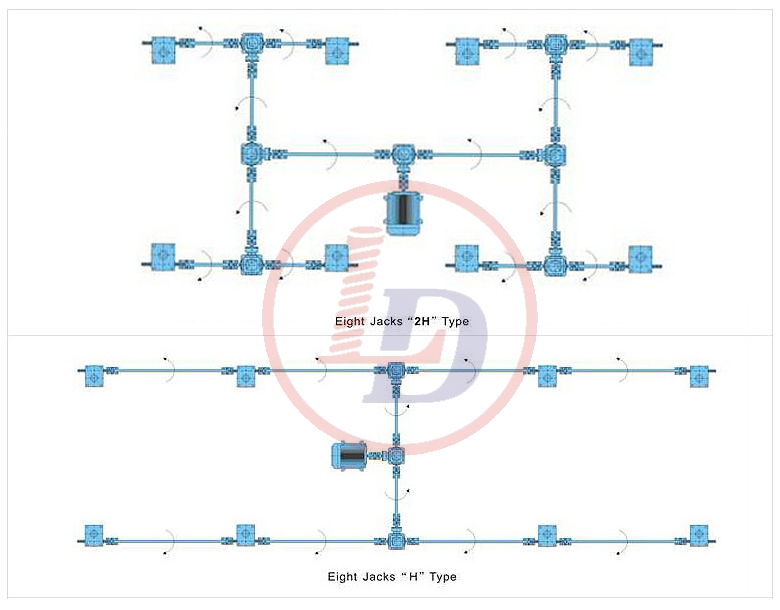

Eight-set linkage screw jack system can be 2H and H configuration, transmission efficiency 80%.
Inquiry now
  • Product Details
  • Photo

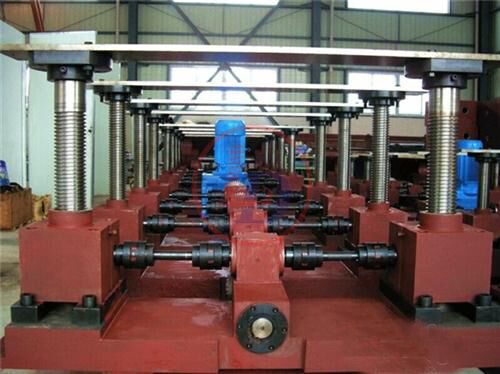

Eight-set linkage screw jack system can be 2H and H configuration, transmission efficiency 80%. It usually consists bevel gearbox, screw jack, electric motor, gear reducer, hand wheel, pillow block bearing, jaw coupling, line shafting.


Screw jack system/Screw jack linkage is used in theatre stage lifts, sheet steel and steel pipes production lines, coil sheet slitter lines, paint coating lines, rewinding lines, pickling lines, cut to length lines, continuous hot dip galvanizing lines, spray infeed conveyor lift systems, wood working machines, plastics processing machines, textile machines, assembly equipment in the automobile and aircraft industries, food and beverage production equipments, packaging machines, adjusting synchronous coil feed lines rolls, feeder levelers and railway maintenance lifting platform.
