Small size acme screw jack 80KN

SJA80 mini screw jack is of trapezoidal screw and has compact structure.


  • Item No.:

    SJA80
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Tianjin/Qingdao
  • Lead Time:

    within 15 days after paynebt received
follow us :
  • Product Details

  • Photo

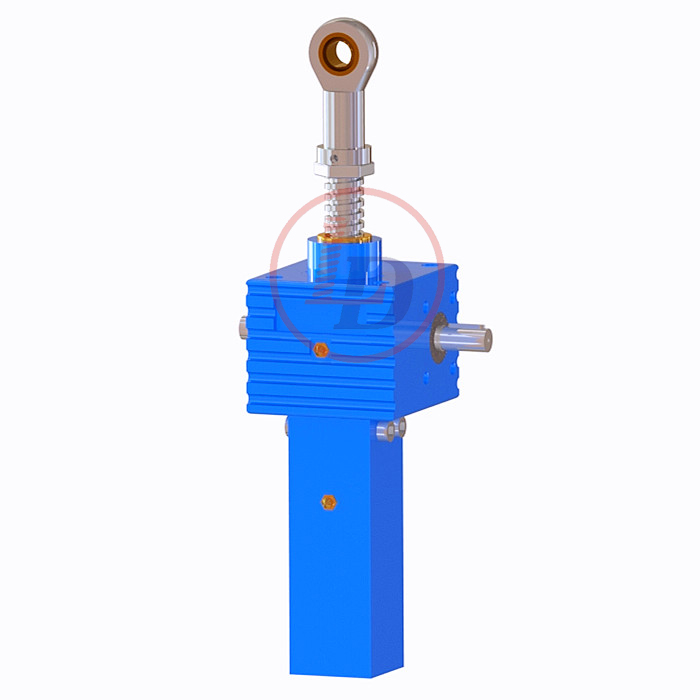

Small size acme screw jack SJA80 pictures


SJA80 Mini Screw Jack Features

Maximal load: 80kN

Screw diameter*thread dimension:Tr50*8mm

High ratio 8,low ratio 32

Translating type and rotating type available

Different screw end tops available

Self locking function is available.

Hand operated screw jack can be driven by handwheel or crank,electric screw jack by 3 phase electric motor or single phase motor or gearbox

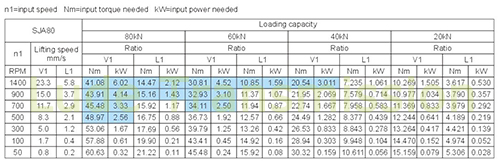

SJA80 Mini Screw Jack Specification

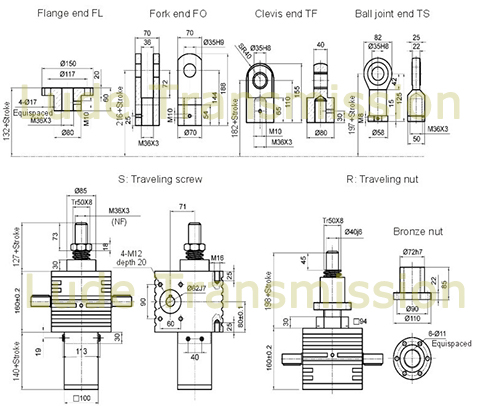

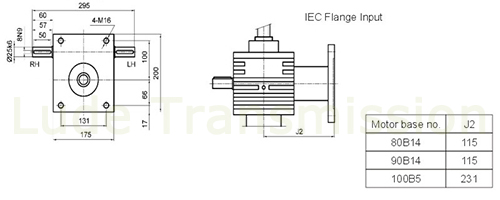

SJA80 Mini Screw Jack Dimensional Drawing

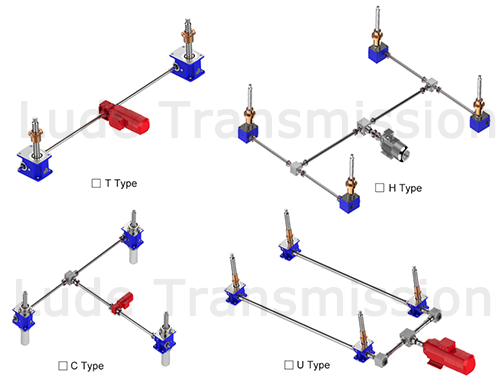

If multiple screw jacks arrangements needs to be selected, pls take the below for reference:

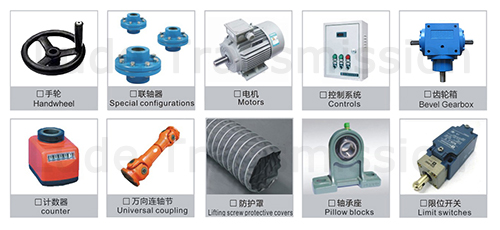

Other accessories may be needed:




MICRO SCREW JACK

SMALL CUBIC ACME SCREW JACK
