Mini Cubic ball screw jack of translating type

Cubic ball screw jack has the feature of the compact structure and high precision ball screw.
  • Item No.:

    SJB10
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Tianjin/Shanghai/Qingdao
  • Lead Time:

    15 days after order confirmed
follow us :
  • Product Details

  • Photo

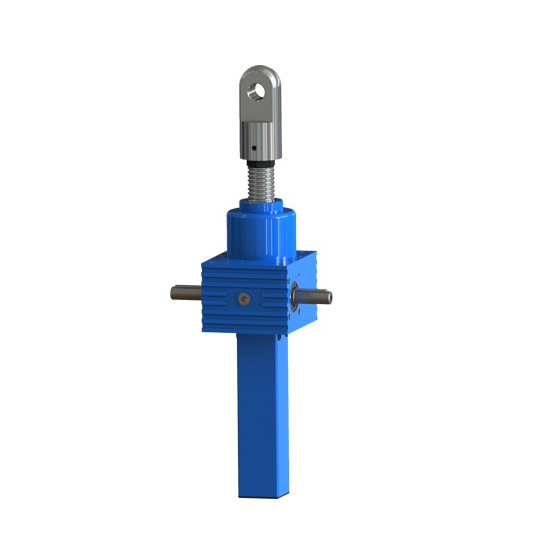

SJB10 Cubic Ball Screw Jack Pictures

small ball screw lift

SJB10 Cubic Ball Screw Jack Features

Max lifting load: 10kN

Dynamic load:11kN

Screw diameter 20mm,screw pitch 5mm

High speed ratio:4    Stroke per one put turn: 1.25mm    Max input power:0.57kW

Low speed ratio:16     Stroke per one put turn: 0.31mm    Max input power:0.27kW

Different top end types available

Stroke: 10mm to 6000mm, can be customized as per detailed needs


SJB10 Cubic Ball Screw Jacks Specification

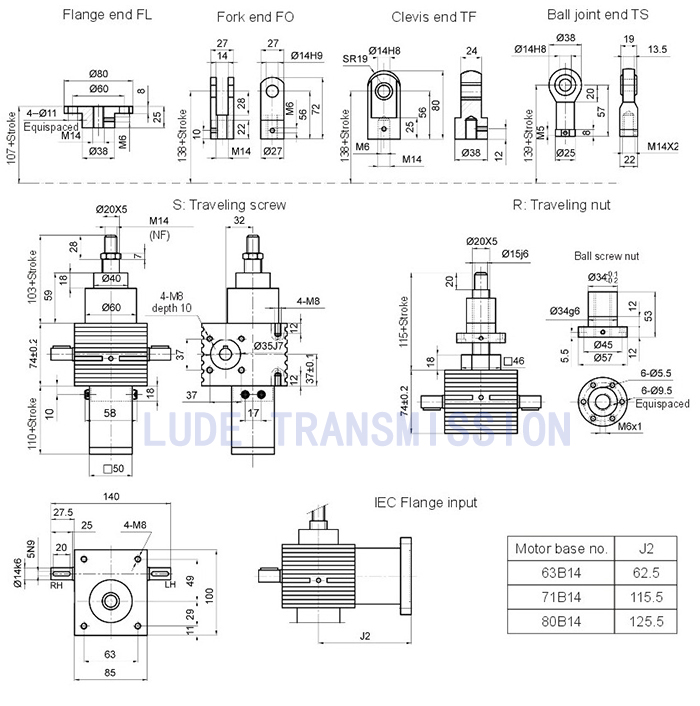

SJB10 Cubic Ball Screw Jacks Dimensional Drawing

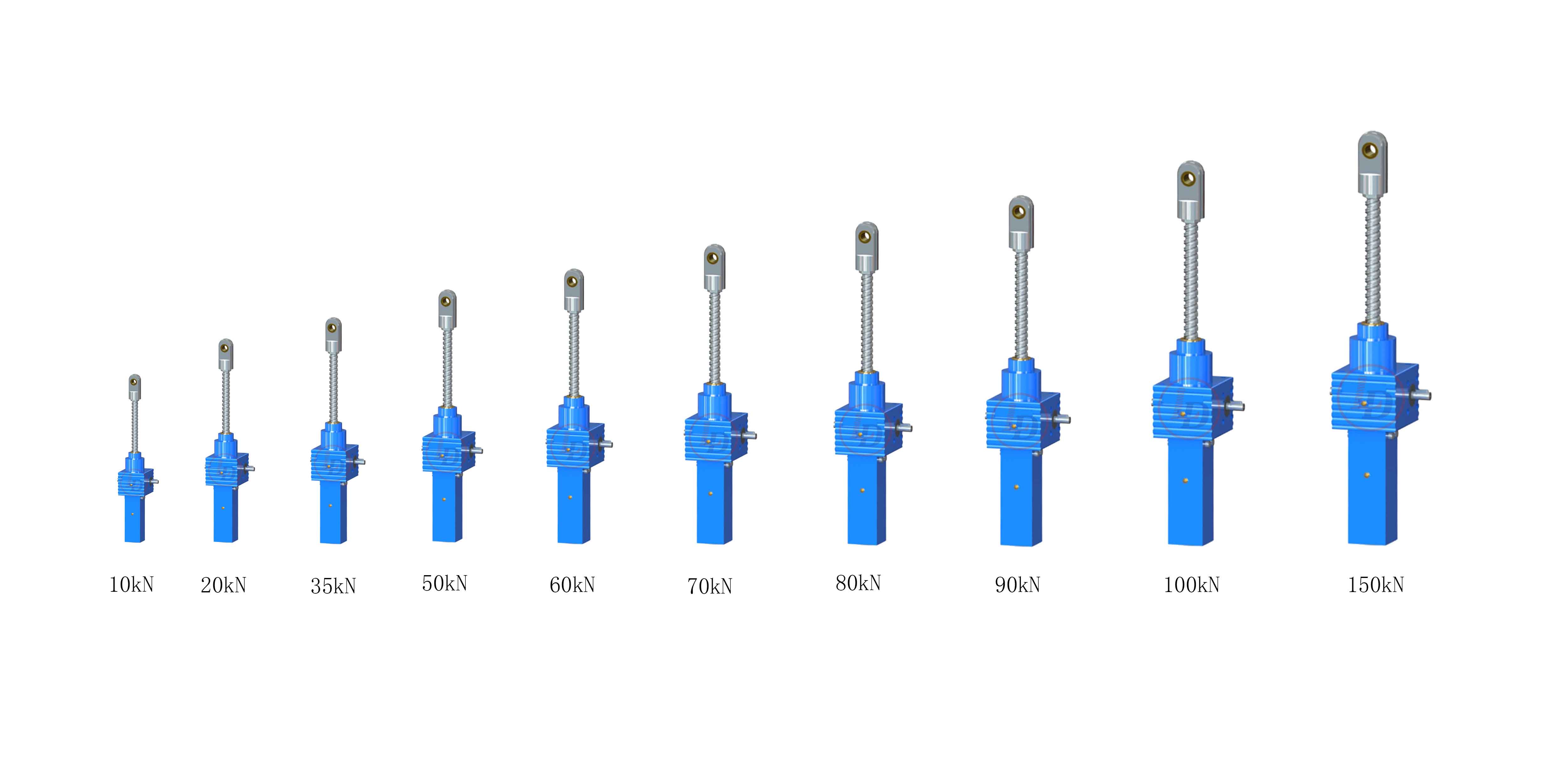

 Ball Screw Jacks

>>More Ball Screw Jacks Series

How to choose suitable screw jack?

Q1: The capacity is to load   3000  KG   (it means how many Kg or Tons the screw jack need to lift or drop?)
    The stroke is   1500  mm      (it means the screw shaft length, such as 500mm)
The lifting speed is   300   mm/second (it means how much time you want to use to finish the stroke? Such as I want to use 20 seconds to finish the 500mm stroke then can come out the speed is 25mm/s )

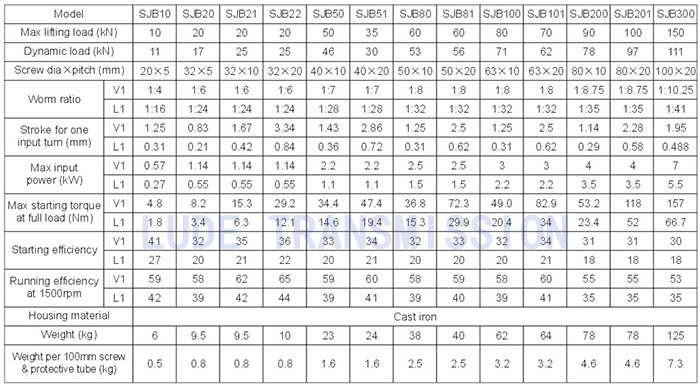

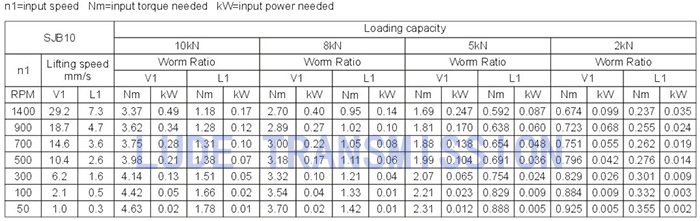

Cubic Ball Screw jack  performance parameters table as the below:

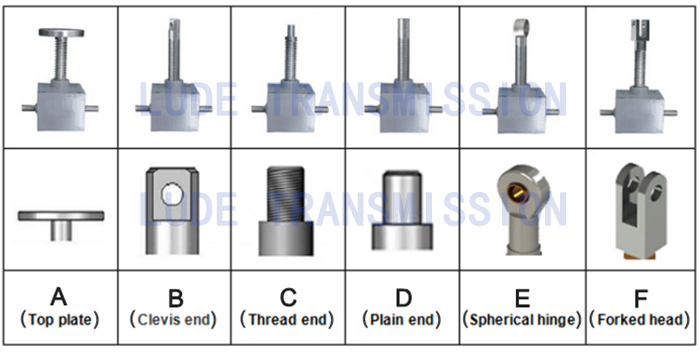

Q2: Which the screw top you need?  Answer:  I need          (A B C D E F).

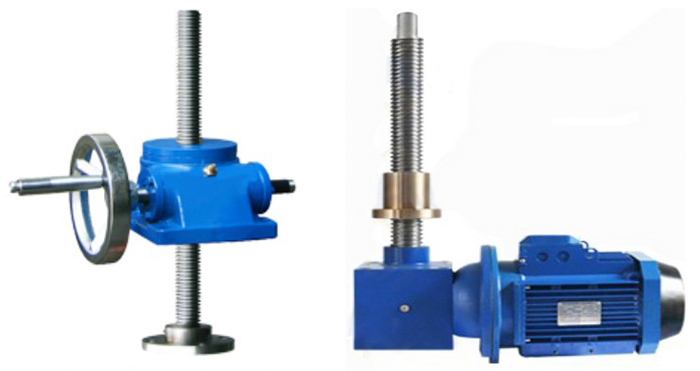

Q3: Manual type (Hand wheel driven) or electric motor driven type? Answer: I need         type.

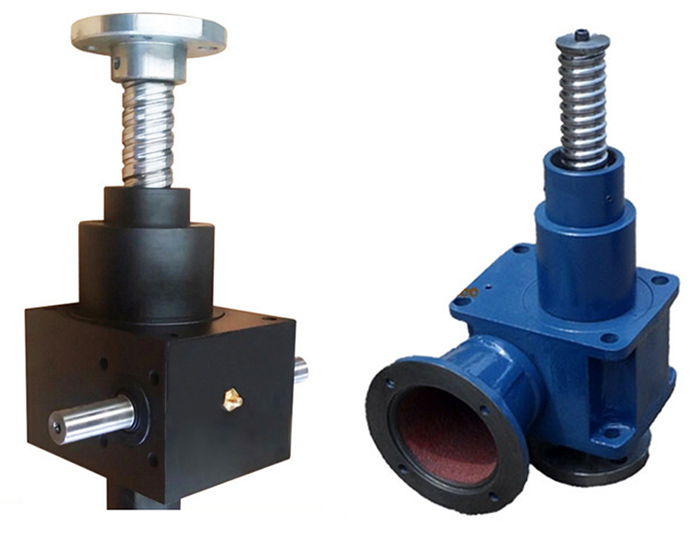

manual and electric screw jack

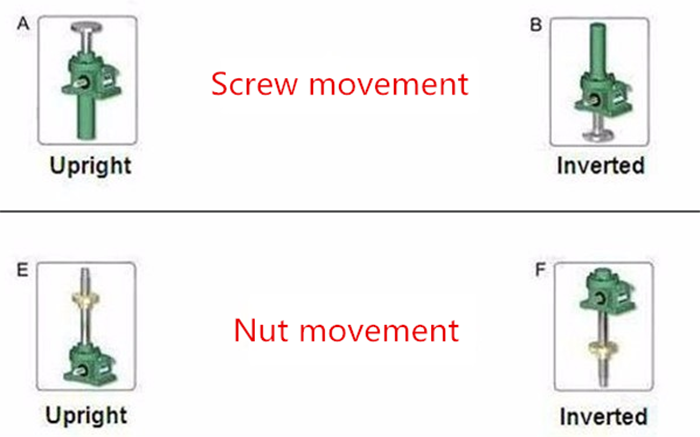

Q4:  Screw movement (screw travelling up and down when working) or Nut movement ? (the nut travelling up and down when working)  Upright or Inverted?    Answer: I need           (A B E F)



Q5: Screw jacks linkage

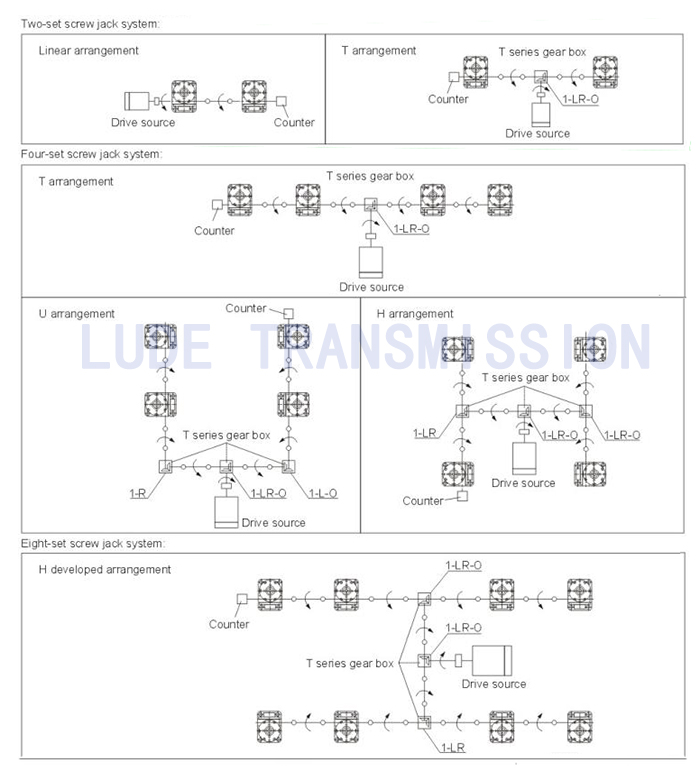

    Do you need two or above two sets screw jacks to linkage, if yes pls see the below screw jacks linkage    scheme, if no pls ignore this.
Answer:  1. No need   2. Need,           sets (2 /3 /4 /8 or other sets) screw jacks to linkage,        ( I /T / L / H / U) )type ( Or you can mark it out on the below screw jacks linkage scheme picture).


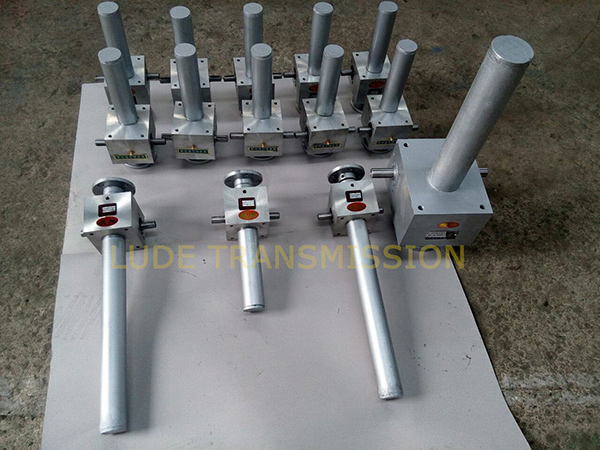

mini ball screw jack
