Screw Jack System

The advantages of worm gear screw elevator linkage, the worm gear screw elevator platform (screw lifting platform) is a mechatronic motion execution unit that cleverly combines the motor, reducer, steering gear, worm gear and worm elevator through couplings, connecting rods, etc.


1. Compact structure.


2. Small size, light weight, wide power source.


3. No noise, easy installation, flexible use, and multiple functions.


4. There are many types of suits, high reliability and long service life.


5. Simple structure, easy processing, low cost, large transmission axial force, self-locking, high positioning.


follow us :
  • Product Details

  • Photo

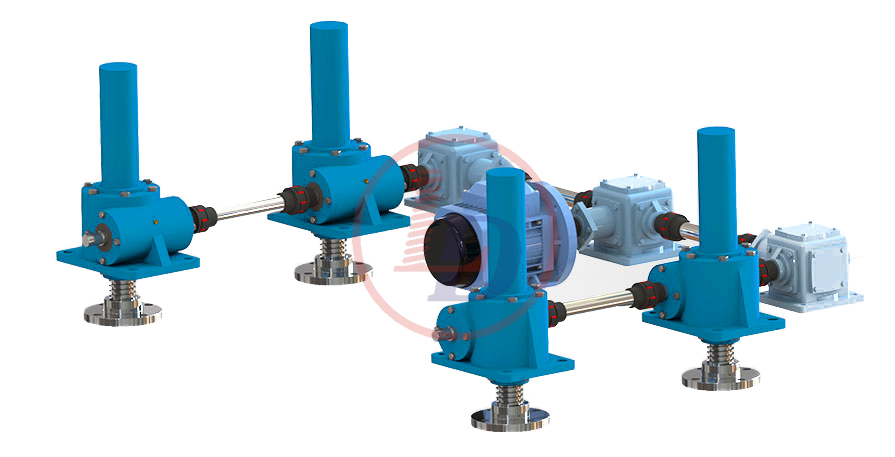

screw jacks may be easily configured in systems, motorized and manual, to raise and lower a load in unison. It is suitable for industrial applications in a variety of industries, with a variety of combinations and flexible operation.




Arrangement recommends no more than 400MM in one minute. Because the slower the linkage speed, the higher the safety factor and the lower the noise, lower motor power (lower input torque ).

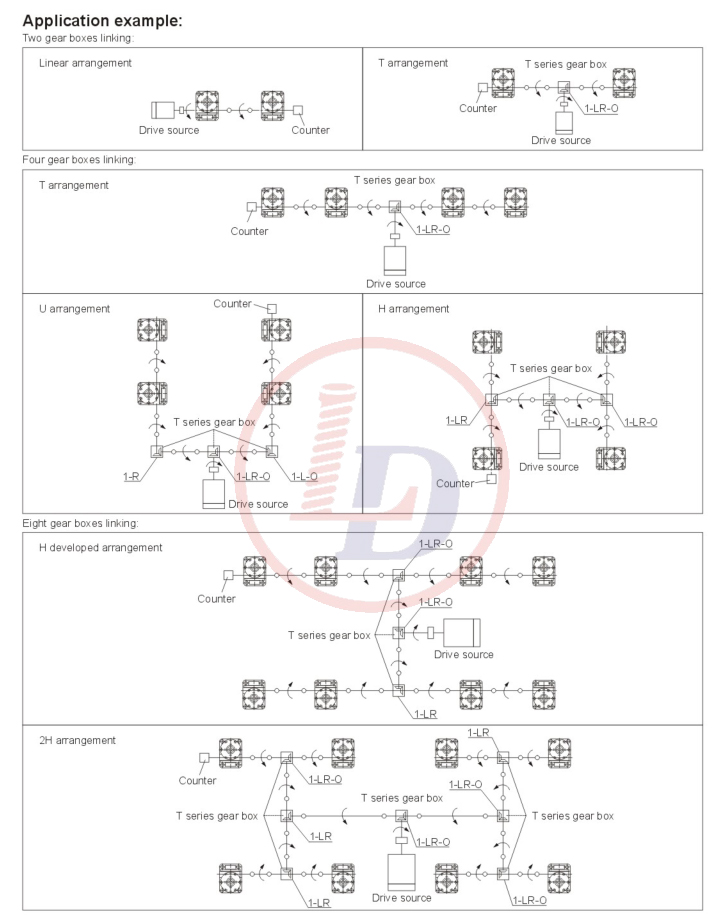

In a single jack application, with no guide rails to isolate lateral load, a Rotating or Keyed screw jack must be used. Multiple jack applications, or single jack applications that are fully guided may use Translating or Keyed-Type screw jacks.




If the connecting shaft is used in arrangement with more than 1.5 meters, it is recommended to use a Trunnion.





Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
ACME SCREW JACK SYSTEM
Worm Gear Screw Jack Lifting Platform
Screw jack lifting table or Platform structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shaftings.
worm screw jack lift table
High Efficiency Worm Gear Screw Jack Systems
Screw jack lift system structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shaftings.
 Automatic Screw Jack Lift System
Good Performance Screw Jack Lift System
Screw jack lift system structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shaftings.  Screw Jack System Features: 1. Heavy duty, self-locking, positioning precision, uniform lifting speed, fully synchronization, easy installation, easy operation 2. Two screw jacks system, three screw jacks system..forty screw jacks system. 3. Extremely high capacity requirements of need very precise up or down control. It's of high mechanical, they are an excellent choice when hydraulic, pneumatic or chain systems are prohibitive choices. 4. Widely used in wood working machines, plastics processing machines, textile machines, assembly equipment in the automobile and aircraft industries, food and beverage production equipment as well as packaging machines.
screw jacks with handle or electric motor
Screw Jack Systems Used in Automated Production
Screw Jack Systems offer comprehensive lifting and positioning design solutions for a wide variety of industries. Our years of application experience assures that all elements of the design process are considered.
electric worm gear screw jack lift

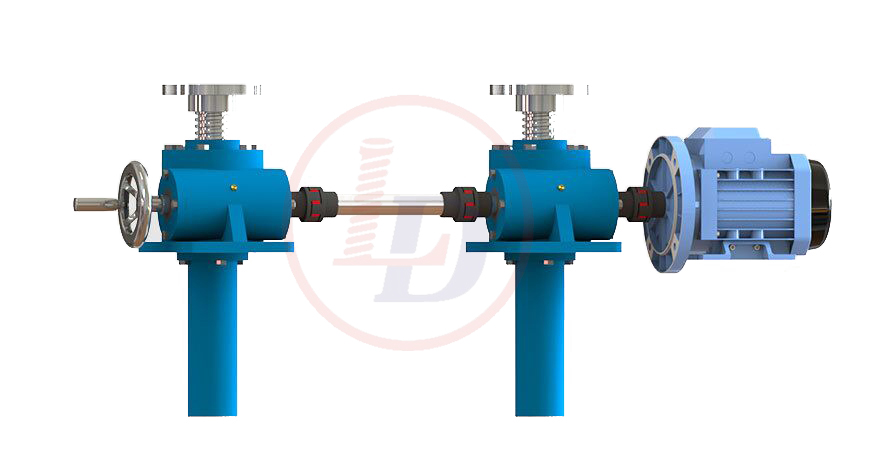

Two-set Linkage Screw Jack System
Two-set linkage screw jack system can be "L", I and T configuration.  It usually consists bevel gearbox, screw jack, electric motor, gear reducer, hand wheel, pillow block bearing, jaw coupling, line shafting.
acme ball screw jacks screw lift

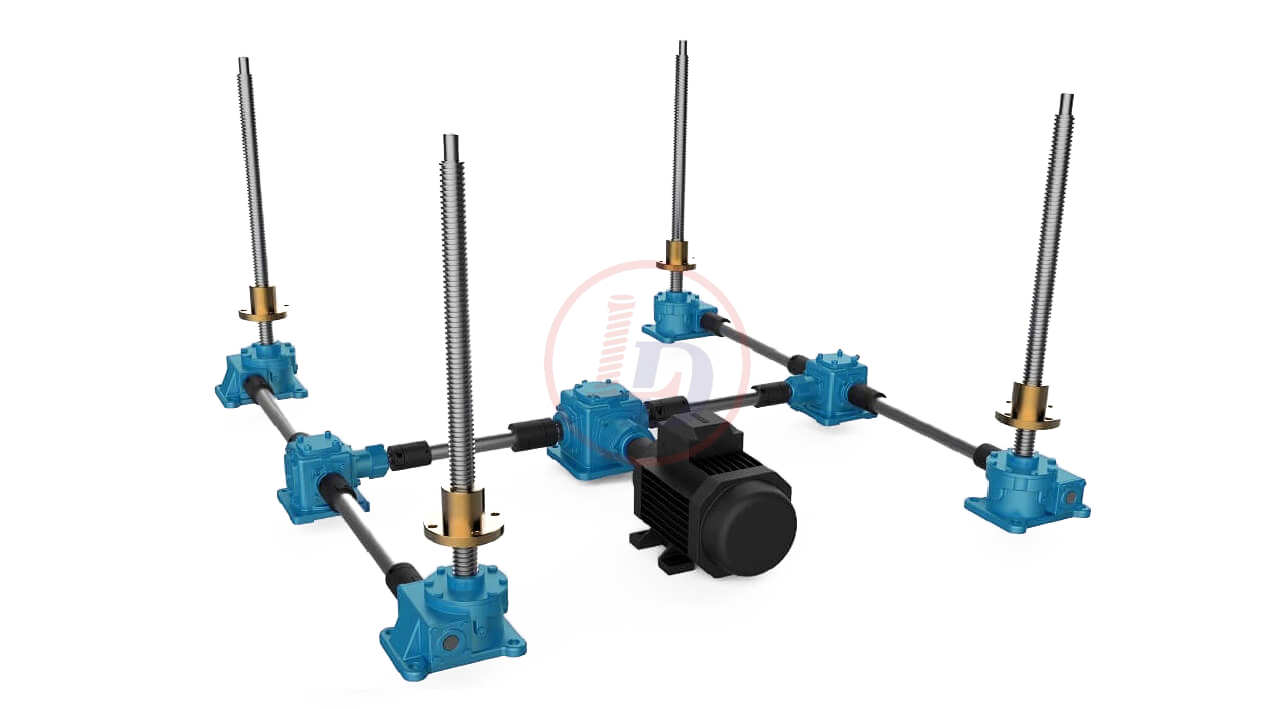

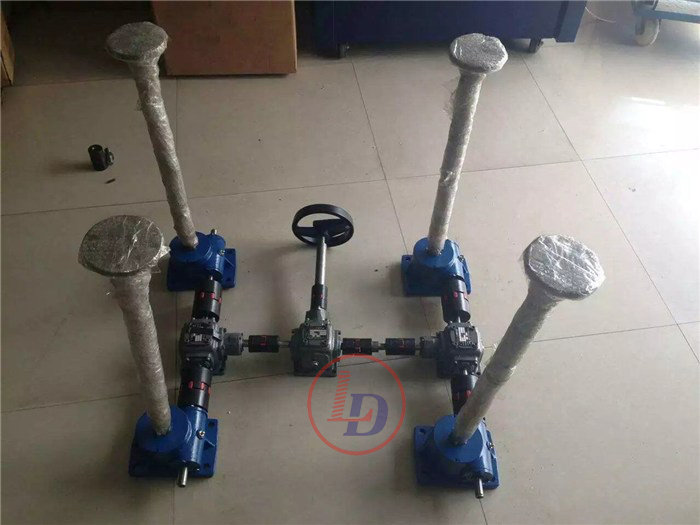

Four-set Linkage Screw Jacks System
Four-set linkage screw jack system can be  I and T configuration, transmission efficiency can be 85% .
hand wheel screw jack motorized screw jack price

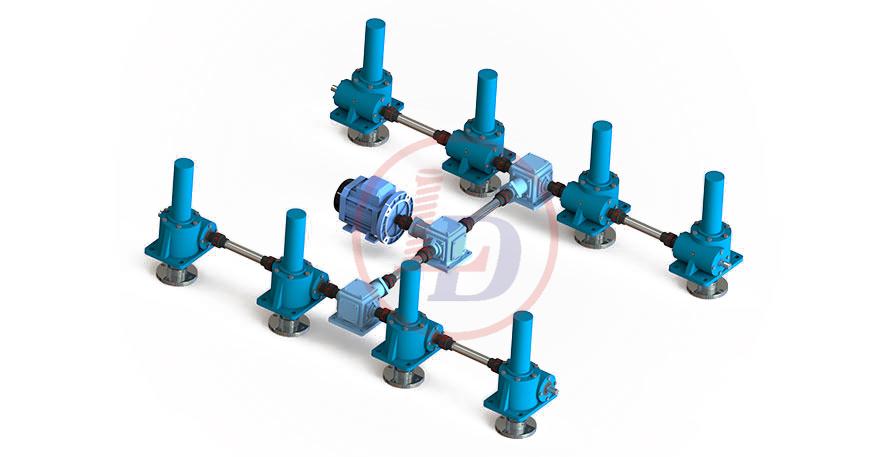

Eight-set Linkage Screw Jacks System
Eight-set linkage screw jack system can be 2H and H configuration, transmission efficiency 80%.
screw jack lifting system
Multiple Screw Jack Lifting System
Screw jack lift system structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shafts.
