Screw Jack Lift Table High Efficiency Screw Jacks system

The screw jack linkage design is to connect more than two sets of screw jacks together through couplings, connecting rods and with motor other accessories.
  • Brand:

    Lude
follow us :
  • Product Details

  • Photo

  • Video

  • Case

  • Download

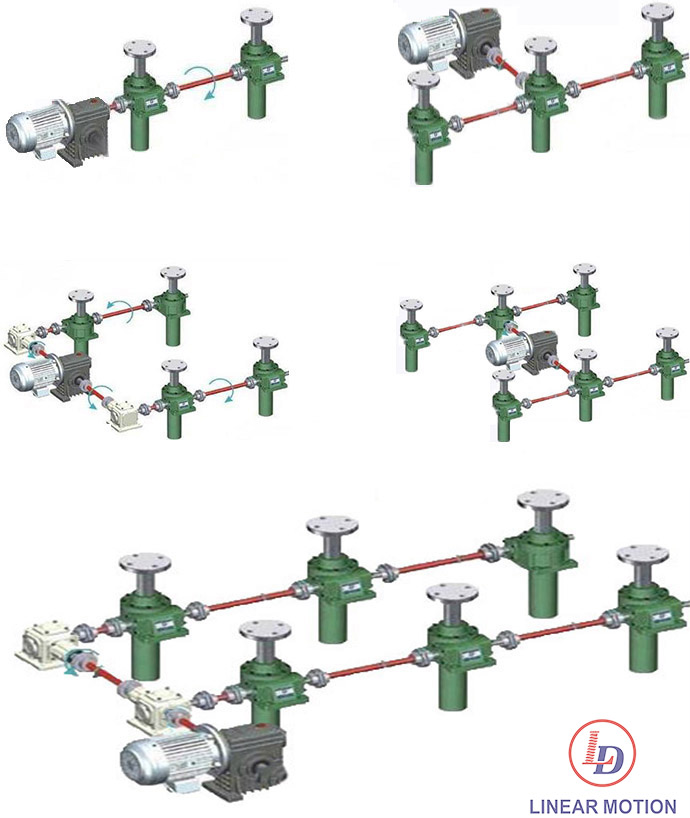

The arrangement of the combined screw jacks can be customized according to needs.The common arrangements are shown in the figure below

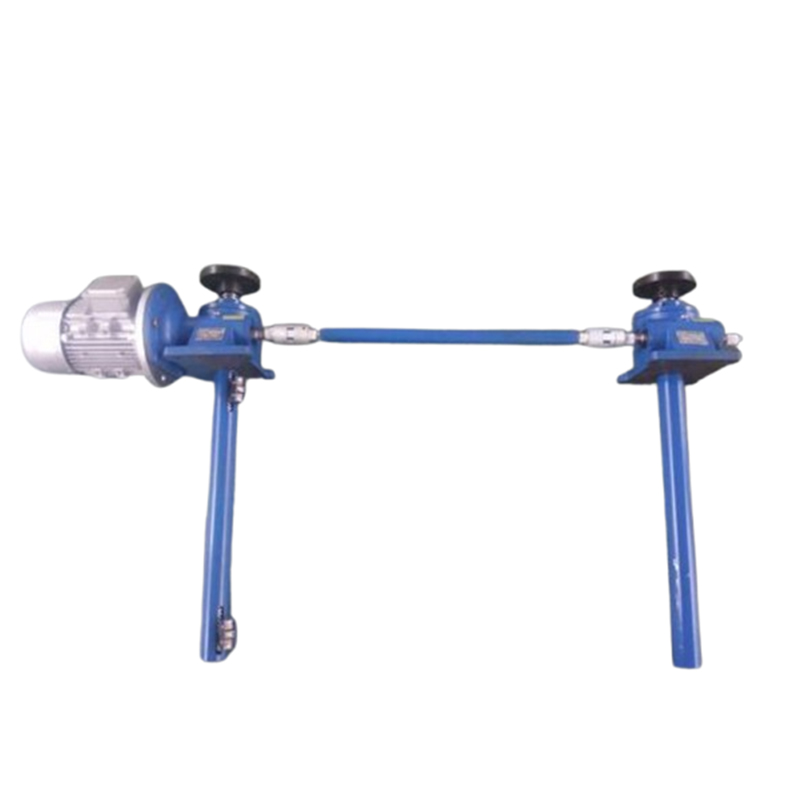

Two screw jacks Type

Type T and straight type

Three screw jack types

Type T

Four screw jack types

Type T , Type H , Type U

Six screw jack types

Type H , Type U

Selection of screw jack type

Ball screw jack, trapezoidal screw jack, stainless steel screw jack

Type of installation

Upright and inverted



Technical Data Sheets &CAD

  • SWL Series Screw Jack

    PDF
