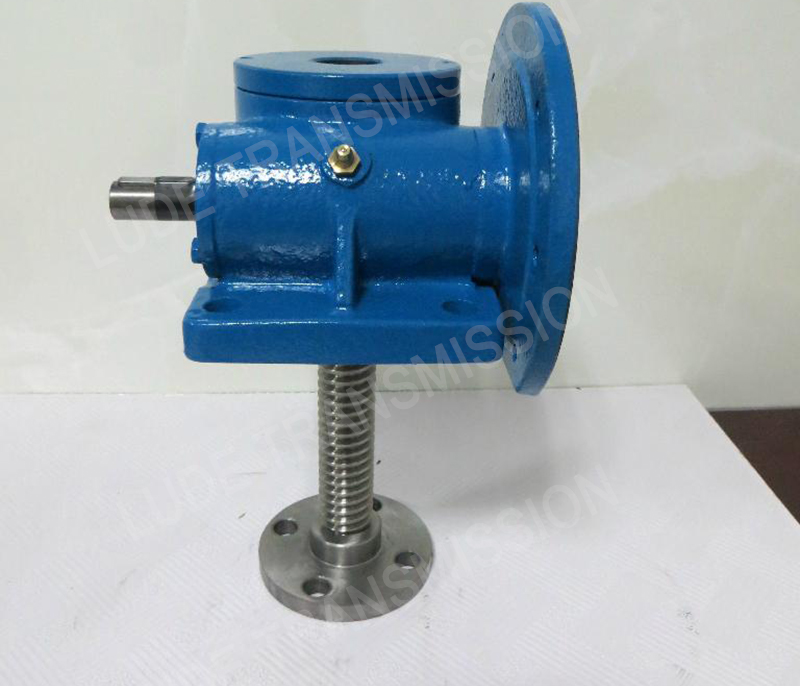

High Accuracy Low Noise Worm Machine Screw Jack Screw Lift

Screw jack lift is a basis jack-up part, accomplish the functions such as lifting, drop, push and inverting through worm gear drives screw.
follow us :
  • Product Details

  • Photo

1. Screw Jack  Function:


Worm gear screw jacks are ideal for various applications, regardless if you are lifting, lowering, tipping or moving. In each case, the different industries and the different power parameters require a powerful, reliable screw jack that is easy to adapt to the specific
application, and to extend to a complete worm gear screw jack system.


2. Our Jack's Advantages:
-Self-locking ability
-Can be driven directly by motor or other power or manual
-Can be customized according user's demand
-Compact configuration, small size, lightweight
-Convenient installation, flexible operation
-High reliability and stability

-More connection form etc.


3. How to Choose a Screw Jack?

Q1: The lift capacity is ? Kg (it means how many Kilos or KN the screw jack need to lift)
       The screw’s travel stroke is ? mm (it means the screw length, such as 400mm)
  The ratio? (it means how much time you want the screw to use to finish the travel stroke? Such as I want to use 10 Sec to finish the 400mm stroke, it means the speed requirement)
Answer: I need lift      Kn (Kg) weight,  stroke is     mm,  I want to use     seconds to finish the stroke.

Q2: Which the screw top you need?  Answer:  I need          (T H S R).

Q3: Hand wheel driven (manual) or electric motor driven?   Answer: I need____.


Q4: Linkage scheme, if you need two or above two sets screw jacks to linkage, pls see the below.
