5 ton SWL plate lifting screw jack for hand acme screw

The working principle of the hand operated worm gear screw jack is that the worm (also called the input shaft) is manually rotated by the hand wheel. the worm wheel(also called the worm gear) is rotated by the worm, and the trapezoidal lifting screw is moved by the rotating worm wheel.

Brand:
Lude
Payment:
TT
Product origin:
ShanDong of China
Color:
customize
Shipping port:
Tianjin or Qingdao
Lead Time:
15

Inquiry now

follow us :

Product Details
Video
Case
Download

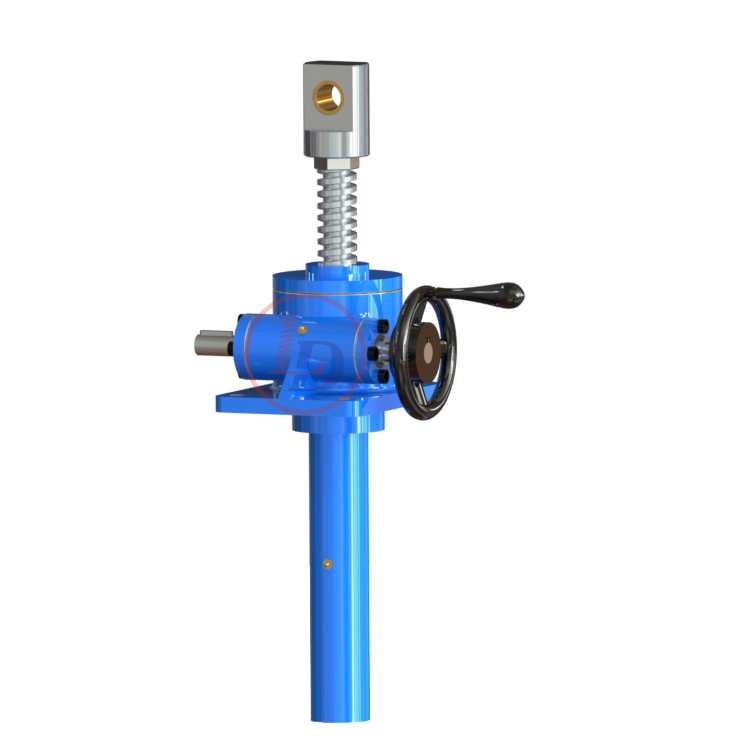

Hand Operated Screw Jack is composed of hand wheel or hand crank and a worm gear screw jack.It is idea solutions for applications where electricity or power generators is inconvenient or dangerous.

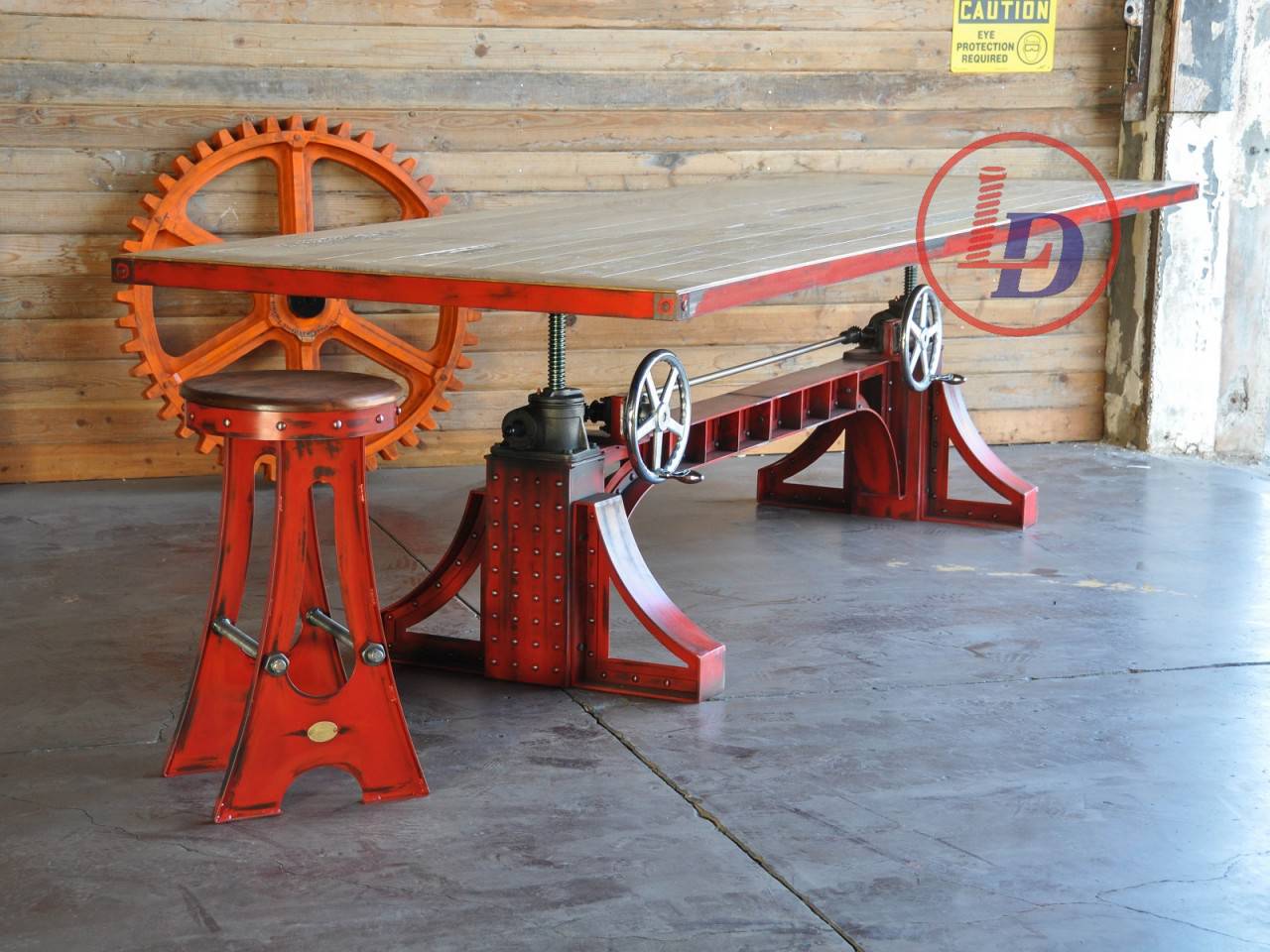

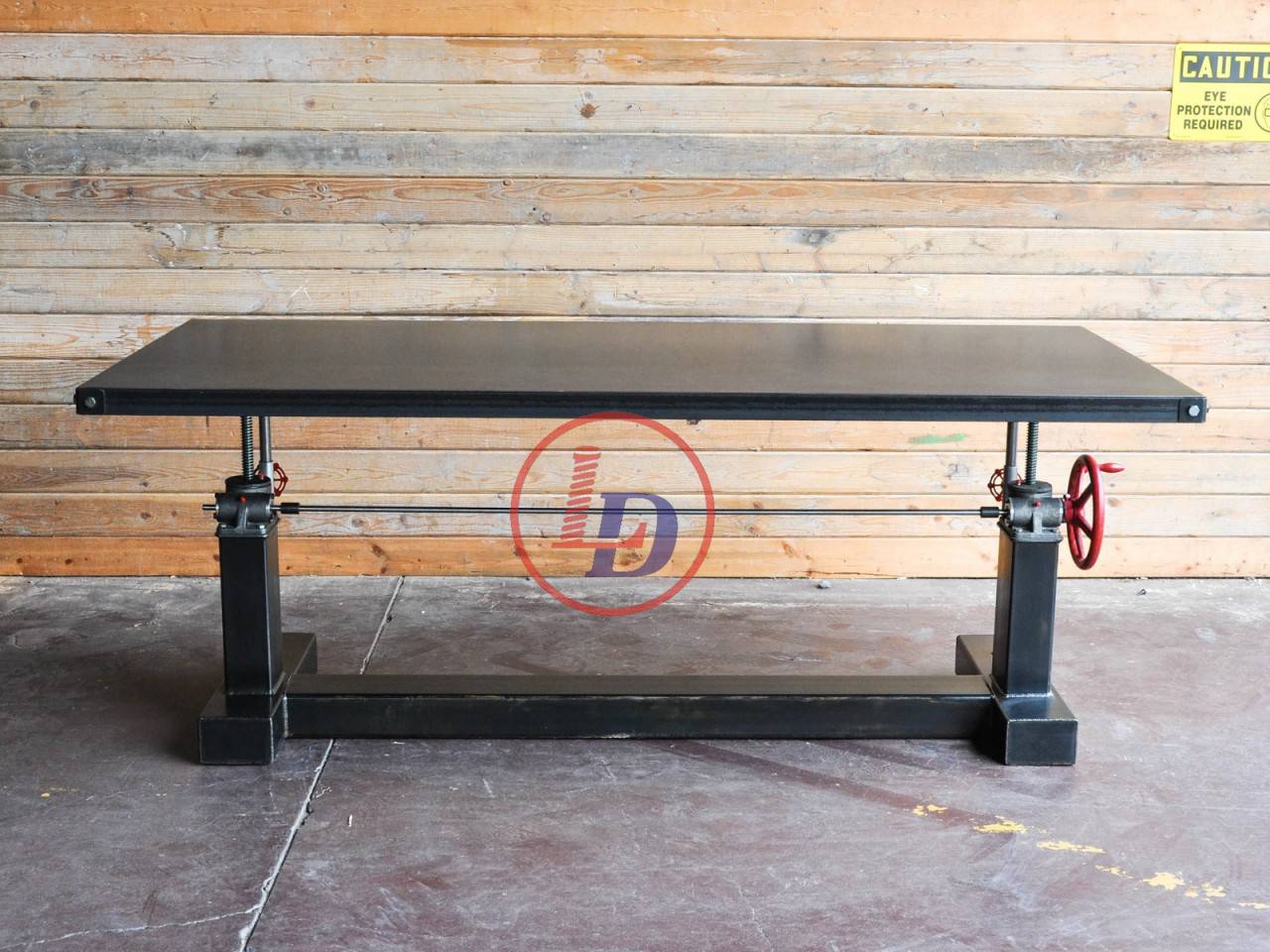

The Crank table is very popular, can be used as personal computer desk or meeting table or industrial adjustable table etc.

Technical Data Sheets &CAD

SWL Series Screw Jack

PDF

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 5 ton SWL plate lifting screw jack for hand acme screw
