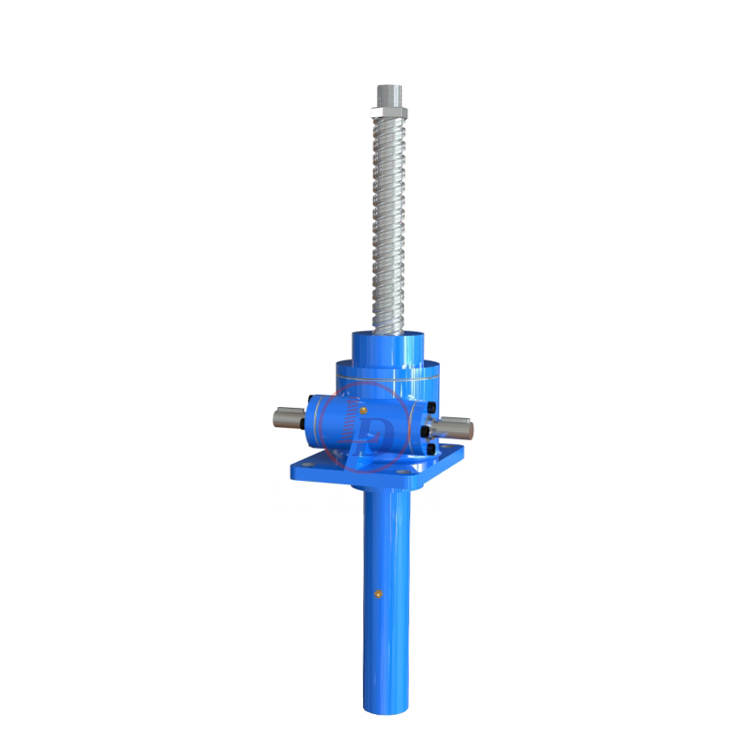

Rotating Ball Worm Gear Screw Jacks 15 ton

Ball screw jack 's lifetime is about 3 times of acme screw jack and has the advantages of high efficiency and high speed.
  • Item No.:

    JWB150
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Qingdao/Tianjin/Shanghai
  • Lead Time:

    20-30 days after payment received
follow us :
  • Product Details

  • Photo


Brief Instruction&Picture


Ball screw jack 's lifetime is about 3 times of acme screw jack and has the advantages of high efficiency and high speed.The ball worm screw lifts are suitable for high services as well as for a very rapid, quick and precise positioning.


Main Parameters:

Maximal load:147kN
Outer diameter of screw: 55mm
Small diameter of screw: 43.1mm
Pitch of screw: 12mm
Worm ratio:1:8(high speed H) / 1:24(low speed L)
Amount of lift per revolution for ratio H: 1.5mm
Amount of lift per revolution for ratio L: 0.5mm
Permissible output maximal power: 4.2kw(high speed)   2.1kw(low speed)


The ball screw jacks are preferred for:
• Long travel lengths
• Long, predictable life
• High duty cycles
• Oscillating motion


Outline Drawing



FAQ



Q1. Can I get one or more samples?

A: Yes,Sample orders welcomed. Low amount free samples could be provided when we have stocks.

Q2. How about the quality of your product?

A: Passed ISO9001:2008 quality authentication.

Q3. OEM/ODM accepted?

A: Yes, Please send you new product drawings or sample to us if you have, and we can customize as per your requirement. We will also provide professional advice of the products to make the design to be maximize the performance.

Q4. If you can not find the product on our website,how do you do?

A: Please send us inquiry with product pictures and drawings by email or other ways you prefer, we'll check if we could produce.

Q5. Can I trust you?

A: Absolutely yes. Samples could be provided to test firstly, we're also Alibaba trade assurance golden supplier.

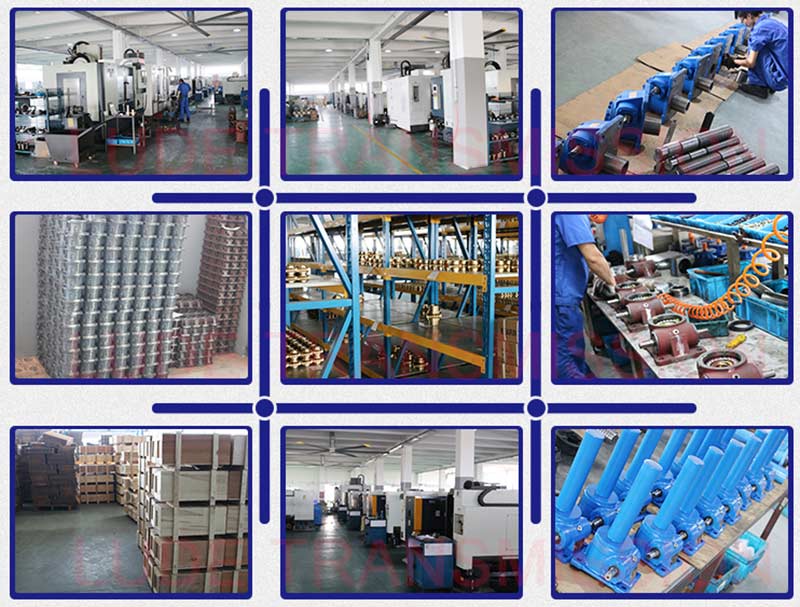

Our workshop

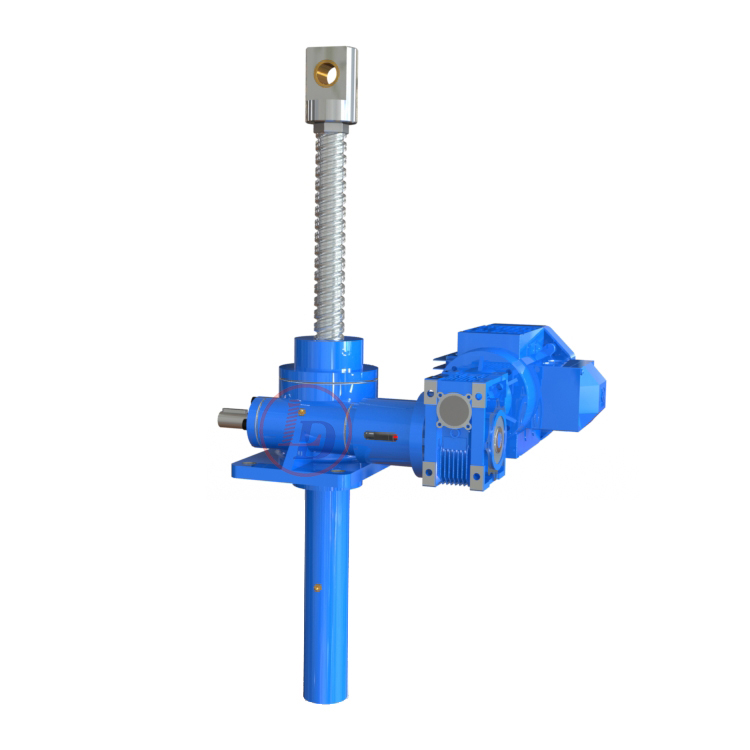

Rotating Ball screw jack

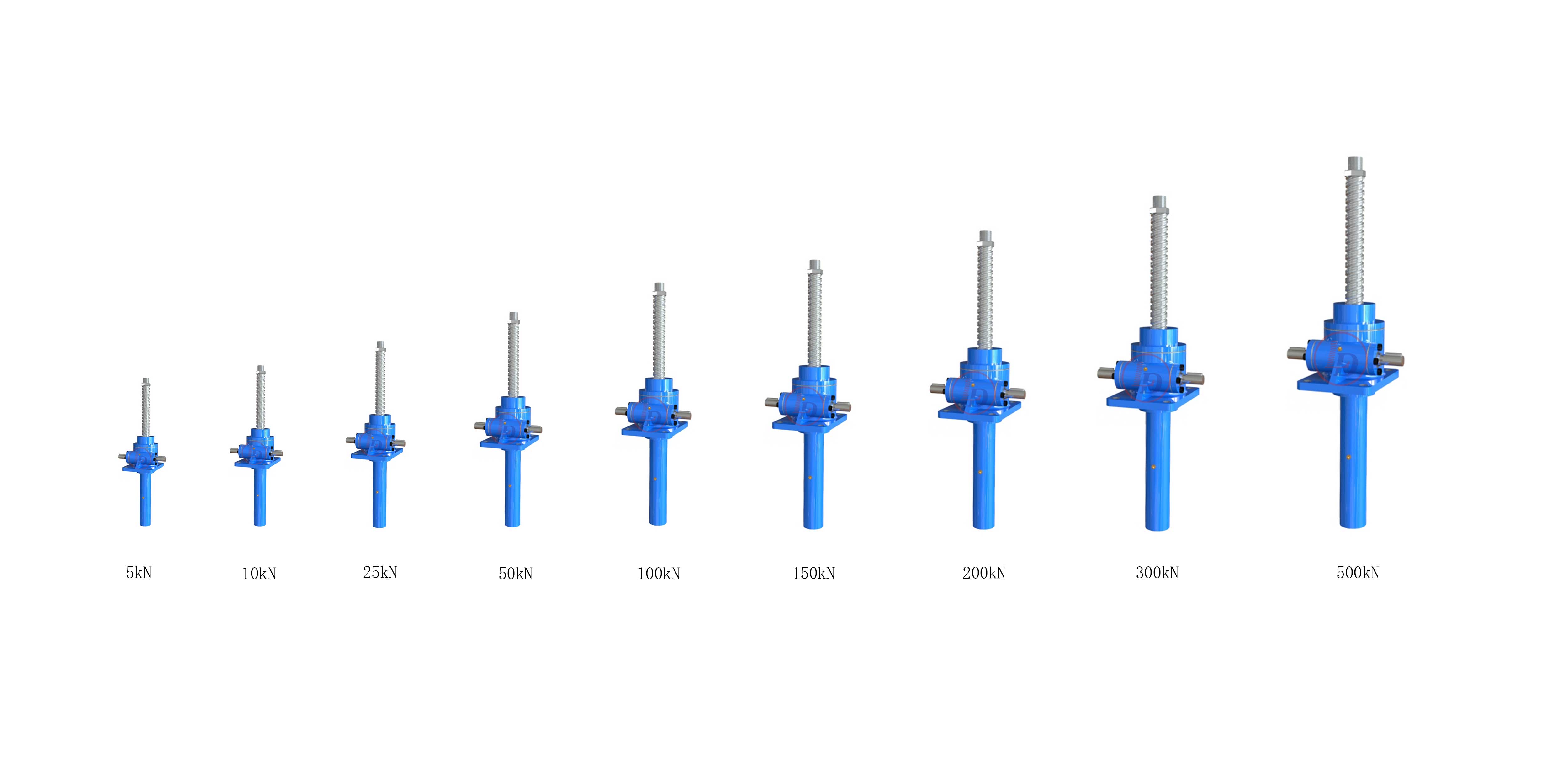

 BALL SCREW JACK



Ball screw jack parts:
