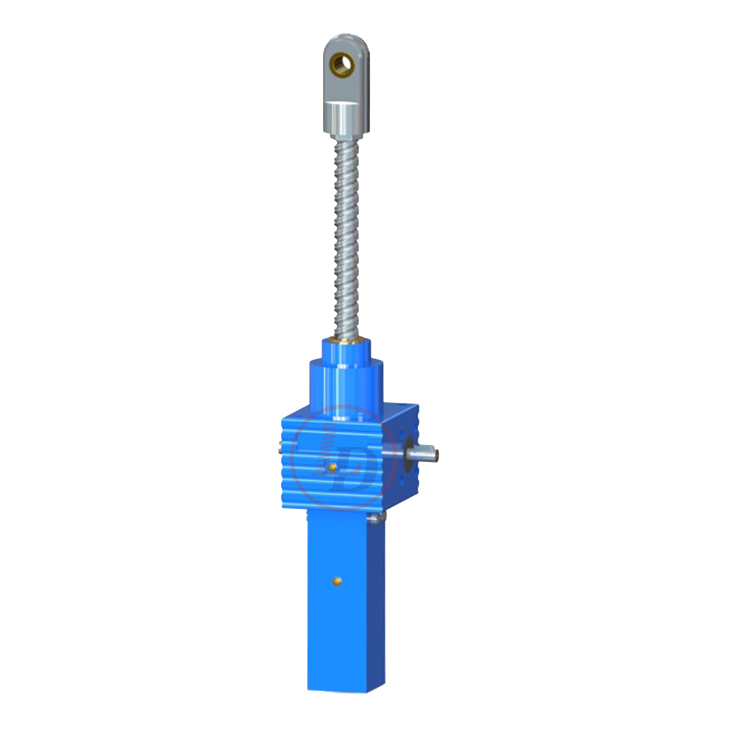

High-speed Mini ball screw jack 1T

Ball screw jack 's lifetime is about 3 times of acme screw jack and has the advantages of high efficiency and high speed.
  • Brand:

    Lude
  • Item No.:

    SJB10
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Qingdao/Tianjin/Shanghai
  • Lead Time:

    20-30 days after payment received
follow us :
  • Product Details

  • Photo

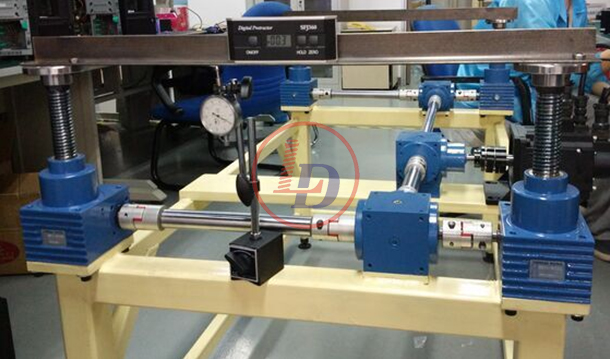

The ball screw jack can be employed for lifting, pulling, moving, aligning any kind of load with a perfect synchronism, which is difficult to obtain by means of other handling devices.The ball screw jacks are suitable for high services as well as for a very rapid, quick and precise positioning.



SJB 10 Cubic Ball Screw Jack  use a ball screw and nut made from hardened alloy steel with bearing balls carrying the load between nut & screw. This rolling action reduces the friction between nut and screw, permitting smooth and efficient load movement that requires approximately 1/3 less torque than a machine screw jack with the same load.


SJB 10 Cubic Ball Screw Jack Features:

Max lifting load: 10KN

Dynamic load 11kN

Screw diameter 20mm.screw pitch 5mm

High speed ratio: 4 Stroke per one put turn: 1.25mm Max input power:0.57kW

Low speed ratio:16 Stroke per one put turn: 0.31mm Max input power0.27kW

Different top end types available

Stroke: 10mm to 6000mm, can be customized as per detailed needs.


SJB10 Cubic Ball Screw Jacks Specification
