Electric Acme Translating Screw Jack 5ton

ACME worm screw jack is very popular for lifting. Both translating and rotating design are available.

  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Qingdao/Tianjin/Shanghai
  • Lead Time:

    20 days after payment received
follow us :
  • Product Details

  • Photo

1.  Picture & Function:

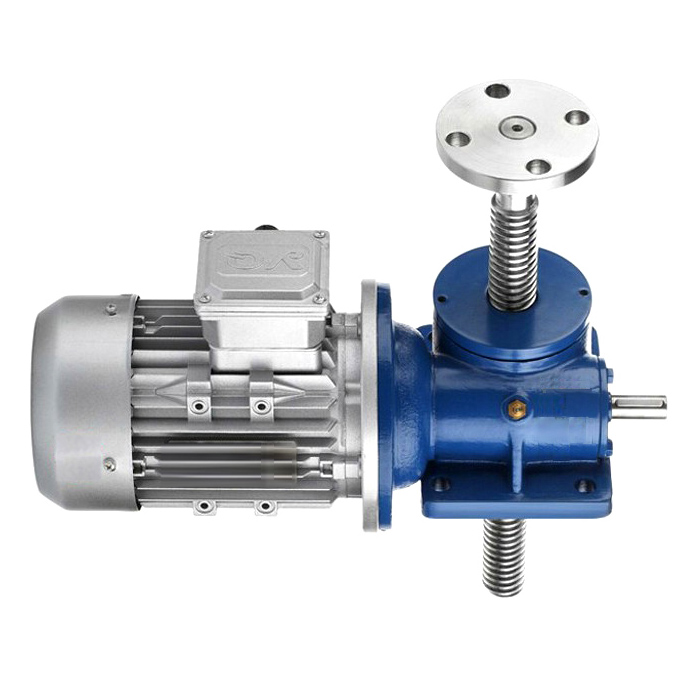

acme translating worm screw jack

ACME Translating Screw jack/lift is a basis jack-up part, accomplish the functions such as lifting, drop, push and inverting through worm gear drives screw. Its load capacity can be from 2.5ton to 120ton.


2. Main parameters:

Maximal load:50kN

Screw Thread size: Tr40×7

Worm ratio:1:6(high speed H) / 1:24(low speed L)

Amount of lift per revolution for ratio H: 1.167mm

Amount of lift per revolution for ratio L: 0.292mm

Permissible output maximal power: 2.59kw

Amounts of lubricant in transmission: 0.25kg


3.  Advantages:

-Can be of different screw top ends,like plain end/threaded end/top plate/clevis end/fork end.

-Self-locking ability
-Can be driven directly by motor or other power or manual
-Can be of different colors customized
-Convenient installation, flexible operation
-High reliability and stability


4. Production Show

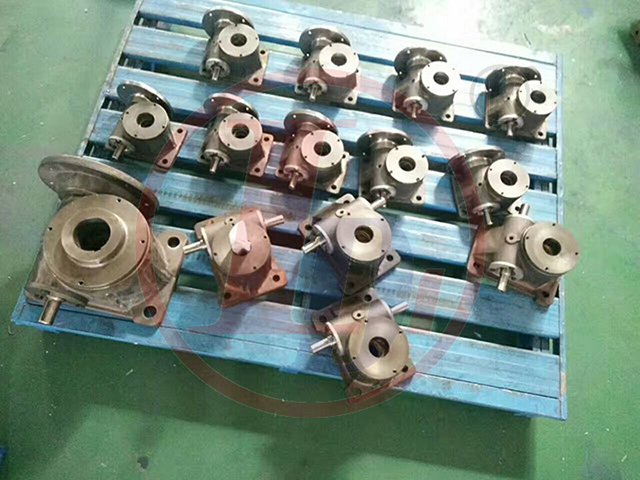

The acme translating screw jack before assembling.

screw jack assemblyworm screw jack with flange

5. Video about Electric Acme Screw Jack




Upright ACME Translating screw Jack Applications

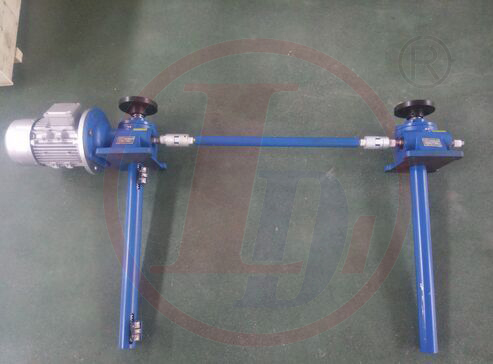

multiple screw jack arrangement

electric worm screw jack

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
electric worm gear screw jacks
Motorized Electric Screw Jack Actuators Price
Electric screw jack actuators  is a basis jack-up part, accomplish the functions such as lifting, drop, push and inverting through worm gear drives screw.
worm gear ball and acme screw jacks
Worm Gear Screw Jack with reducer and motor
Screw jack is used in applications where linear motion is required. Lifting of any load, pushing or pulling of mechanical equipment, adjusting of tight clearances of mechanical parts can be done by screw jacks.
electric worm gear screw jacks
Electric Machine Screw Lift for Sale
Screw jack/lift is a basis jack-up part, accomplish the functions such as lifting, drop, push  and inverting through worm gear drives screw.
electric worm crew jacks
Electric Machine Screw Jacks 20 ton
Electric machine screw jack,also called motorized machine screw jack, is very popular for lifting.
electric worm screw jacks
Motorized Machine Screw Jack 10ton
The motor for screw jack can be servo motor,AC motor or DC motor. Its load capacity can be from 2.5ton to 120ton.
Electric Screw Jack
Electric Screw Jack With Motor and RV Reducer
Screw jack is used in applications where linear motion is required. Lifting of any load, pushing or pulling of mechanical equipment, adjusting of tight clearances of mechanical parts can be done by screw jacks. Mechanical capacity of screw jacks is between 5kN and 2000kN, Jack screws can be used as linear motors, linear actuators, or mechanical lifts depending on type of motion. Working Principle of Screw Jacks Main components of screw jacks are: trapezoidal lifting screw, worm screw, worm gear and gear housing, Worm screw is rotated manually or by motor. Worm gear is rotated by worm screw. The lifting screw moves through the rotating worm gear. The linear motion speed of lifting screw depends on thread size and rotation ratio of worm gears.
acme handwheel screw jack
Screw Jacks SWL Series
SWL trapezoidal screw jack is suitable for low speed and low frequency. Lude Transmission trapezoidal screw jacks are designed and manufactured using innovative technology so to supply a product which identifies itself with the state of the art in the transmission devices.The screw jacks can be employed singularly or in groups properly connected with shafts, joints, and/or bevel gearboxes. Screw jack SWL series features: 1.Economical: compact design, easy operation, convenient maintenance. 2.Low speed and low frequency: Be suitable for heavy load, low speed, low service frequency. 3.Self-lock: Trapezoidal screw has self-lock function, it can hold up load without braking device when screw stops travelling .
crank table screw jack
Hand-operated Crank Table Lift Mechanism
Crank table is an common appliance of Hand-operated Screw Jack. We offer 2.5ton  and 5ton screw jack mechanism now.
