Worm Gear Screw jack with Supporting Base and Legs Feb 02 , 2016

When you need screw jack to rotate with the articles which need to be lifted,how to choose and install the worm gear screw jack? There is a kind of screw jack with supporting base and legs which can solve the above problem.

Support-mounted mode widely apply to tilting equipment.

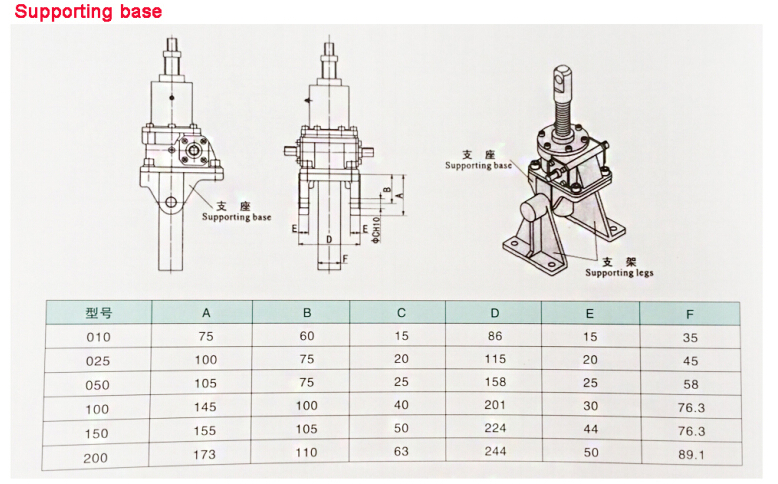

worm screw jack with supporting base and legs

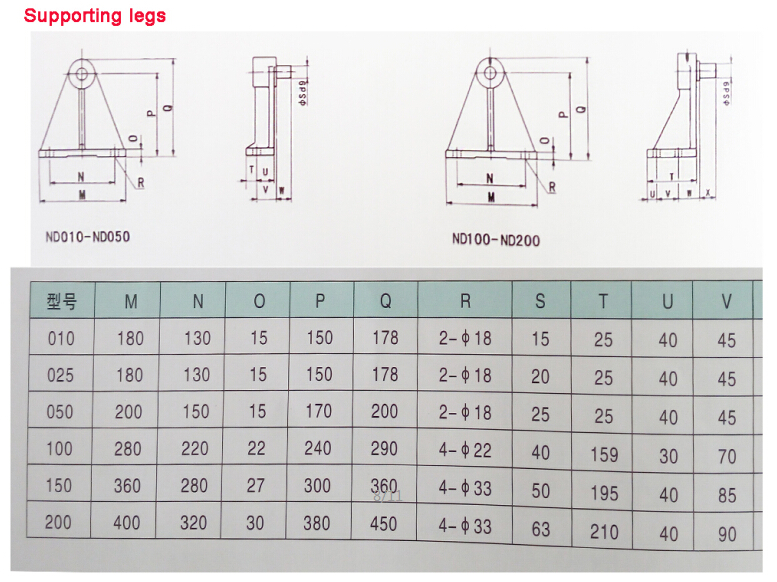

Matching support base and legs realizes multi-angles lifting and lowering.

According to customers' detailed needs,the above screw jack can be acme machine screw jack or ball screw jack or bevel gear screw jack. If you are interested in above information, please contact Lude Transmission fore more.
