Electric screw jack actuators is a basis jack-up part, accomplish the functions such as lifting, drop, push and inverting through worm gear drives screw.

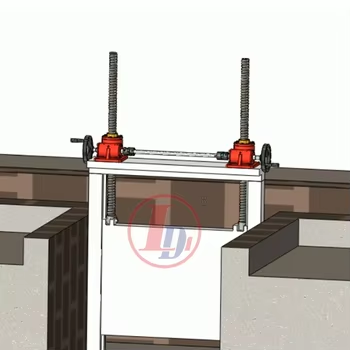

Two-set linkage screw jack system can be "L", I and T configuration. It usually consists bevel gearbox, screw jack, electric motor, gear reducer, hand wheel, pillow block bearing, jaw coupling, line shafting.
Screw jack lift system structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shaftings. Screw Jack System Features: 1. Heavy duty, self-locking, positioning precision, uniform lifting speed, fully synchronization, easy installation, easy operation 2. Two screw jacks system, three screw jacks system..forty screw jacks system. 3. Extremely high capacity requirements of need very precise up or down control. It's of high mechanical, they are an excellent choice when hydraulic, pneumatic or chain systems are prohibitive choices. 4. Widely used in wood working machines, plastics processing machines, textile machines, assembly equipment in the automobile and aircraft industries, food and beverage production equipment as well as packaging machines.
Four-set linkage screw jack system can be I and T configuration, transmission efficiency can be 85% .
Screw jack lift system structures include miter gearboxes, screw jacks, electric motor or gear reducer, hand wheel, pillow block bearings, jaw couplings and line shaftings.
Slewing drives are powered with hourglass worm technology for maximum gear torque and the smoothest rotation.
WE Series Slewing drive is combined by the curved tooth slewing ring and worm, gear and worms are more touch supply larger torque.
HD Series spiral bevel gearbox is hexahedron,which can fit different direction mounting.
Screw jack is used in applications where linear motion is required. Lifting of any load, pushing or pulling of mechanical equipment, adjusting of tight clearances of mechanical parts can be done by screw jacks.
High-speed lifting bevel gear screw jacks are partly completed machines and intended for installation in complete machines or to be used for assembly with a totality of machinery to create systems.The bevel gear transmission makes high lifting speeds and a high duty cycle possible.

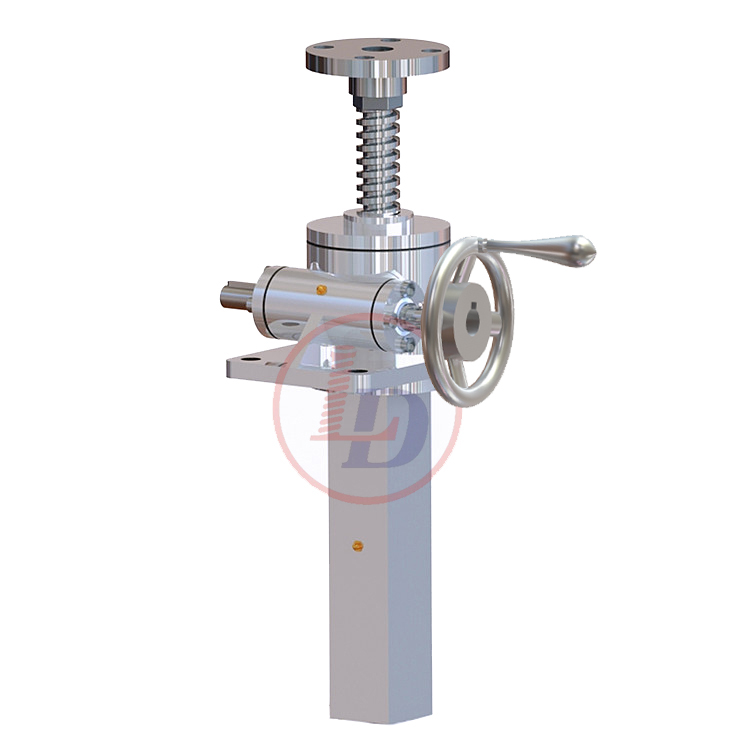

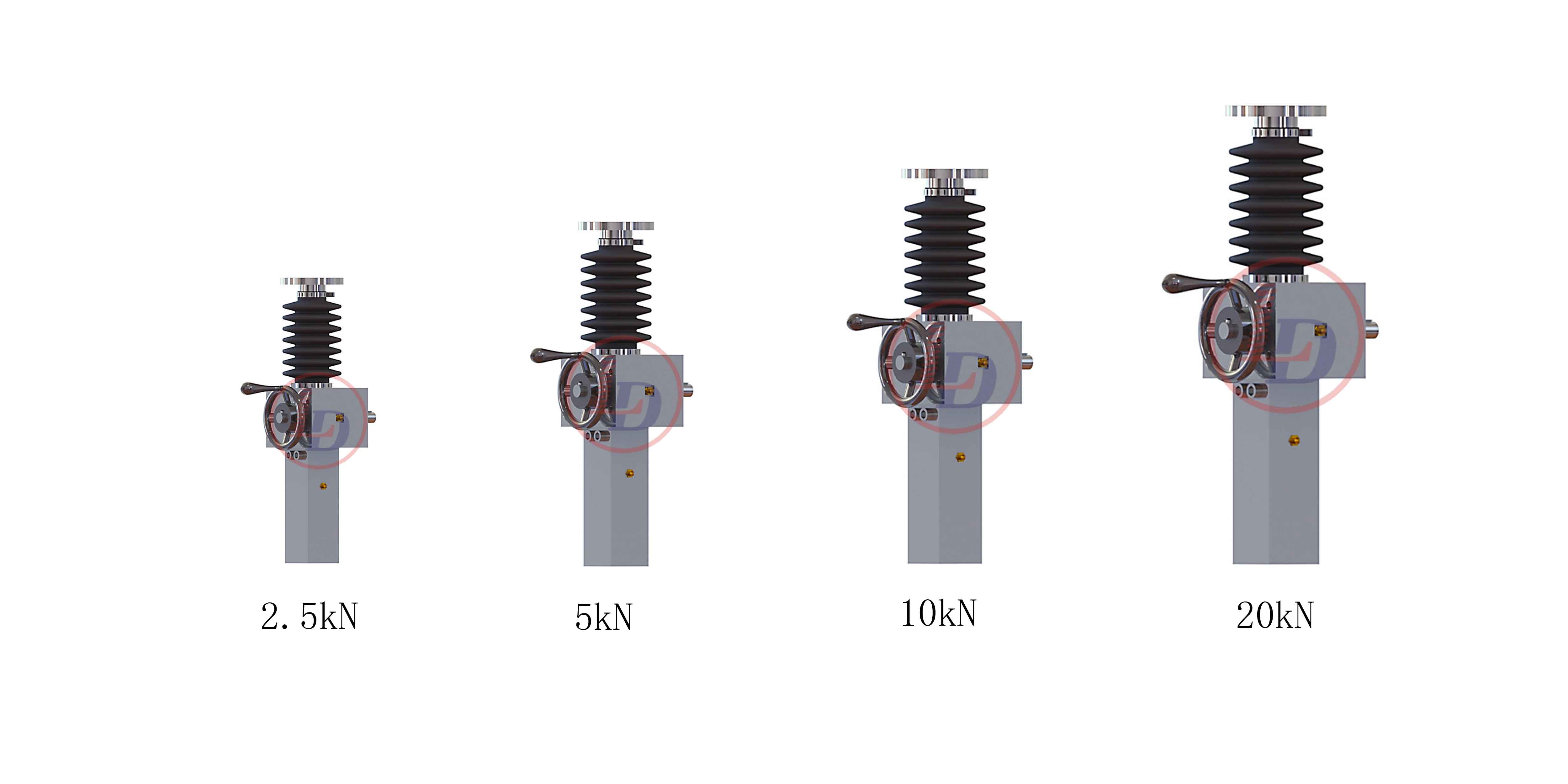

Worm Gear Machine Screws Jacks are common worm gear screw jacks,can be upright or inverted,with anti-rotation or self-locking functions.
An Electric Linear Actuator is an actuator that creates motion in a straight line, in contrast to the circular motion of a conventional electric motor.
T series bevel gearbox is standardized with many varieties. The deceleration ratio is 1:1, 1.5:1, 2:1, 2.5:1 and 3:1, which are all actual transmission ratios.
A Electric Linear Actuator is a mechanical device that converts energy (power from air, electricity or liquid) to create motion in a straight line.
An electric linear actuator is a device that converts the rotational motion of a motor into linear motion – that is push and pull movements.
