Hand Crank Screw Jack for Lifting Tables

Lifting table is an common appliance of Hand Crank Screw Jack . We offer 1ton, 2.5ton and 5ton screw jack mechanism.
  • Product origin:

    Dezhou
  • Color:

    Customized
  • Shipping port:

    Qingdao/Tianjin/Shanghai
  • Lead Time:

    20-30 days after payment received
follow us :
  • Product Details

  • Photo

Brief Instruction

Lifting table is an common appliance of Hand Crank Screw Jack . The screw jack mechanism includes two jacks, shaft,couplings and pillow blocks sometimes when shaft is very long. We offer 1ton,  2.5ton  and 5ton screw jack mechanism.

Let's see SWL2.5T as an example which is for a France customer.


Mechanism Parameters:
1.Load capacity:200kg

2.Worm ratio:6

3.Stroke:300mm

4.Screw size:40*7mm

5.distance between two jacks:1500mm


Mechanism Outline Drawing:

Hand Crank Screw Jack


Details Show

hand crank screw jack


More Hand Crank Screw Jack

If you need such hand crank screw jacks for tables,here are three questions for you:

1. what is the total load for the screw jack mechanism?

2.what is the central distance between two jacks?

3.what is the screw length?

Hand Crank Screw Jack

 With your answers, we can help you choose suitable model and send the drawing for final confirmation.

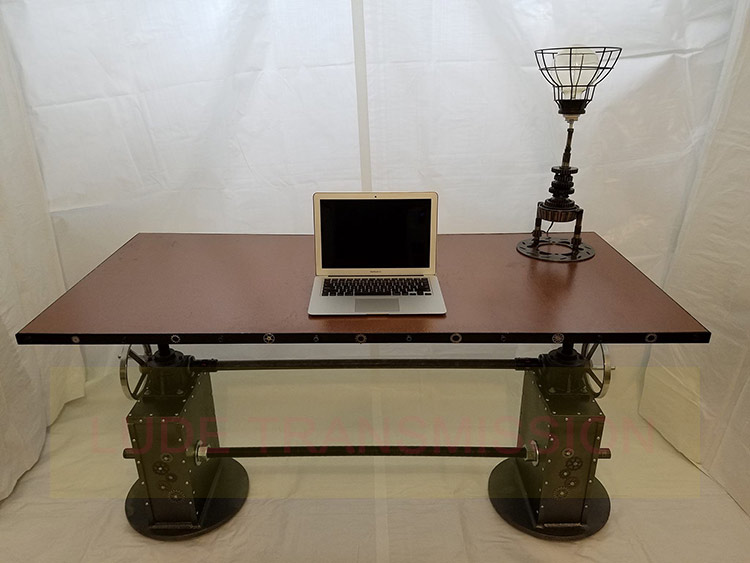

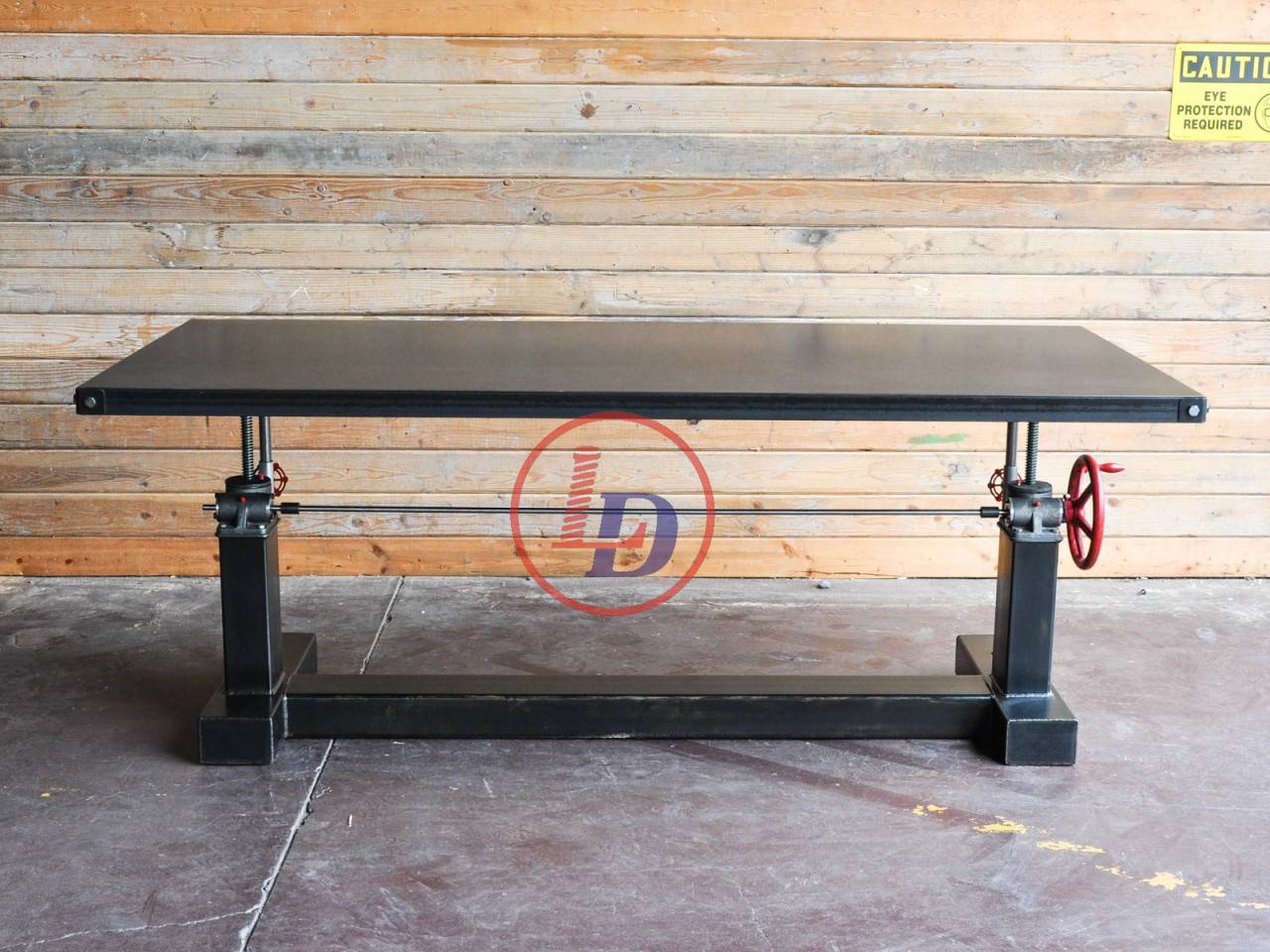

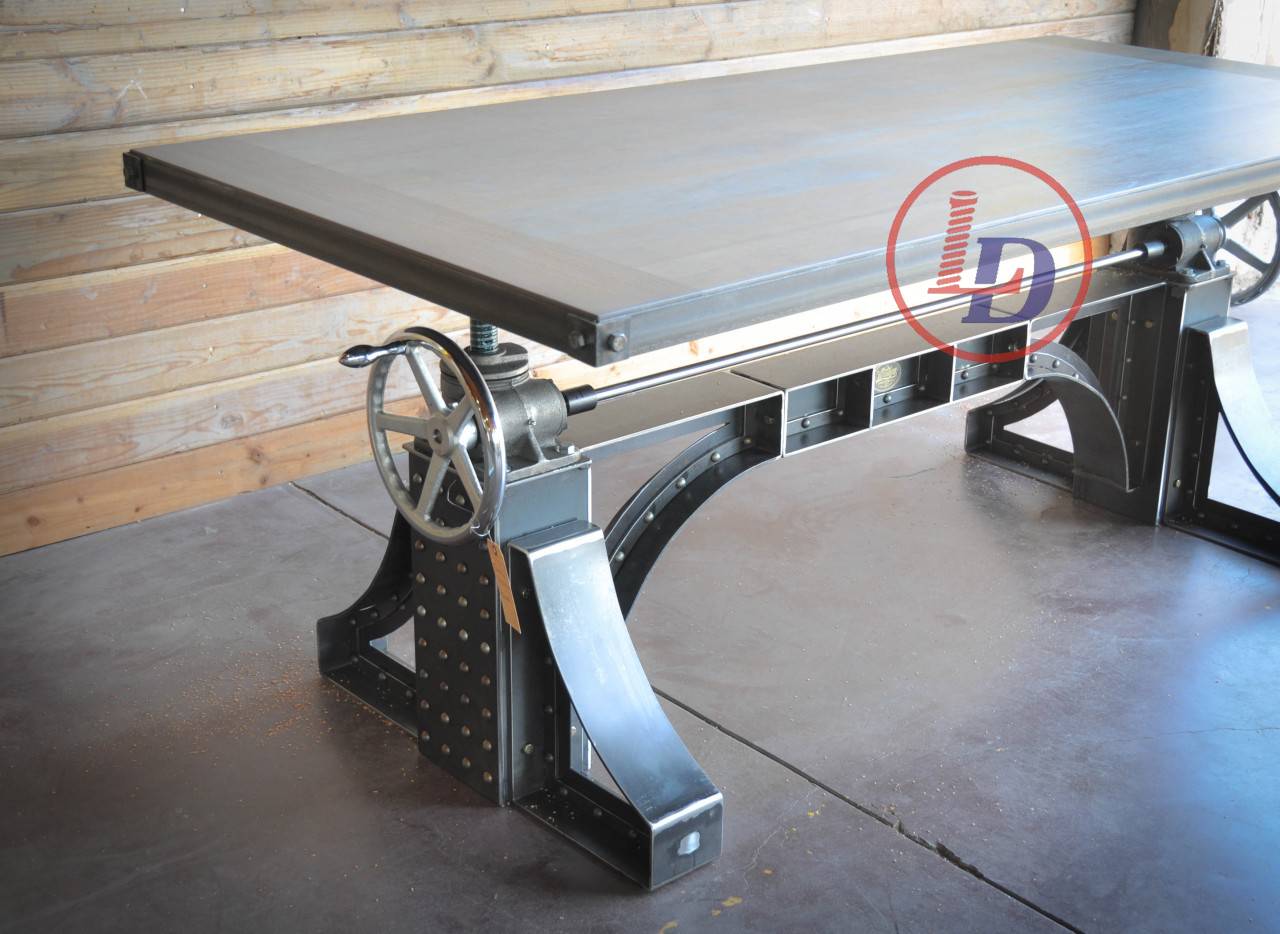

Application Scenarios for Lifting Tables with Hand Crank Screw Jack



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
machine lifting automatic screw jack
Screw Jacks JWM Series
Our trapezoidal screw jacks(also named acme screw jack) JWM series is suitable for low speed and low frequency.
acme handwheel screw jack
Screw Jacks SWL Series
SWL trapezoidal screw jack is suitable for low speed and low frequency. Lude Transmission trapezoidal screw jacks are designed and manufactured using innovative technology so to supply a product which identifies itself with the state of the art in the transmission devices.The screw jacks can be employed singularly or in groups properly connected with shafts, joints, and/or bevel gearboxes. Screw jack SWL series features: 1.Economical: compact design, easy operation, convenient maintenance. 2.Low speed and low frequency: Be suitable for heavy load, low speed, low service frequency. 3.Self-lock: Trapezoidal screw has self-lock function, it can hold up load without braking device when screw stops travelling .
manual worm gear screw jacks

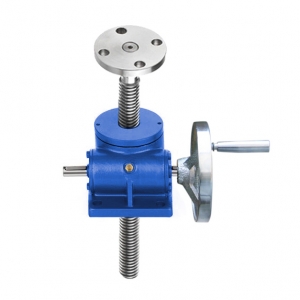

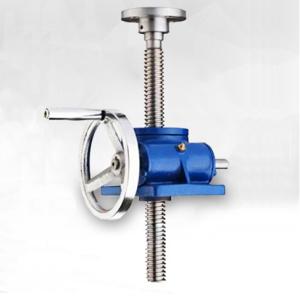

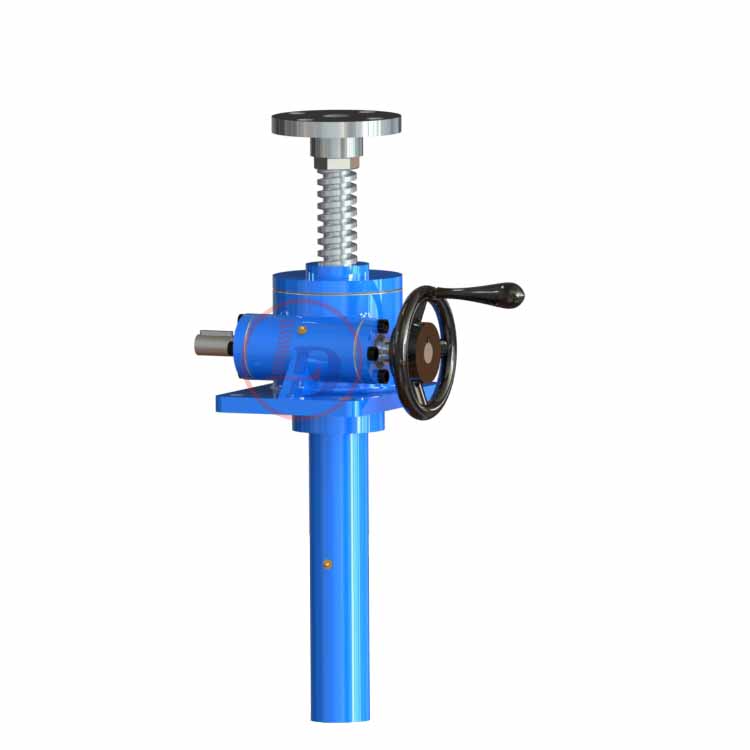

Hand Operated Lifting Screw Jacks
