What is a ball screw jack Mar 14 , 2019

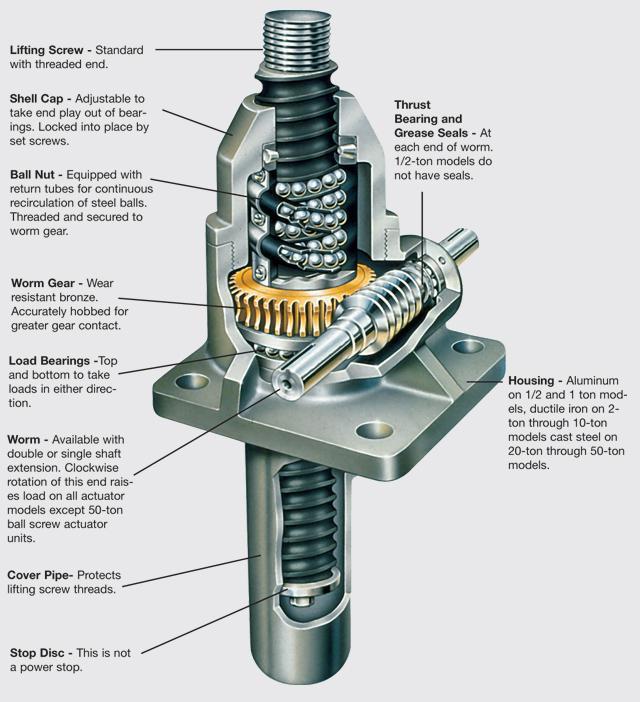

Ball Screw Jacks use a ball screw and nut made from hardened alloy steel with hardened bearing balls carrying the load between nut and screw. The significantly reduced friction between the ball nut and screw results in greater efficiency, with up to 2/3 less input torque required to move the load than a similarly rated machine screw jack.This rolling action reduces friction between the nut and the screw permitting smooth and efficient movement of the load. Because of the greater efficiency and rolling action, the ball screw can operate at higher speeds or increased duty cycle when compared with the acme screw jack.




Compared to acme screw jacks, ball screw jacks has some features:

• Require less motor horsepower

• Allow higher travel speed

• Provide an extended duty cycle

• Higher total efficiency

To know more about ball screw jacks , please click the link

https://www.ludetransmission.com/ball-screw-jacks_c17
