Rotating ball screw lifts JWB025 of worm ratio 6:1 Dec 18 , 2017

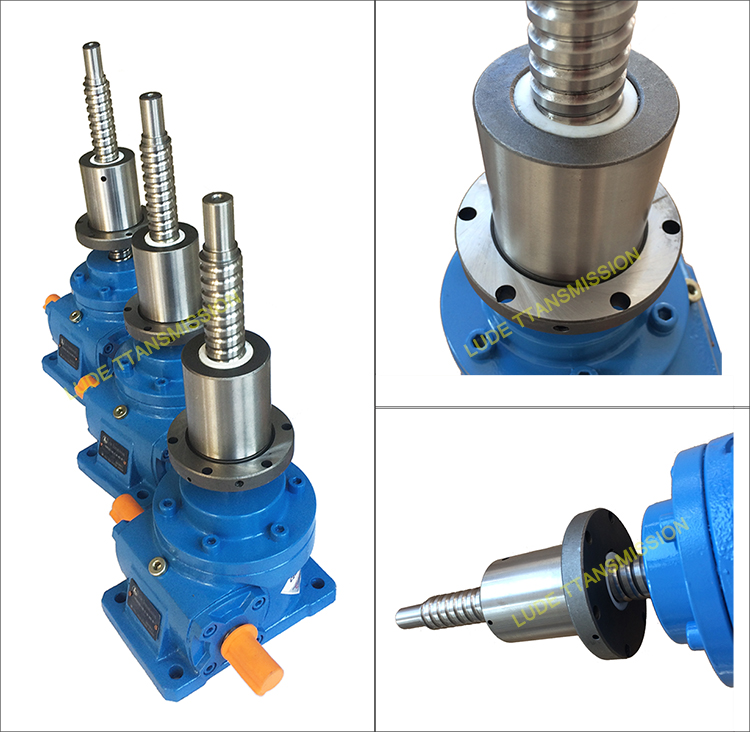

JWB025 Ball Worm Gear Screw Lift Picture

upright ball worm screw lift



JWB025 Ball Worm Gear Screw Jack Descriptions

1. Maximal Load: 24.5kN

2. Stroke: 85mm

3. Ball screw outer diameter : 25mm Ball screw inner diameter:21.4mm

4. Screw pitch: 8mm

5. Worm Ratio:6:1

6. Lift screw travel (mm), per turn of worm shaft (H: high ratio): 1.33mm

7. Efficiency %: 62

8. Permissible input torque (N.m) : 49

9. Max. Permissible input power (kw): 1.3

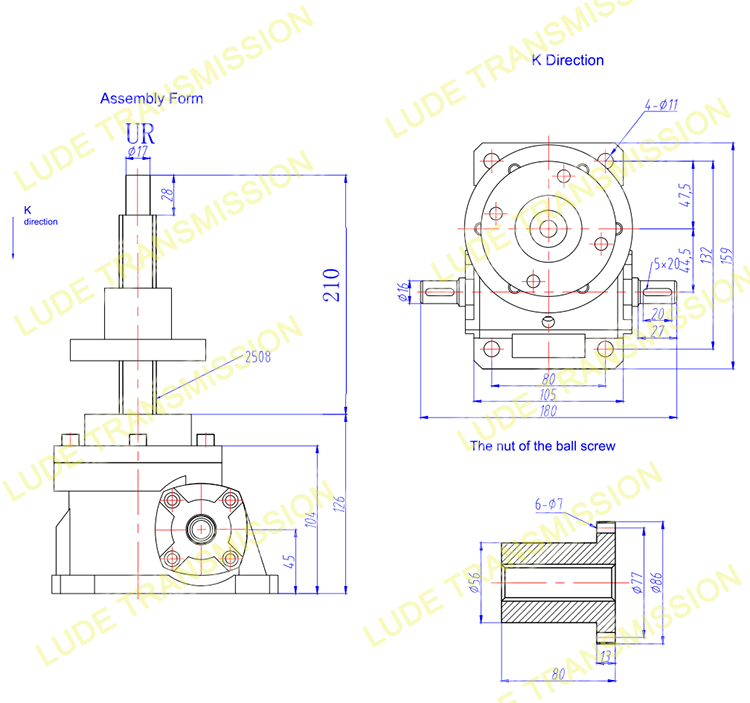

JWB025 Ball Screw Jack Dimensional Drawing

rotating ball screw jack


Ball Screw lifts Application

Ball screw lifts  in today's society has wide range of applications. The main fields are the medical industry, industrial industry,automatic equipment ,aerospace and so on.


Do you need ball screw jacks or like to know more about ball screw jack? Lude Transmission is a factory specialized in worm gear screw jack since 2001, trial order and OEM service is acceptable.

Welcome to contact us at ludetransmission@gmail.com to start our business!
